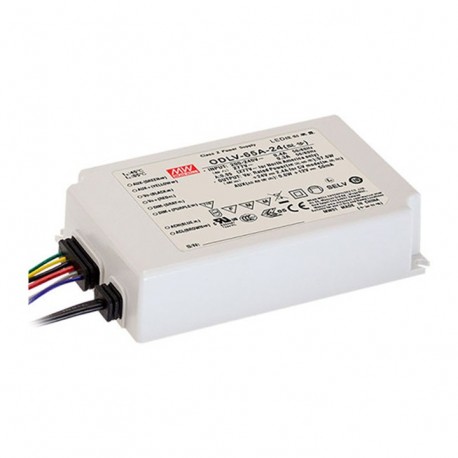

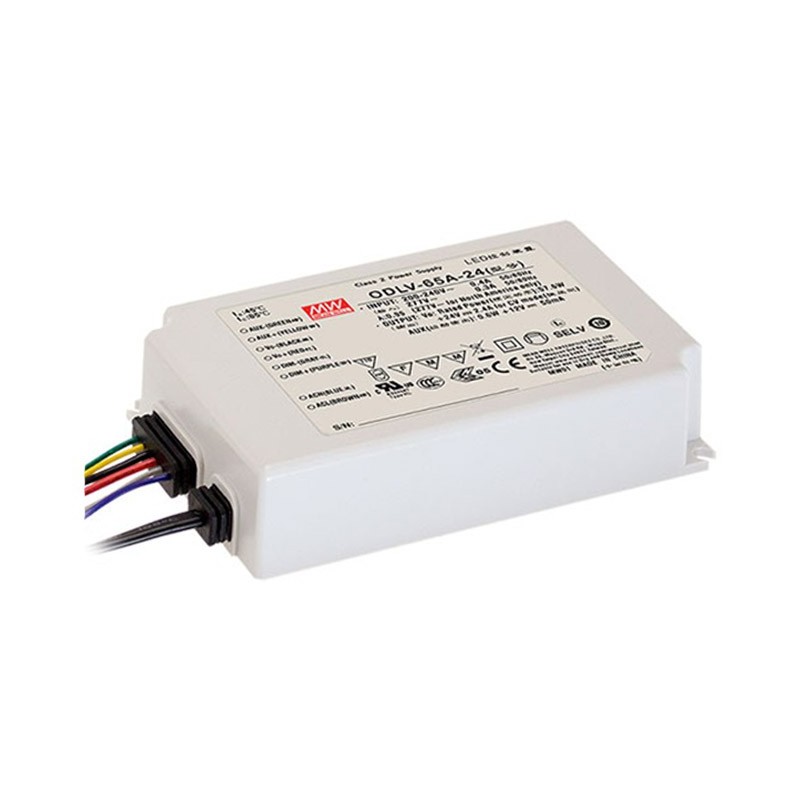

ODLV-65A-24
MEANWELL
1
AC-DC Constant Voltage LED Driver (CV) with PFC, Input range 180-295VAC, Output 24VDC / 2.4A, 2 in 1 dimming with 0-10VDC or PWM signal, Auxiliary output
LED DRIVERS
* Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Name | ODLV-65A-24 |
---|---|
Long Description | LED driver dimmable. Specially designed for the regulation of LED strips. Format in box waterproof plasticIP67. Input range180-295Vca47-63Hz. Output voltage24vdc. Output intensity2.4 A. Range of output current 0-2,4 according To the demand load. Power:57,6 W. Efficiency typical:87%. Regulation0% to 100% of the output intensity with a slider0-10V / 1-10Vor a PWM signal of 10V with a frequency of 100Hz to 3KHz. With the regulation we can turn off the output, but we need a regulator 0-10V. Regulators 1-10V not arrive to give 0V do not shut down the output. Input class II without grounding. Factor corrector, power>0.95to 230vac at full load. Outputauxiliary 12V/50mA. Consumption without load <1,2 W. Operating temperature range of caseTcfrom-20ºCup+85ºC. Dimensions (Length x Width x Height):121 x 77 x 28.5 mm 3 years of warranty. Manufacturer: MEAN WELL. The series ODLV are LED Drivers designed to work directly with LED strips. Must be equipment that is fed at constant voltage. The A version has an outputauxiliaryof12V/50mA.With plastic housing, watertight, designed for lighting applications in interior and exterior. Low ripple current, no flicker (flicker-free). These sources can be dimmed with dimmers assets or liabilities of0-10Vor1-10V, signal 10V PWM of 100Hz to 3KHz. Does not work with dimmers Triac dimmer cutting phase.(Not to be confused with regulators TRIACs, cutting phase. This driver cannot be regular with a Triac).With potentiometers assets that you can give 0V to shut down the output without the need of a switch. Dimmers 1-10V we can only reach 10% of regulation without shutting down the output. The output pulse can be regular any LED strip by small, is always to not overcome the maximum load of the driver. Compatible with any regulator 0-10V or 1-10V-market both assets and liabilities. Some compatible models tested are: MEAN WELL DAP-04S01 (compatible with any push button normally open). SIMON: 75317 BJC: 5TC8 425 LEGRAND: 0784 04 ABB- "NIESSEN": N2260.9 SIEMENS: 5TC8424 EFAPEL: Model 21210 LED BOX: Model LD1160188 OSRAM: Model DIM MCU JUNG: Model 240-10 We can put about 20 sources for each regulator. The maximum distance is 100 meters between the regulator and the driver. |
Country of Origin | China |
Manufacturer | MEAN WELL |
Product type | LED Driver |
Format | Box |
Subformato | IP67 |
Applications | Lighting |
Series | ODLV-65A |
State | New |
Warranty (Years) | 3,00 |
Height (mm) | 28.50 |
Width (mm) | 77.00 |
Long/Background | 121.00 |
Type of Entry CA | Single-phase |
AC input Min | 180,00 |
AC input Max | 295,00 |
Input frequency | 50 Hz, 60 Hz |
Input connector | Cable |
Output voltage | 24,00 |
Power (W) | 57,60 |
Peak Power (W) | 57.6 |
Dimming | 0-10V, 1-10V, PWM Signal 10V |
Output connector | Cable |
Isolation (V) | 3.750,00 |
Approvals | CCC, CE, ENEC, UL |
Title: | Size: | Type: |
---|---|---|
PDF CATALOGUE LED MEANWELL EN.pdf | 5 Mbytes | |
PDF CATALOGUE POWER SUPPLY MEANWELL EN.pdf | 7 Mbytes |
