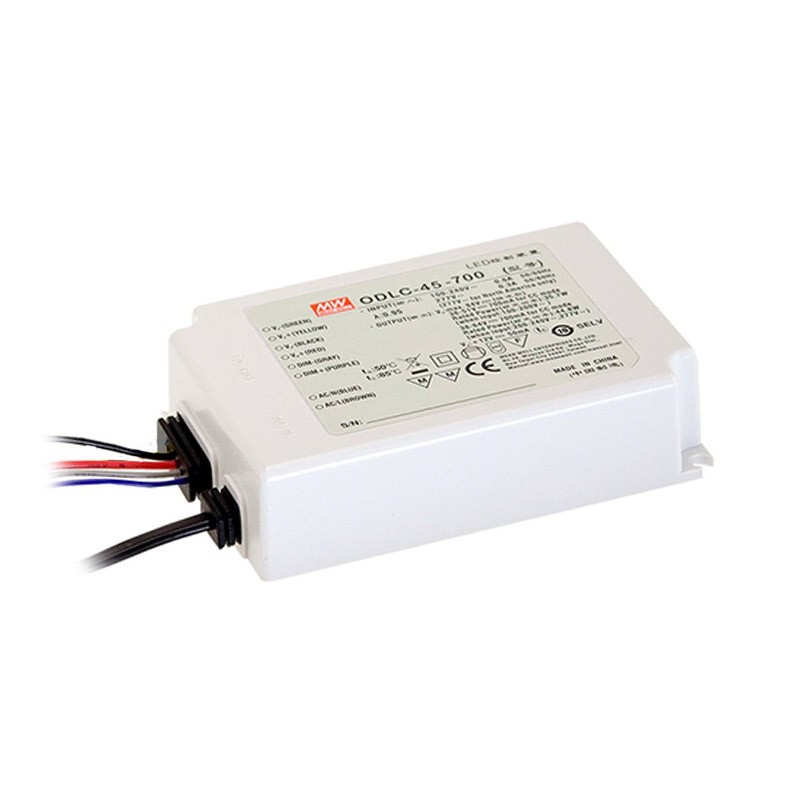

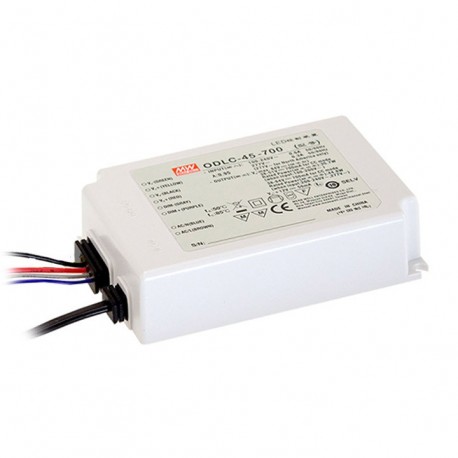

ODLC-45-700DA MEANWELL AC-DC Constant Current LED Driver (CC) with PFC, Output 64VDC / 0.7A, Dimming with DA..
Reference: ODLC-45-700DA
Manufacturer: MEANWELL
Description:
AC-DC Constant Current LED Driver (CC) with PFC, Output 64VDC / 0.7A, Dimming with DALI
Categories:
- MEANWELL > LED DRIVERS
Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
- More Info
- Reviews
* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
- These delivery times are an estimate any may vary when the item order has been processed.
MORE INFO
| Name | ODLC-45-700DA |
|---|---|
| Long Description | LED driver dimmable. Specially designed for powering LEDs directly in a steady stream. Format in box waterproof plasticIP67. Input range90-295Vca47-63Hz. Output in constant current700mA. Range of output voltage with current mode constant38 to 64Vccaccording to demand load. Power:44,8 W. Efficiency typical:85%. Regulation DALI0% to 100% of the output intensity. Certificate to DALI. Input class II without grounding. Factor corrector, power>0.92to 230vac at full load. Consumption without load <0.5 W. Operating temperature range of caseTcfrom-20ºCup+85ºC. Dimensions (Length x Width x Height):111 x 77 x 28.5 mm 3 years of warranty. Manufacturer MEAN WELL. The series ODLC are LED drivers designed to work directly with LEDs (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream. With plastic housing, waterproof IP67, designed for lighting applications in interior and exterior. Low ripple current, no flicker (flicker-free). This source works on a Constant Current when we connect the LEDs directly to have a voltage within the Range of Output Voltage mode Constant Current and a working current equal to the output current. Compatible with any system DALI. |
| Country of Origin | China |
| Manufacturer | MEAN WELL |
| Product type | LED Driver |
| Format | Box |
| Subformato | IP67 |
| Applications | Lighting |
| Series | ODLC-45-DA |
| State | New |
| Warranty (Years) | 3,00 |
| Height (mm) | 28.50 |
| Width (mm) | 77.00 |
| Long/Background | 111.00 |
| Type of Entry CA | Single-phase |
| AC input Min | 90,00 |
| AC input Max | 295,00 |
| Input frequency | 50 Hz, 60 Hz |
| Input connector | Cable |
| Intensity of Minimum Output (mA) | 700,00 |
| Intensity of Output Maximum (mA) | 700,00 |
| Output current mA | Seven hundred |
| Power (W) | 44,80 |
| Peak Power (W) | 44.8 |
| Dimming | DALI |
| Output connector | Cable |
| Isolation (V) | 3.750,00 |
| Approvals | CCC, CE, ENEC, UL |
