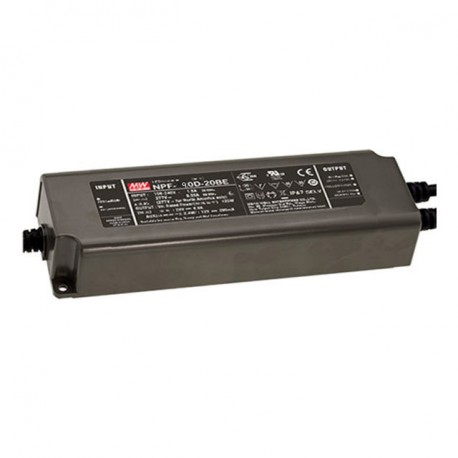

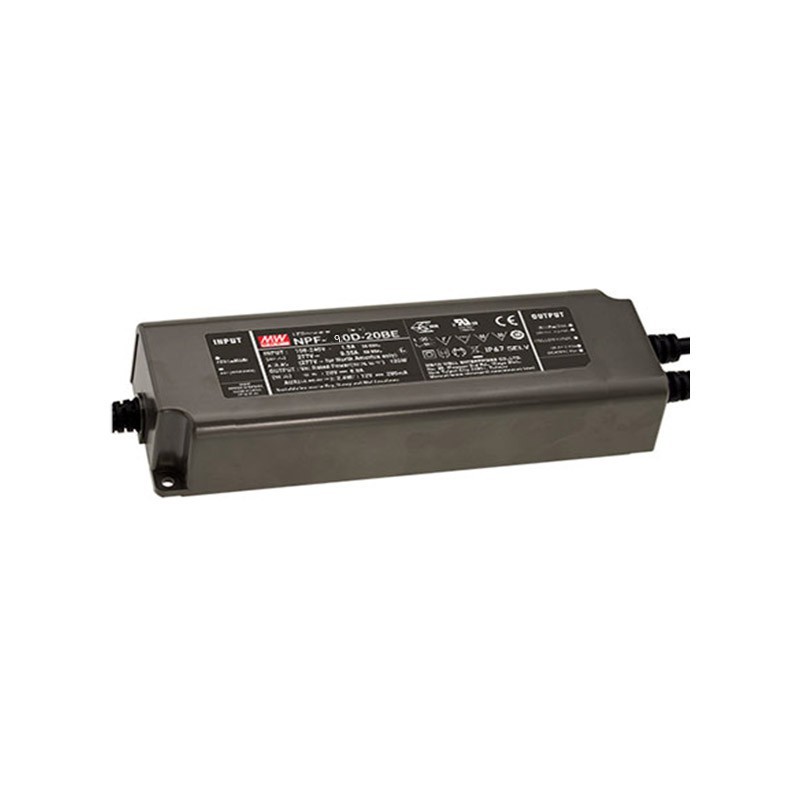

NPF-90D-12BE MEANWELL AC-DC Single output LED driver with Active PFC, Output 12VDC / 7.5A, 3 in 1 dimming fu..

LED driver dimmable.

Specially designed for powering LEDs directly in a steady stream.

Format in box waterproof plasticIP67.

Input range90-305Vca47-63Hz.

Output in constant current7,5 A.

Range of output voltage7.2 to 12vdcaccording to demade the load.

Power:90W.

Efficiency typical:88%.

Regulation0% to 100% of the output intensity with a slider0-10V / 1-10V,a PWM signal of 10V with a frequency of 100Hz to 3KHz or resistance of 0 to 100K Ohms. With the regulation we can turn off the output, but we need a regulator 0-10V. Regulators 1-10V not arrive to give 0V do not shut down the output.

Input class II without grounding.

Factor corrector, power>0,96to 230vac at full load.

Outputauxiliary 12V/200mA (it is not regulated, it can vary between 11.4 and is 12.6).

Consumption without load <0,50 W.

Operating temperature range of caseTcfrom-40ºCup+85ºC.

Dimensions (Length x Width x Height):171 x 63 x 37.5 mm

5 years of warranty.

Manufacturer: MEAN WELL.

This source is designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream. This version has an outputauxiliaryof12V/200mA(it is not regulated, it can vary between 11.4 and is 12.6).

This source can operate in either Constant Current when we connect the LEDs directly to have a voltage within the Range of Output Voltage mode Constant Current and a working current equal to the output current.

You can also work in voltage mode constant giving a fixed voltage of 12V if the load is powered at constant voltage and does not overcome the maximum output power.

With plastic housing, watertight, designed for lighting applications in indoor, decorative, architectural, signage, mobile (roads, screens...) or tunnel lighting. Suitable for damp and wet conditions. Approved HL Class I Division 2 for ex-zones in the US.

Can be adjusted by regulatory assets or liabilities0-10Vor1-10V, signal 10V PWM of 100Hz to 3KHz or by resistance of 0 to 100KOhmios. Does not work with dimmers Triac dimmer cutting phase.(Not to be confused with regulators TRIACs, cutting phase. This driver cannot be regular with a Triac).With potentiometers assets that you can give 0V to shut down the output without the need of a switch. Dimmers 1-10V we can only reach 10% of regulation without shutting down the output.

Compatible with any regulator 0-10V or 1-10V-market both assets and liabilities. Some compatible models tested are:

MEAN WELL DAP-04S01 (compatible with any push button normally open).

SIMON: 75317

BJC: 5TC8 425

LEGRAND: 0784 04

ABB- "NIESSEN": N2260.9

SIEMENS: 5TC8424

EFAPEL: Model 21210

LED BOX: Model LD1160188

OSRAM: Model DIM MCU

JUNG: Model 240-10

We can put about 20 sources for each regulator. The maximum distance is 100 meters between the regulator and the driver.
