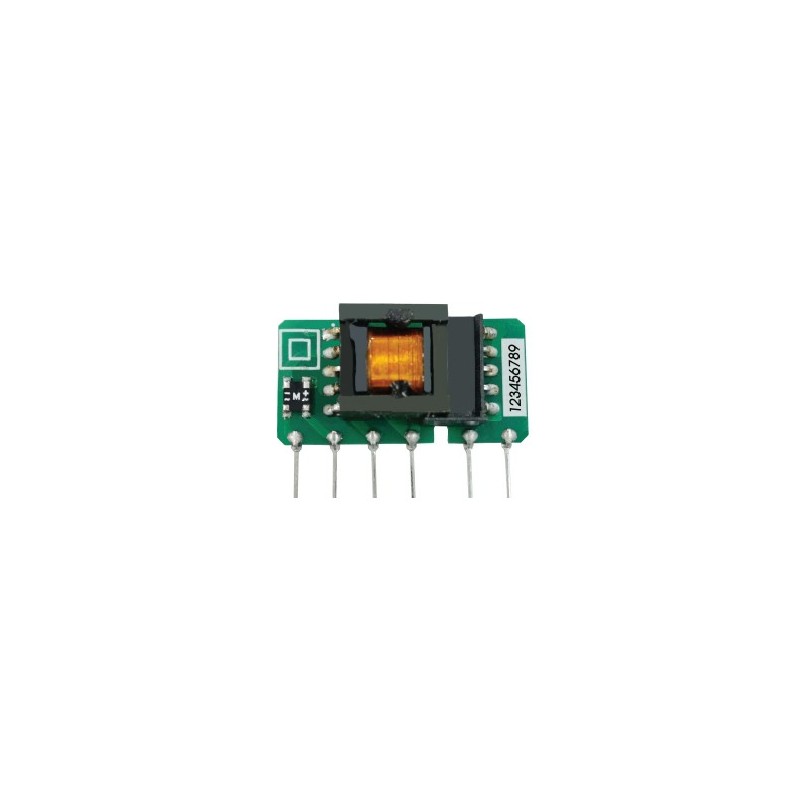

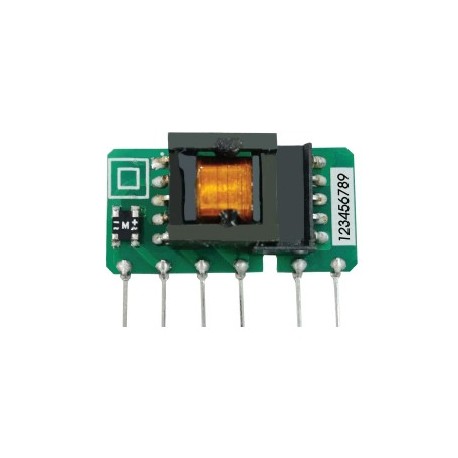

LS03-15B03SR2S MEANWELL AC-DC Switching power supply for PCB, Input: 85-305VCA, Output: 3,3VCC, 0,6A.Power: ..
LS03-15B03SR2S
MEANWELL
AC-DC Switching power supply for PCB, Input: 85-305VCA, Output: 3,3VCC, 0,6A.Power: 1,98W
ADAPTERS > AC plug
Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
Best sellers
▲More info
▲| Name | LS03-15B03SR2S |
|---|---|
| Long Description | Switching Power supply for Printed Circuit board. Range of Universal Input85-305Vca47-63Hz. Output voltage3.3 Vdc. Output intensity0,6 A.Range of output current 0-0,6 according To the demand load. Power:1,98 W. Dimensions (Length x Width x Height) [mm]:35 x 18 x 11. 3 years warranty. Manufacturer: MORNSUN. Certificates CE, UL and RoHS. The series LS03-15BxxSR2S(-F) are sources of compact size to integrate on-board by soldering its pins into the holes of the PCB. It has a compact size, range, universal input, low consumption without load, high efficiency and reliability. It has protection against over loads, short circuits and over-voltage output. It is necessary to add external components as recommended in the technical data sheet to comply with the requirements of electromagnetic compatibility. We also need to connect a capacitor C1 between pins 7 and 10 for the font to work correctly. Please see the datasheet in the section "ATTACHMENTS". |
| Country of Origin | China |
| Manufacturer | MORNSUN |
| Product type | Power supply AC/DC |
| Format | For Printed Circuit |
| Subformato | SIP |
| Applications | Industrial, Instrumentation, Telecommunications |
| Series | LS03-15BxxSR2S(-F) |
| State | New |
| Warranty (Years) | 3,00 |
| Height (mm) | 11.00 |
| Width (mm) | 18.00 |
| Long/Background | 35.00 |
| Type of Entry CA | Single-phase |
| AC input Min | 85,00 |
| AC input Max | 305,00 |
| Input frequency | 50 Hz, 60 Hz |
| Input connector | Pin |
| Output voltage | 3,30 |
| Power (W) | 1,98 |
| Peak Power (W) | 1.98 |
| Output connector | Pin |
| Isolation (V) | 3.000,00 |
| Approvals | CE, UL |
