MEANWELLG2LRSLRS-35-12 MEANWELL AC-DC Single output enclosed power supply, Universal AC input, Output 12VDC / 3A, Up to 5..

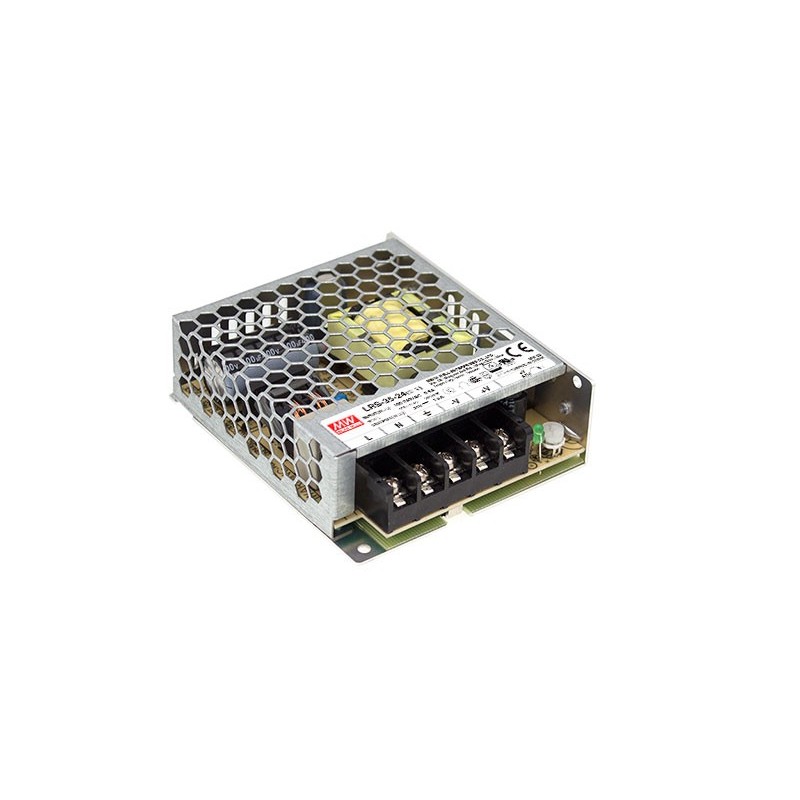

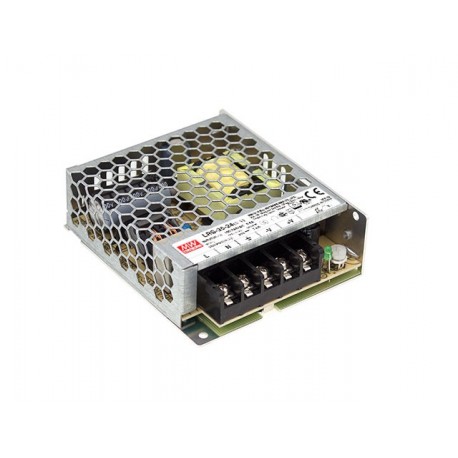

MEANWELL LRS-35-12 LRS-35-12 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

LRS-35-12 MEANWELL AC-DC Single output enclosed power supply, Universal AC input, Output 12VDC / 3A, Up to 5..

Reference: LRS-35-12

Manufacturer: MEANWELL

Description:

AC-DC Single output enclosed power supply, Universal AC input, Output 12VDC / 3A, Up to 5G Vibration, 1U low profile

Categories:

  • MEANWELL > G2 > LRS

Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 12,36 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 1-2 Days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

NameLRS-35-12
Long Description

Switch mode power supply.

Compact size.

Format in box grid.

Range of universal input85-264vac47-63Hz.

Output voltage12vdc. Adjustable by potentiometer (10,2-13,8 Vdc).

Output intensity3A. Range of output current 0-3A according to demand load.

Power:36W.

Efficiency typical:86%.

Working temperature: from-30ºCup+70 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift.

Consumption without load <0,2 W.

Dimensions (Length x Width x Height):99 x 82 x 30mm.

3 years warranty.

Manufacturer: MEAN WELL.

Series LRS are sources of power in case grid size compact (profile 1U) for applications in industrial, automotive, mechanical equipment and household electrical appliances. Can operate in altitudes above 5000 meters (see the curve for temperature drift).

Allows you to mounting plate, wall or DIN rail mounting with the accessory KDIN.

Country of OriginChina
StockYes
ManufacturerMEAN WELL
Product typePower supply AC/DC
FormatBox
SubformatoGrid
ApplicationsAppliances, Industrial, Telecommunication
SeriesLRS-35-12/15/36/48
StateRecommended Model
Warranty (Years)3,00
Height (mm)30.00
Width (mm)82.00
Long/Background99.00
Type of Entry CASingle-phase
AC input Min85,00
AC input Max264,00
Input frequency50 Hz, 60 Hz
Input connectorScrew-Type
Output voltage12,00
Power (W)36,00
Peak Power (W)Thirty six
Output connectorScrew-Type
Isolation (V)3.750,00
ApprovalsEN60601 3rd Edition
