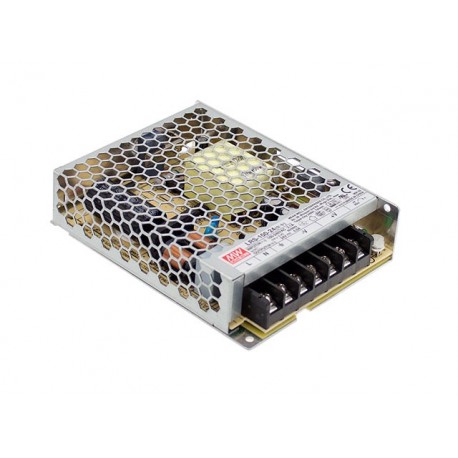

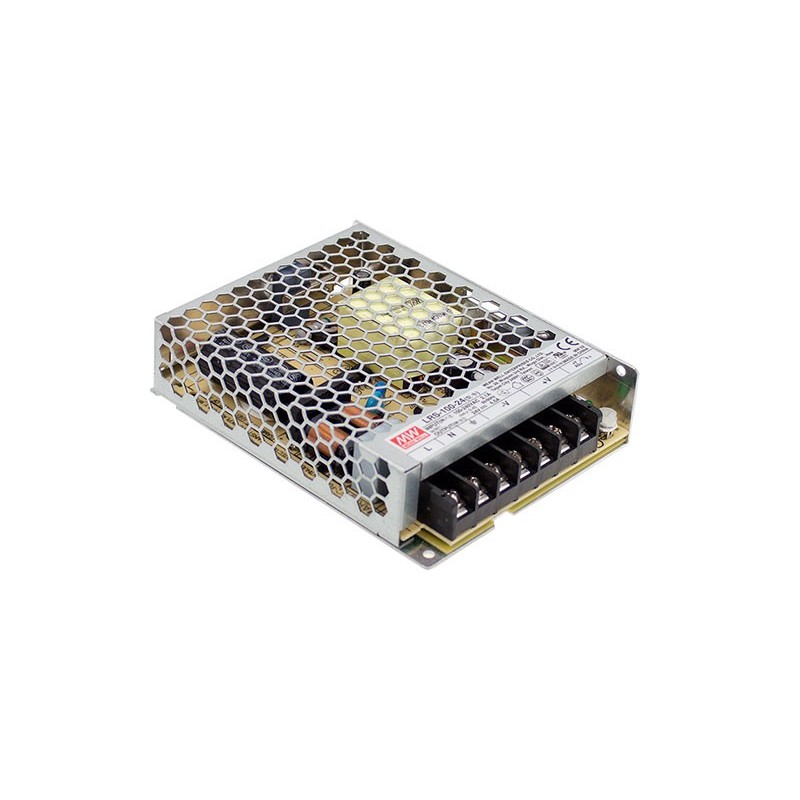

LRS-100-24 MEANWELL AC-DC Single output enclosed power supply, Universal AC input, Output 24VDC / 4.5A, Up t..
LRS-100-24
MEANWELL
AC-DC Single output enclosed power supply, Universal AC input, Output 24VDC / 4.5A, Up to 5G Vibration, 1U low profile
G2 > LRS
Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
Often bought together
▲Best sellers
▲More info
▲| Name | LRS-100-24 |
|---|---|
| Long Description | Switch mode power supply. Compact size. Format in box grid. Range of universal input85-264vac47-63Hz. Output voltage24vdc. Adjustable by potentiometer (21,6-28,8 Vdc). Output intensity4.5 To. Range of output current 0-4,5 according To the demand load. Power:108W. Efficiency typical:90%. Working temperature: from-30ºCup+70 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift. Consumption without load <0,3 W. Dimensions (Length x Width x Height):129 x 97 x 30mm. 3 years warranty. Manufacturer: MEAN WELL. Series LRS are sources of power in case grid size compact (profile 1U) for applications in industrial, automotive, mechanical equipment and household electrical appliances. Can operate in altitudes above 5000 meters (see the curve for temperature drift). Allows you to mounting plate, wall or DIN rail mounting with the accessory KDIN. |
| Country of Origin | China |
| Stock | Yes |
| Manufacturer | MEAN WELL |
| Product type | Power supply AC/DC |
| Format | Box |
| Subformato | Grid |
| Applications | Appliances, Industrial, Telecommunication |
| Series | LRS-100-24 |
| State | Recommended Model |
| Warranty (Years) | 3,00 |
| Height (mm) | 30.00 |
| Width (mm) | 97.00 |
| Long/Background | 129.00 |
| Type of Entry CA | Single-phase |
| AC input Min | 85,00 |
| AC input Max | 264,00 |
| Input frequency | 50 Hz, 60 Hz |
| Input connector | Screw-Type |
| Output voltage | 24,00 |
| Power (W) | 108,00 |
| Peak Power (W) | One hundred eight |
| Output connector | Screw-Type |
| Isolation (V) | 3.750,00 |
| Approvals | CCC, CE, UL |
