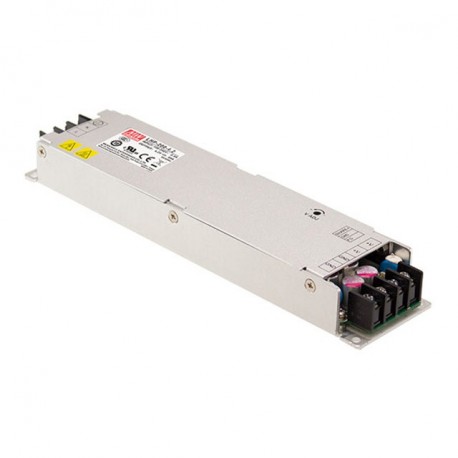

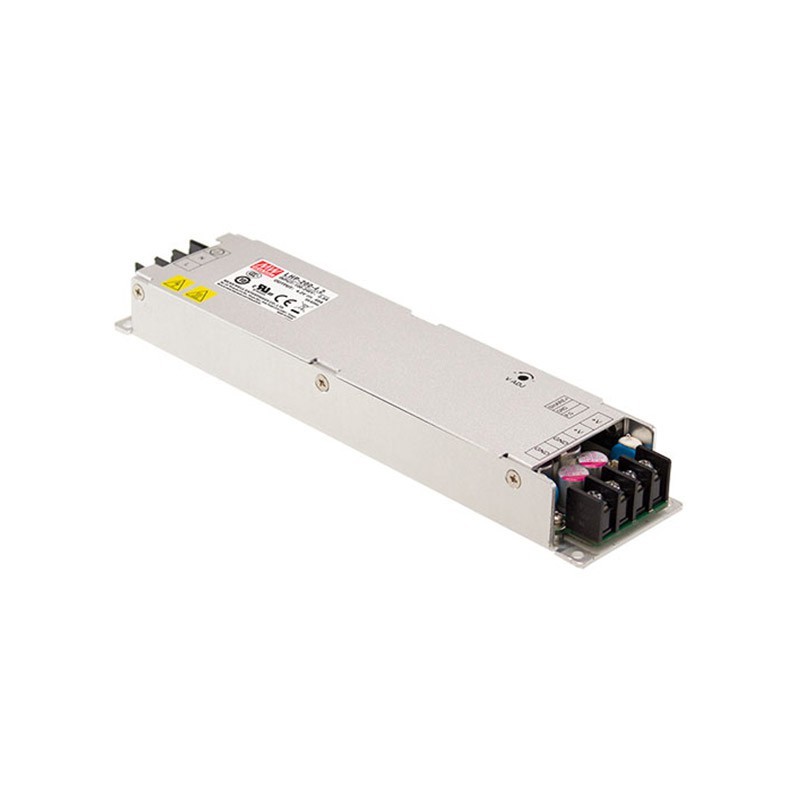

LHP-200-5 MEANWELL AC-DC Single output enclosed power supply with PFC, Output 5VDC / 40A, Low profile, Fanle..

Switching power supply for LED panels.

Specially designed to feed panels of LED signage.

Format in metal box.

Input range90-264vac47-63Hz.

Output voltage5vdc. Adjustable by potentiometer (4,5-5vdc).

Output intensity40A. Range of output current 0-40A according to demand load.

Power:200W.

Efficiency typical:91%.

Factor corrector, power>0,95to 230vac at full load.

Protection against short circuit, over load, over voltage and temperature.

Input class I with grounding.

Low leakage current<0.1 mA.

Operating temperature range of caseTcfrom-40up+80ºC.

Dimensions (Length x Width x Height):220 x 50 x 26mm.

3 years of warranty.

Manufacturer: MEAN WELL.

The series LHP are sources with metal box especially designed for panels of LED signage with output voltages very low. Its design simplifies the installation process Has a high efficiency and energy saving.Support input voltages of 300Vca for 5 seconds and use components of the highest reliability. Support peak loads of up to 150%, during 100ms, which allows you to start heavy loads or withstand spikes without the need to oversize the power source. Have a power LED.Have multiple protections (short circuit, overload, over voltage and temperature).

The series LHP these sources are robust and reliable, with high efficiency for all types of LED panels.
