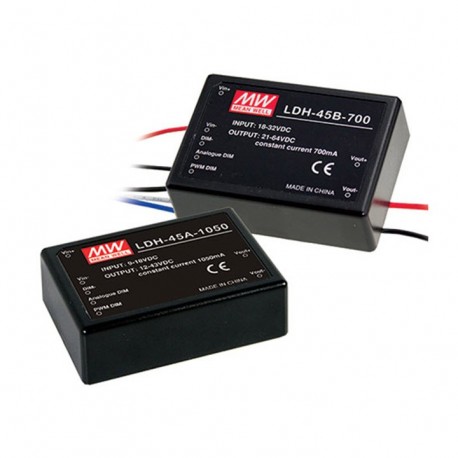

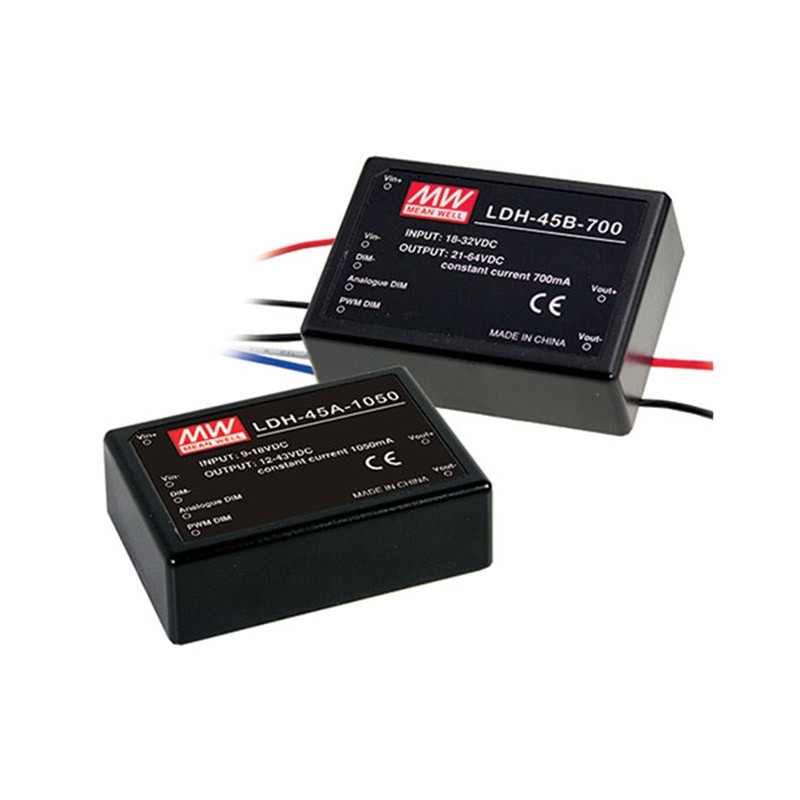

LDH-45B-700DA MEANWELL DC-DC Step up LED driver Constant Current (CC), Input 18-32VDC, Output 0.7A / 12-64VD..
LDH-45B-700DA
MEANWELL
DC-DC Step up LED driver Constant Current (CC), Input 18-32VDC, Output 0.7A / 12-64VDC, PCB through hole, PWM + analog dimming, Remote ON/OFF
LED DRIVERS > LDH
Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
Best sellers
▲More info
▲| Name | LDH-45B-700DA |
|---|---|
| Long Description | LED driver input and continuous output in a steady stream. Specially designed for applications of solar street lights powered from battery. Format in box with connection pins. Input rangeEighteen-32Vcc. Output in constant current700mA. Range of output voltage with current mode constantThirty sixto 64Vccaccording to demand load. The output voltage should be at least 12V higher than the input voltage. Power:44,8 W. Efficiency typical:95%. Regulation DALI0% to 100% of the output intensity. Certificate to DALI. Input class II without grounding. Consumption at no load in 7th in off mode. Operating temperature range of caseTcfrom-40ºCup+70ºC. Dimensions (Length x Width x Height):75 x 53 x 22,7 mm 3 years of warranty. Manufacturer: MEAN WELL. The series LDH-45DA are current regulators designed to feed the leds from a battery or dc voltage. These teams have regulation DALI, compatible with any system DALI. This series are lifts voltage (design boost or step-up) that raise the input voltage to an output voltage higher while keeping the output current constant. It is very important to consider that the supply voltage of the leds should be at least 12V above the voltage of power supply. |
| Country of Origin | China |
| Manufacturer | MEAN WELL |
| Product type | LED Driver |
| Format | Box |
| Subformato | Encapsulated |
| Applications | Lighting, Solar |
| Series | LDH-45DA |
| State | Recommended Model |
| Warranty (Years) | 3,00 |
| Height (mm) | 22.70 |
| Width (mm) | 53.00 |
| Long/Background | 75.00 |
| Range DC Input | 18, 19, 22,5, 24, 25,2, 28, 28,8, 30, 31,2, 32 |
| Input connector | Pin |
| Output current mA | Seven hundred |
| Power (W) | 44,80 |
| Peak Power (W) | 44.8 |
| Dimming | DALI |
| Output connector | Pin |
| Approvals | EC |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LED MEANWELL EN.pdf | 7 Mbytes |
|
| PDF CATALOGUE POWER SUPPLY MEANWELL EN.pdf | 9 Mbytes |
|
