LDH-45A-1050WDA
MEANWELL
1

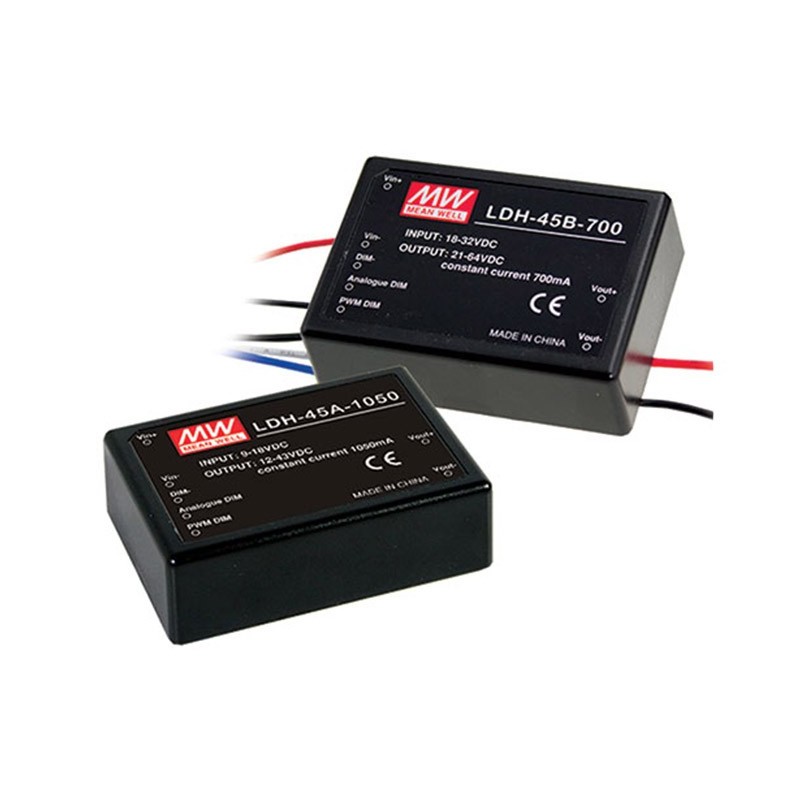

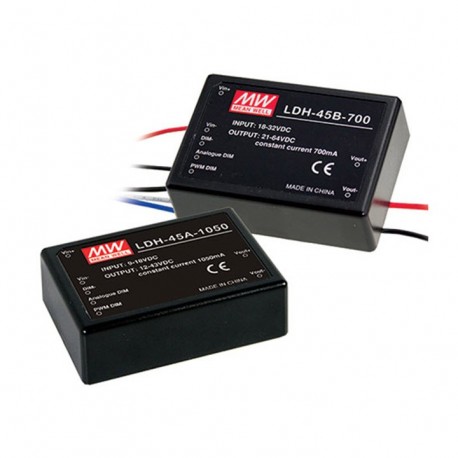

DC-DC Step up LED driver Constant Current (CC), Input 9-18VDC, Output 1.05A / 12-43VDC, Wired input-output, DALI dimming, Remote ON/OFF
LED DRIVERS > LDH
* Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Name | LDH-45A-1050WDA |
---|---|
Long Description | LED driver input and continuous output in a steady stream. Specially designed for applications of solar street lights powered from battery. Format in box with connection cables. Input rangeNine-18vdc. Output in constant current1050mA. Range of output voltage with current mode constantTwenty fourto 43Vccaccording to demand load. The output voltage should be at least 12V higher than the input voltage. Power:45,1 W. Efficiency typical:91%. Regulation DALI0% to 100% of the output intensity. Certificate to DALI. Input class II without grounding. Consumption at no load in 7th in off mode. Operating temperature range of caseTcfrom-40ºCup+70ºC. Dimensions (Length x Width x Height):75 x 53 x 22,7 mm 3 years of warranty. Manufacturer: MEAN WELL. The series LDH-45 are current regulators designed to feed the leds from a battery or dc voltage. These teams have regulation DALI, compatible with any system DALI. This series are lifts voltage (design boost or step-up) that raise the input voltage to an output voltage higher while keeping the output current constant. It is very important to consider that the supply voltage of the leds must be at least 3V higher than the supply voltage. |
Country of Origin | China |
Manufacturer | MEAN WELL |
Product type | LED Driver |
Format | Box |
Subformato | Encapsulated |
Applications | Lighting, Solar |
Series | LDH-45WDA |
State | Recommended Model |
Warranty (Years) | 3,00 |
Height (mm) | 22.70 |
Width (mm) | 53.00 |
Long/Background | 75.00 |
Range DC Input | 9, 9,2, 10, 10,5, 10,8, 12, 13,5, 14, 14,4, 15, 16,2, 16,5, 16,8, 18 |
Input connector | Cable |
Output current mA | One thousand fifty |
Power (W) | 45,10 |
Peak Power (W) | 45.1 |
Dimming | DALI |
Output connector | Cable |
Approvals | EC |
Title: | Size: | Type: |
---|---|---|
PDF CATALOG MEANWELL EN.pdf | 10 Mbytes |
