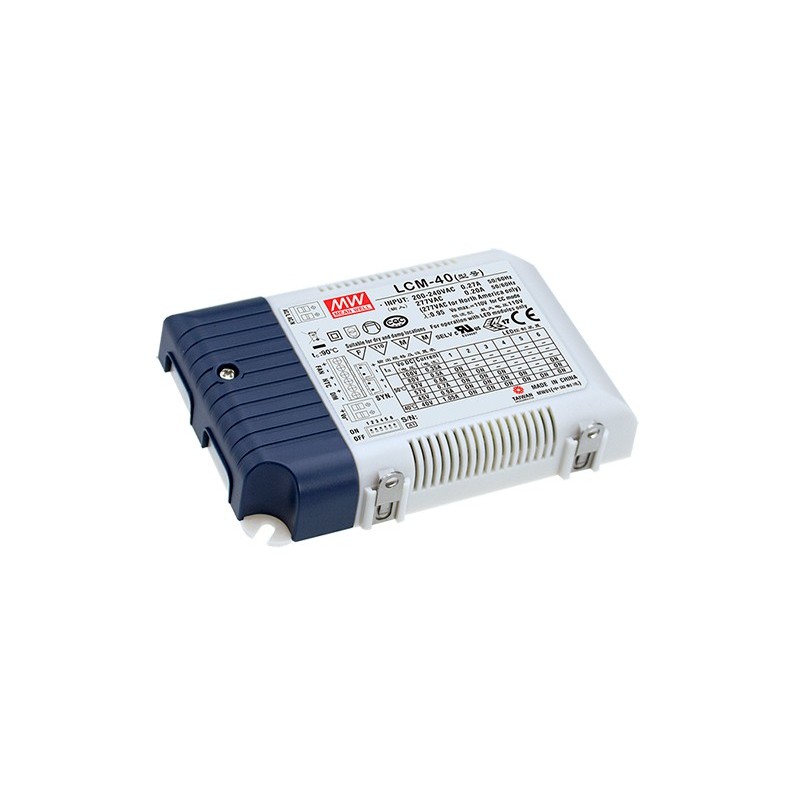

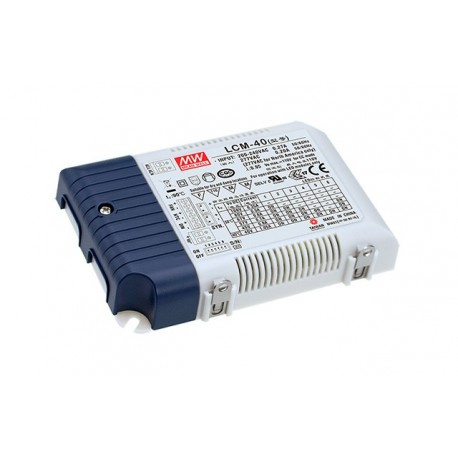

LCM-40EO MEANWELL AC-DC Multi-Stage LED driver Constant Current (CC) Active PFC, Output 0.35A/0.5A/0.6A/0.7A..

LED driver dimmable wireless EnOcean.

Specially designed for powering LEDs directly in a steady stream.

Format in plastic boxIP20.

Input range180-295Vca47-63Hz.

Current output selectable by micro-switch350, 500, 600, 700, 900 or 1050mA.

Efficiency typical:91%.

Regulationwireless EnOcean0% to 100% of the output intensity.

With the regulation we can turn on, turn off and regulate the output without the need for cables.

Regulation0% to 100% of the output intensity with a sliderZero-10V or 1-10V, a PWM signal of 10V with a frequency of 100Hz to 3KHz or resistance of 0 to 100K Ohms. With the regulation we can turn off the output, but we need a regulator 0-10V. Regulators 1-10V not arrive to give 0V do not shut down the output.

Synchronization: we can sync up10 unitsvia the wires LCM-xxx-SYNC in such a way that by regulating a source other do the same regulation without the need to be connected to the system EnOcean.

Input class II without grounding.

Factor corrector, power>0,975to 230vac at full load.

Operating temperature range of caseTcfrom-30ºCup+60ºC.

Dimensions (Length x Width x Height):123,5 x to 81.5 x 23mm.

3 years of warranty.

Manufacturer: MEAN WELL.

This source is designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream.

This source works on a Constant Current when we connect the LEDs directly to have a voltage within the Range of Output Voltage mode Constant Current and a working current equal to the output current.Be sure to adjust the output current desired using the selector outlet.
For more information please see the datasheet in the section attachments.

This version (EO) is determined by the wireless systemEnOcean. EnOcean is an open protocol wireless. One of the main features is that the buttons to make the regulation does not even require batteries or power. With the force of the mechanical pulse, when you press the button, it sends a signal that feeds the drivers LCM-EO and allows you to turn on, turn off and regulate the lighting fixture. This system is ideal for the renovation of facilities, not having to perform any type of wiring. In open conditions, the wireless communication can reach up to 300 feet away, with walls and other obstacles, and this distance can be reduced but we can also use the drivers LCM-EO as repeaters for the signal to reach longer distances. In addition to the buttons there are different sensors that can be integrated into the system EnOcean as presence sensors, lighting, remote controls, etc., The fonts LCM-EO can be configured using a button or can be paired with the push-buttons and accessories using a programmer EnOcean USB. In this way we can install the drivers and then configure them. The software allows setting different parameters such as brightness level in the power-on, time off, or level off to presence sensors as well as ramps of regulation and another series of parameters.

With plastic housing, designed for applications of LED lighting. Suitable for indoor lighting, modern constructions and intelligent or buildings-houses refurbished for not rewiring, stairs (with two buttons on the same switch) and outdoor applications.Low ripple current, no flicker (flicker-free).

Input for protection by temperature of the LED modules. The driver has an input to connect a NTC sensor (resistance of a negative coefficient) which allows us to reduce the output current in case of excess of temperature in the LED modules. If we're not going to use this input protection, we can use it to connect a fixed resistor and adjust the output current to values lower intermediate up to 56% lower than the value selected with the DIP-Switch. For example if we want a current of 630mA we can adjust the output with the jumpers to 700mA and connect a resistor of 34kOhmnios. For more information please see the datasheet in the tab "Attachments" and you can use the Excel file to calculate the value of the resistance.

Some of the sensors supported are:

MEAN WELL: WPD-06SWT Push button dual wireless, without batteries.

MEAN WELL: NWC-300 programmer EnOcean USB for the configuration of the system.

MEAN WELL: EOSWA-W-EO sensor of presence of a wall.

MEAN WELL: EOSCA-W-EO sensor of presence of roof.

MEAN WELL: ELLSU-W-EO brightness sensor.

Can be adjusted by regulatory assets or liabilities0-10Vor1-10V, signal 10V PWM of 100Hz to 3KHz or by resistance of 0 to 100KOhmios. Does not work with dimmers Triac dimmer cutting phase.(Not to be confused with regulators TRIACs, cutting phase. This driver cannot be regular with a Triac).With potentiometers assets that you can give 0V to shut down the output without the need of a switch. Dimmers 1-10V we can only reach 10% of regulation without shutting down the output.

Compatible with any regulator 0-10V or 1-10V-market both assets and liabilities. Some compatible models tested are:

MEAN WELL DAP-04S01 (compatible with any push button normally open).

SIMON: 75317

BJC: 5TC8 425

LEGRAND: 0784 04

ABB- "NIESSEN": N2260.9

SIEMENS: 5TC8424

EFAPEL: Model 21210

LED BOX: Model LD1160188

OSRAM: Model DIM MCU

JUNG: Model 240-10

We can put about 20 sources for each regulator. The maximum distance is 100 meters between the regulator and the driver.
