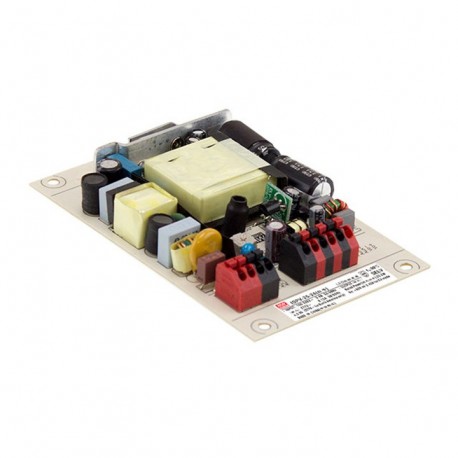

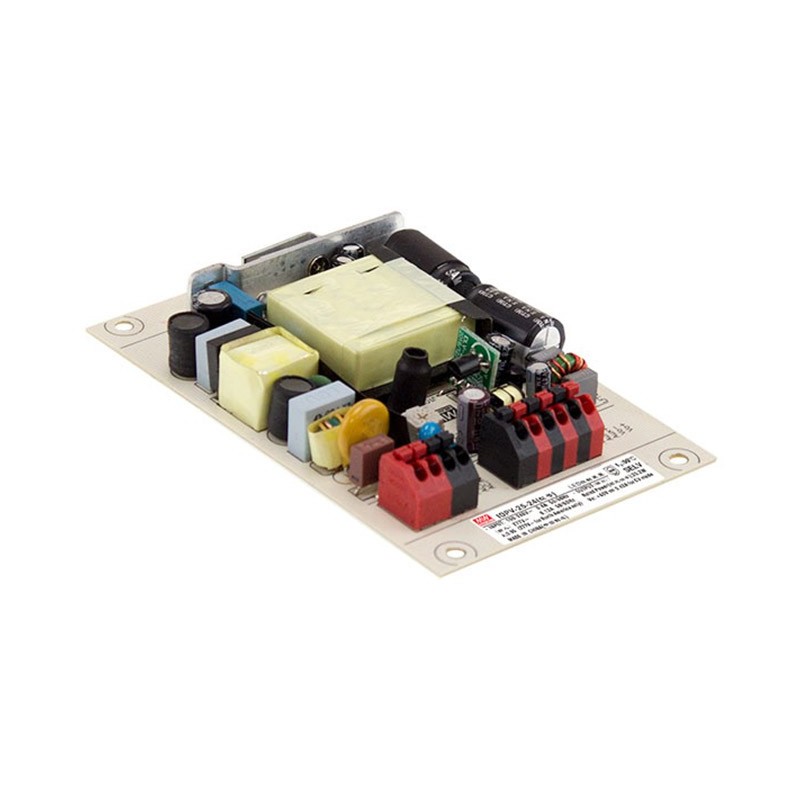

IDPV-25-36 MEANWELL AC-DC Constant Voltage LED Driver (CV), PCB open frame type, Input range 90-295VAC, Outp..

LED driver dimmable.

Specially designed for the regulation of LED strips.

Open format typePCBS.

Input range90-295Vca47-63Hz.

Output voltage36Vcc.

Output intensity700mA. Range of output current 0-700mA according to demand load.

Power:25,2 W.

Efficiency typical:82%.

Regulation0% to 100% of the output intensity with a slider0-10V / 1-10Vor a PWM signal of 10V with a frequency of 100Hz to 3KHz. With the regulation we can turn off the output, but we need a regulator 0-10V. Regulators 1-10V not arrive to give 0V do not shut down the output.

Input class II without grounding.

Factor corrector, power>0.92to 230vac at full load.

Consumption without load <0.5 W.

Operating temperature range of caseTcfrom-20ºCup+45ºC.

Dimensions (Length x Width x Height):114,5 x 72.5 x 20mm.

3 years of warranty.

Manufacturer: MEAN WELL.

The series IDPV are LED Drivers designed to work directly with LED strips. Must be equipment that is fed at constant voltage. With an open format PCB type designed for lighting applications in interior. Low ripple current, no flicker (flicker-free).

These sources can be dimmed with dimmers assets or liabilities of0-10Vor1-10V, signal 10V PWM of 100Hz to 3KHz. Does not work with dimmers Triac dimmer cutting phase.(Not to be confused with regulators TRIACs, cutting phase. This driver cannot be regular with a Triac).With potentiometers assets that you can give 0V to shut down the output without the need of a switch. Dimmers 1-10V we can only reach 10% of regulation without shutting down the output. The output pulse can be regular any LED strip by small, is always to not overcome the maximum load of the driver.

Compatible with any regulator 0-10V or 1-10V-market both assets and liabilities. Some compatible models tested are:

MEAN WELL DAP-04S01 (compatible with any push button normally open).

SIMON: 75317

BJC: 5TC8 425

LEGRAND: 0784 04

ABB- "NIESSEN": N2260.9

SIEMENS: 5TC8424

EFAPEL: Model 21210

LED BOX: Model LD1160188

OSRAM: Model DIM MCU

JUNG: Model 240-10

We can put about 20 sources for each regulator. The maximum distance is 100 meters between the regulator and the driver.
