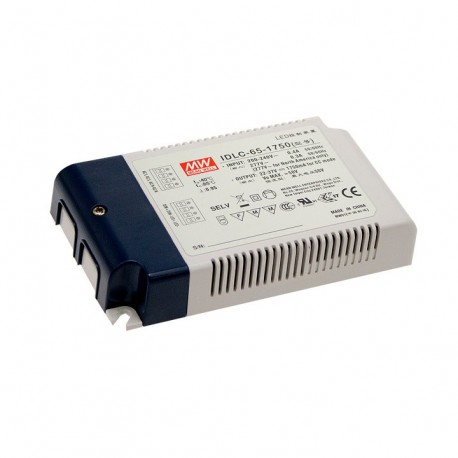

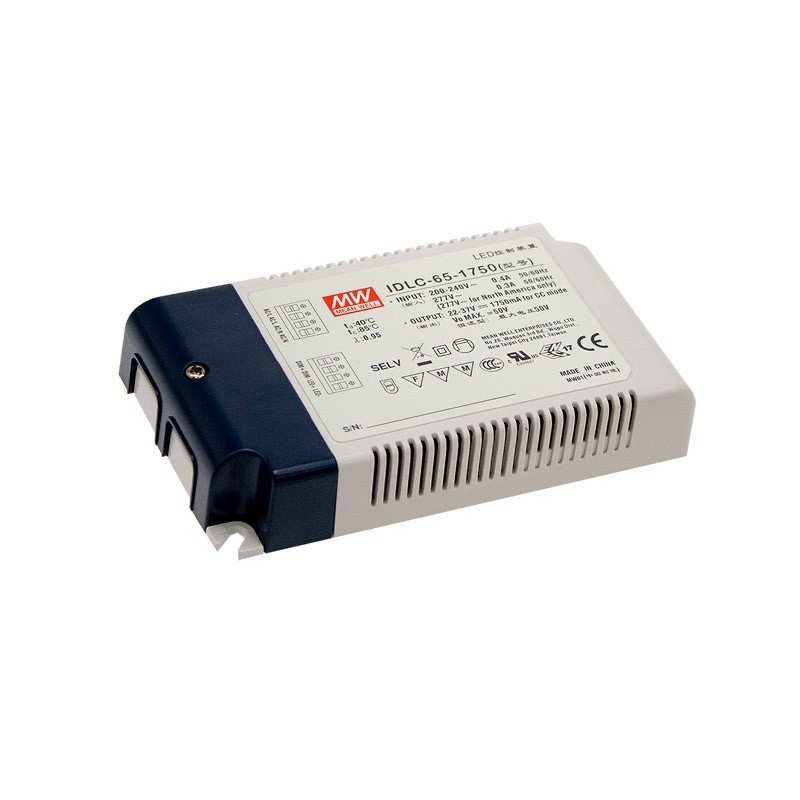

IDLC-65A-1750
MEANWELL
1
AC-DC Constant Current LED Driver (CC) with PFC, Output 36VDC / 1.75A, 2 in 1 dimming with auxiliary output
LED DRIVERS
* Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Name | IDLC-65A-1750 |
---|---|
Long Description | LED driver dimmable. Specially designed for powering LEDs directly in a steady stream. Format in plastic boxIP20. Input range180-295Vca47-63Hz. Output in constant current1750mA. Range of output voltage with current mode constant27 to 36Vccaccording to demand load. Power:63W. Efficiency typical:86%. Regulation0% to 100% of the output intensity with a slider0-10V / 1-10Vor a PWM signal of 10V with a frequency of 100Hz to 3KHz. With the regulation we can turn off the output, but we need a regulator 0-10V. Regulators 1-10V not arrive to give 0V do not shut down the output. Input class II without grounding. Factor corrector, power>0.95to 230vac at full load. OutputAuxiliary 12V/50mA. Consumption without load <1,2 W. Operating temperature range of caseTcfrom-20ºCup+85ºC. Dimensions (Length x Width x Height):130 x 75 x 25mm. 3 years of warranty. Manufacturer: MEAN WELL. The series IDLC are LED drivers designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream. The A version has an outputauxiliaryof12V/50mA.With plastic housing designed for lighting applications in interior. Low ripple current, no flicker (flicker-free). This source works on a Constant Current when we connect the LEDs directly to have a voltage within the Range of Output Voltage mode Constant Current and a working current equal to the output current. These sources can be dimmed with dimmers assets or liabilities of0-10Vor1-10V, signal 10V PWM of 100Hz to 3KHz. Does not work with dimmers Triac dimmer cutting phase.(Not to be confused with regulators TRIACs, cutting phase. This driver cannot be regular with a Triac).With potentiometers assets that you can give 0V to shut down the output without the need of a switch. Dimmers 1-10V we can only reach 10% of regulation without shutting down the output. If you want to regular LED strips, we recommend the series IDLV or PWM. Compatible with any regulator 0-10V or 1-10V-market both assets and liabilities. Some compatible models tested are: MEAN WELL DAP-04S01 (compatible with any push button normally open). SIMON: 75317 BJC: 5TC8 425 LEGRAND: 0784 04 ABB- "NIESSEN": N2260.9 SIEMENS: 5TC8424 EFAPEL: Model 21210 LED BOX: Model LD1160188 OSRAM: Model DIM MCU JUNG: Model 240-10 We can put about 20 sources for each regulator. The maximum distance is 100 meters between the regulator and the driver. |
Country of Origin | China |
Manufacturer | MEAN WELL |
Product type | LED Driver |
Format | Box |
Subformato | IP20 |
Applications | Lighting |
Series | IDLC-65A |
State | New |
Warranty (Years) | 3,00 |
Height (mm) | 25.00 |
Width (mm) | 75.00 |
Long/Background | 130.00 |
Type of Entry CA | Single-phase |
AC input Min | 180,00 |
AC input Max | 295,00 |
Input frequency | 50 Hz, 60 Hz |
Input connector | Quick Connector |
Intensity of Minimum Output (mA) | 1.750,00 |
Intensity of Output Maximum (mA) | 1.750,00 |
Output current mA | One thousand seven hundred fifty |
Power (W) | 63,00 |
Peak Power (W) | Sixty three |
Dimming | 0-10V, 1-10V, PWM Signal 10V |
Output connector | Quick Connector |
Isolation (V) | 3.750,00 |
Approvals | CCC, CE, ENEC, UL |
