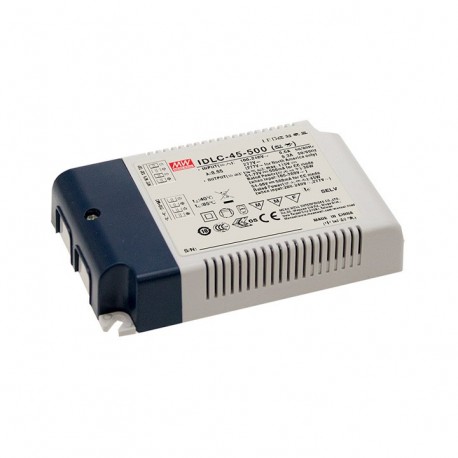

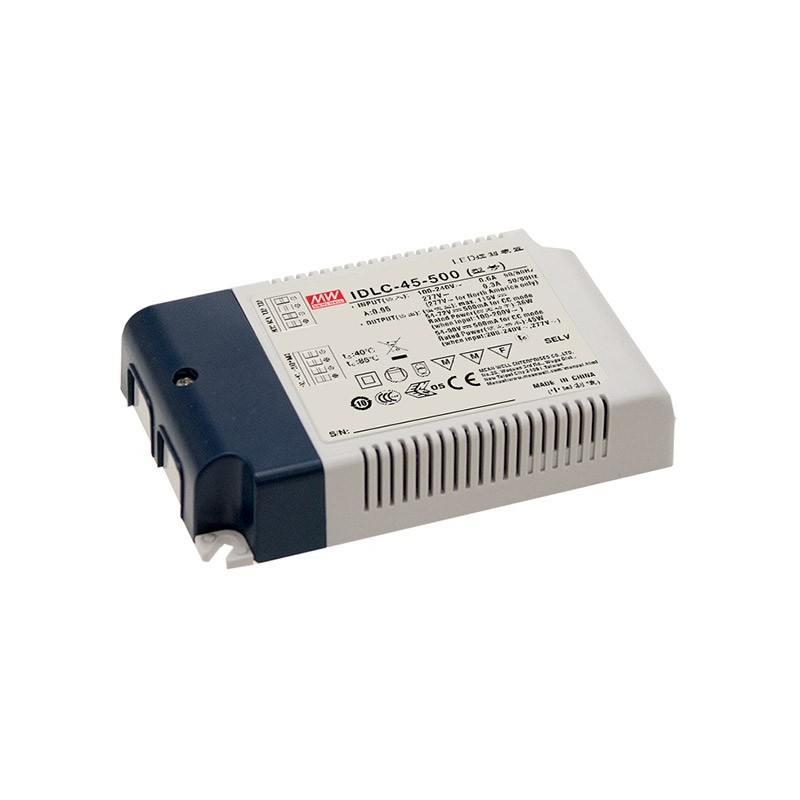

IDLC-45-500DA MEANWELL AC-DC Constant Current LED Driver (CC), Output 90VDC / 0.5A, Dimming with DALI
Reference: IDLC-45-500DA
Manufacturer: MEANWELL
Description:
AC-DC Constant Current LED Driver (CC), Output 90VDC / 0.5A, Dimming with DALI
Categories:
- MEANWELL > LED DRIVERS
Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
- More Info
- Reviews
* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
MORE INFO
| Name | IDLC-45-500DA |
|---|---|
| Long Description | LED driver dimmable. Specially designed for powering LEDs directly in a steady stream. Format in plastic boxIP20. Input range90-295Vca47-63Hz. Output in constant current500mA. Range of output voltage with current mode constant54 to 90Vccaccording to demand load. Power:45W. Efficiency typical:85%. Regulation DALI0% to 100% of the output intensity. Certificate to DALI. Input class II without grounding. Factor corrector, power>0.92to 230vac at full load. Consumption without load <0.5 W. Operating temperature range of caseTcfrom-20ºCup+85ºC. Dimensions (Length x Width x Height):120 x 75 x 25mm. 3 years of warranty. Manufacturer: MEAN WELL. The series IDLC are LED drivers designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream. With plastic housing designed for lighting applications in interior. Low ripple current, no flicker (flicker-free). This source works on a Constant Current when we connect the LEDs directly to have a voltage within the Range of Output Voltage mode Constant Current and a working current equal to the output current. Compatible with any system DALI. |
| Country of Origin | China |
| Manufacturer | MEAN WELL |
| Product type | LED Driver |
| Format | Box |
| Subformato | IP20 |
| Applications | Lighting |
| Series | IDLC-45-DA |
| State | New |
| Warranty (Years) | 3,00 |
| Height (mm) | 25.00 |
| Width (mm) | 75.00 |
| Long/Background | 120.00 |
| Type of Entry CA | Single-phase |
| AC input Min | 90,00 |
| AC input Max | 295,00 |
| Input frequency | 50 Hz, 60 Hz |
| Input connector | Quick Connector |
| Intensity of Minimum Output (mA) | 500,00 |
| Intensity of Output Maximum (mA) | 500,00 |
| Output current mA | Five hundred |
| Power (W) | 45,00 |
| Peak Power (W) | Forty five |
| Dimming | DALI |
| Output connector | Quick Connector |
| Isolation (V) | 3.750,00 |
| Approvals | CCC, CE, ENEC, UL |
DATASHEET - PDF
