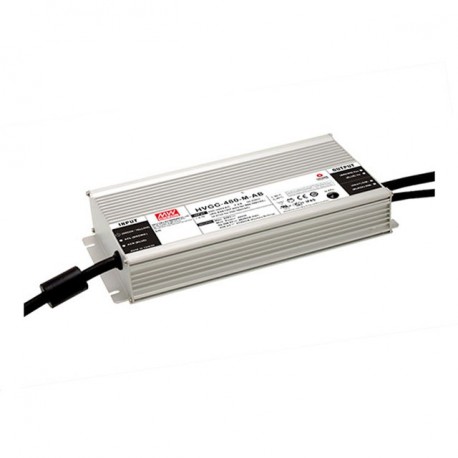

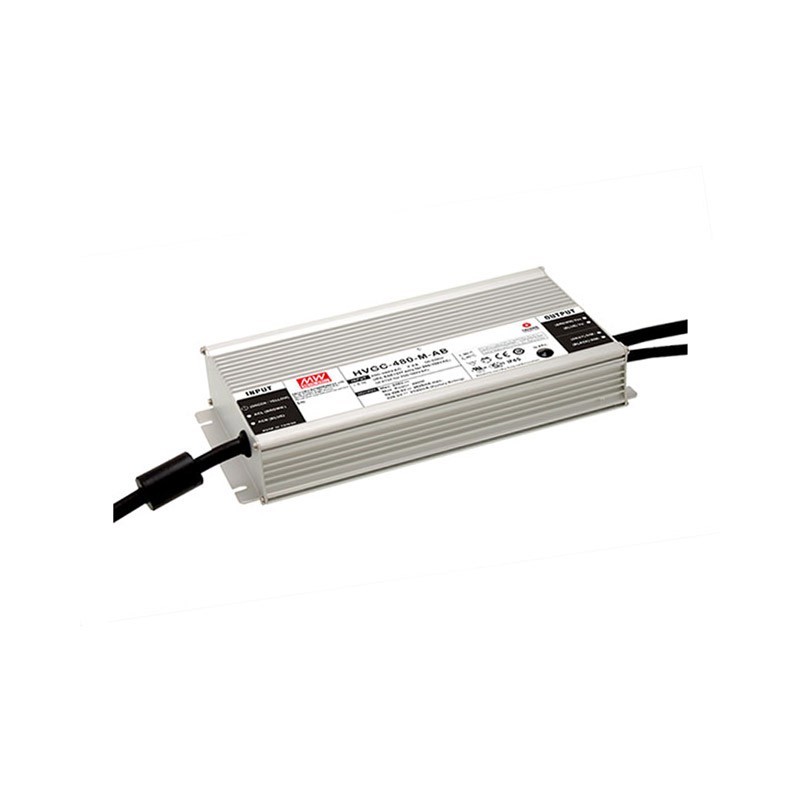

HVGC-480-M-AB MEANWELL AC-DC Single output LED driver Constant Power Mode with built-in PFC, Output 228.5VDC..

LED driver dimmable with constant power.

Specially designed for powering LEDs directly in a steady stream.

Format in metal boxIP65.

Input range180-528Vca47-63Hz.

Output in constant current2,1 A.Adjustable by external potentiometer (1,05-2,625).

Maximum output power rating of between2,1-2,625 To.

Range of output voltage with current mode constant92 a 228.5 Vccaccording to demand load and according to adjustment of the output current.

Power:480W.

Efficiency typical:94.5 per cent.

Potentiometer:This model incorporates 1 internal potentiometer that allows us to adjust the output current between 1.05 and 2,625 A.

Regulation0% to 100% of the output intensity with a slider0-10V / 1-10V,a PWM signal of 10V with a frequency of 100Hz to 3KHz or resistance of 0 to 100K Ohms. With the regulation we can turn off the output, but we need a regulator 0-10V. Regulators 1-10V not arrive to give 0V do not shut down the output.

Input class I with grounding.

Factor corrector, power>0,98to 230vac at full load.

Operating temperature range of caseTcfrom-40ºCup+90ºC.

Dimensions (Length x Width x Height):262 x 125 x 43.8 mm

5 years of warranty.

Manufacturer: MEAN WELL.

The series HVGC-480 are LED drivers with constant power. Give an output constant current which can be adjusted by the potentiometer and the range of output voltage varies according to the setting of the current. In this way we can get the maximum power output while to adjust to different current values. The sources of constant power offer a wide operating range (voltage + current), allowing to use one model for different applications with different requirements of voltage and current.

This source is designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream.

This source works on a constant current when we connect the LEDs directly to have a voltage within the range of output voltage mode constant current and a working current equal to the output current. In this version AB, the output current can be adjusted byknob that incorporates the source itself,in addition to having regulation 0-10V/1-10V, 10V PWM, or resistance.

The series HVGC are LED drivers, class I grounded.

With metal housing IP65. The series HVGC has a high efficiency designed for port applications, lighting to great height, parking spaces, LED lamps for fishing, etc Approved HL Class I Division 2 for ex-zones in the US. Complies with the requirements of security at the global level for lighting.

Can be adjusted by regulatory assets or liabilities0-10Vor1-10V, signal 10V PWM of 100Hz to 3KHz or by resistance of 0 to 100KOhmios. Does not work with dimmers Triac dimmer cutting phase.(Not to be confused with regulators TRIACs, cutting phase. This driver cannot be regular with a Triac).With potentiometers assets that you can give 0V to shut down the output without the need of a switch. Dimmers 1-10V we can only reach 10% of regulation without shutting down the output. If you want to regulate the LED strips we recommend the series PWM.

Compatible with any regulator 0-10V or 1-10V-market both assets and liabilities. Some compatible models tested are:

MEAN WELL DAP-04S01 (compatible with any push button normally open).

SIMON: 75317

BJC: 5TC8 425

LEGRAND: 0784 04

ABB- "NIESSEN": N2260.9

SIEMENS: 5TC8424

EFAPEL: Model 21210

LED BOX: Model LD1160188

OSRAM: Model DIM MCU

JUNG: Model 240-10

We can put about 20 sources for each regulator. The maximum distance is 100 meters between the regulator and the driver.
