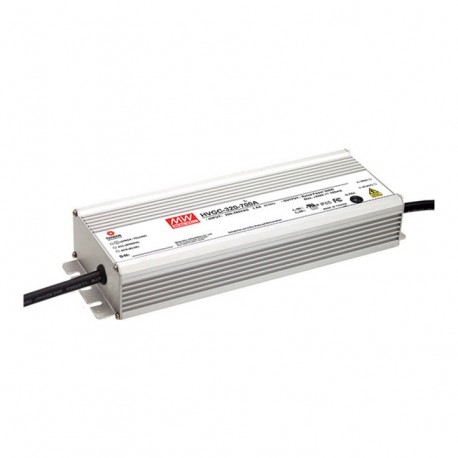

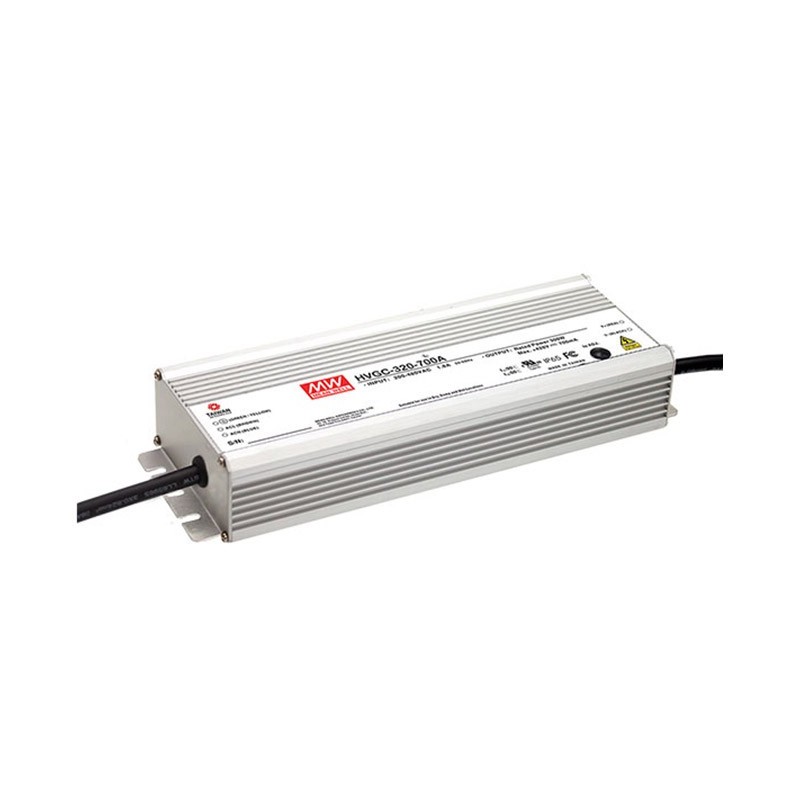

HVGC-320-2100A MEANWELL AC-DC Single Output LED driver Constant Current (CC) with built-in PFC, Output 156VD..

LED driver with phase input.

Specially designed for powering LEDs directly in a steady stream.

Format in metal boxIP65.

Input range180-528Vca47-63Hz.

Output in constant current2,1 A.Adjustable by external potentiometer (1,05-2,1 A).

Range of output voltage with current mode constant76,2 to 152,4 v Dcaccording to demand load.

Power:320W.

Efficiency typical:93,5%.

Potentiometer:This model incorporates 1 external potentiometer that allows us to regulate the maximum output current.

Input class I with grounding.

Factor corrector, power>0,98to 230vac at full load.

Operating temperature range of caseTcfrom-40ºCup+90ºC.

Dimensions (Length x Width x Height):262 x 90 x 43.8 mm

5 years of warranty.

Manufacturer: MEAN WELL

This source can work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream.

This source works on a constant current when we connect the LEDs directly to have a voltage within the range of output voltage mode constant current and a working current equal to the output current. The output current can be adjusted byexternal potentiometerlocated in the housing of the source.

The series HVG are LED drivers, class I grounded.

With metal housing IP65. The series HVG has a high efficiency designed for applications of public lighting, exterior, interior, or any application of LED lighting. Approved HL Class I Division 2 for ex-zones in the US. Complies with the requirements of security at the global level for lighting.

If you want to regulate the LED strips we recommend the series PWM.
