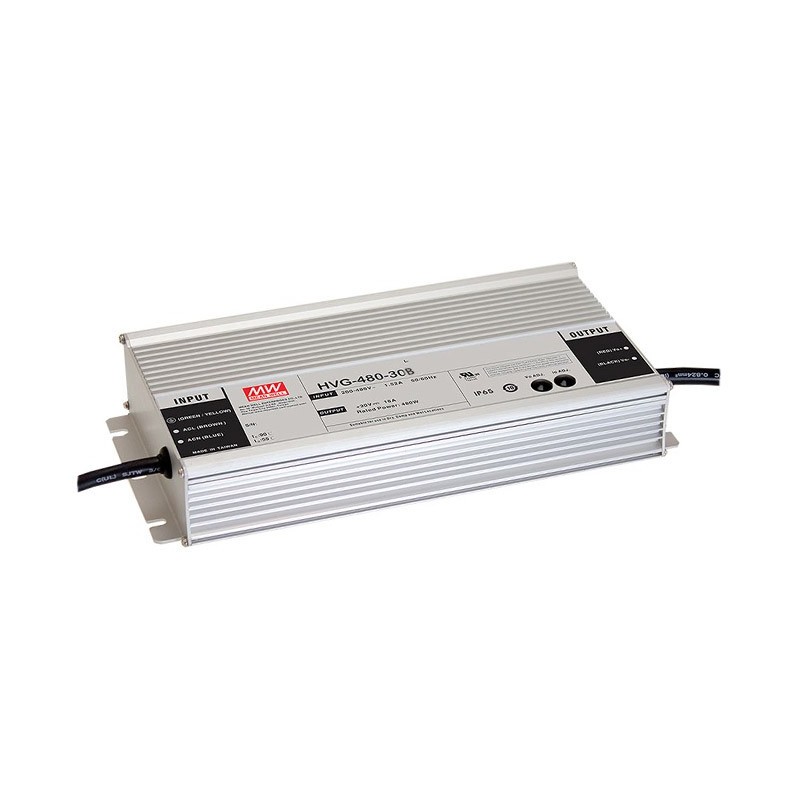

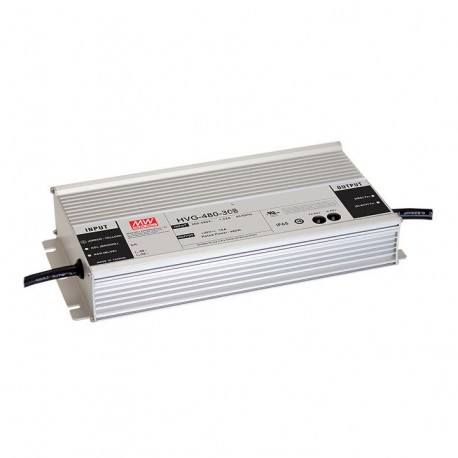

HVG-480-36B
MEANWELL
1
AC-DC Single output LED driver Mix mode (CV+CC), Output 13,3A. 478,8W, 18-36V. Dimming with 0-10V PWM resistance
LED DRIVERS > HVG
* Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Name | HVG-480-36B |
---|---|
Long Description | LED driver dimmable with phase input. Specially designed for powering LEDs directly in a steady stream. Format in metal box sealedIP67. Input range180-528Vca47-63Hz. Output in constant currentTo 13.3 A. Range of output voltage with current mode constant18 to 36Vccaccording to demand load. Power:478,8 W. Efficiency typical:94.5 per cent. Regulation0% to 100% of the output intensity with a slider0-10V / 1-10V,a PWM signal of 10V with a frequency of 100Hz to 3KHz or resistance of 0 to 100K Ohms. With the regulation we can turn off the output, but we need a regulator 0-10V. Regulators 1-10V not arrive to give 0V do not shut down the output. Input class I with grounding. Factor corrector, power>0,98to 230vac at full load. Operating temperature range of caseTcfrom-40ºCup+85ºC. Dimensions (Length x Width x Height):262 x 90 x 43.8 mm 5 years of warranty. Manufacturer: MEAN WELL. This source is designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream. This source can operate in either Constant Current when we connect the LEDs directly to have a voltage within the Range of Output Voltage mode Constant Current and a working current equal to the output current. The series HVG are LED drivers, class I grounded. You can also work in voltage mode constant giving a fixed voltage of 36V if the load is powered at constant voltage and does not overcome the maximum output power. With metal housing IP67. The series HVG has a high efficiency designed for applications of public lighting, exterior, interior, or any application of LED lighting. Approved HL Class I Division 2 for ex-zones in the US. Complies with the requirements of security at the global level for lighting. Can be adjusted by regulatory assets or liabilities0-10Vor1-10V, signal 10V PWM of 100Hz to 3KHz or by resistance of 0 to 100KOhmios. Does not work with dimmers Triac dimmer cutting phase.(Not to be confused with regulators TRIACs, cutting phase. This driver cannot be regular with a Triac).With potentiometers assets that you can give 0V to shut down the output without the need of a switch. Dimmers 1-10V we can only reach 10% of regulation without shutting down the output. If you want to regulate the LED strips we recommend the series PWM. Compatible with any regulator 0-10V or 1-10V-market both assets and liabilities. Some compatible models tested are: MEAN WELL DAP-04S01 (compatible with any push button normally open). SIMON: 75317 BJC: 5TC8 425 LEGRAND: 0784 04 ABB- "NIESSEN": N2260.9 SIEMENS: 5TC8424 EFAPEL: Model 21210 LED BOX: Model LD1160188 OSRAM: Model DIM MCU JUNG: Model 240-10 We can put about 20 sources for each regulator. The maximum distance is 100 meters between the regulator and the driver. |
Country of Origin | Taiwan |
Manufacturer | MEAN WELL |
Product type | LED Driver |
Format | Box |
Subformato | IP67 |
Applications | Lighting |
Series | HVG-480-B |
State | New |
Warranty (Years) | 5,00 |
Height (mm) | 43.80 |
Width (mm) | 125.00 |
Long/Background | 262.00 |
Type of Entry CA | Three-phase |
AC input Min | 180,00 |
AC input Max | 528,00 |
Input frequency | 50 Hz, 60 Hz |
Input connector | Cable |
Intensity of Minimum Output (mA) | 13.300,00 |
Intensity of Output Maximum (mA) | 13.300,00 |
Output current mA | 13000, 14000 |
Power (W) | 478,80 |
Peak Power (W) | 478.8 |
Dimming | 0-10V, 1-10V, Resistance 0-100K, PWM Signal 10V |
Output connector | Cable |
Isolation (V) | 3.750,00 |
Approvals | UL |
