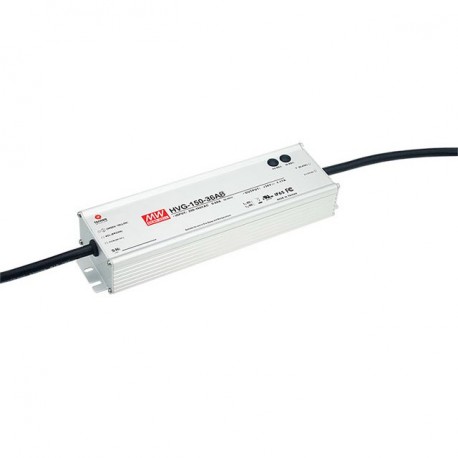

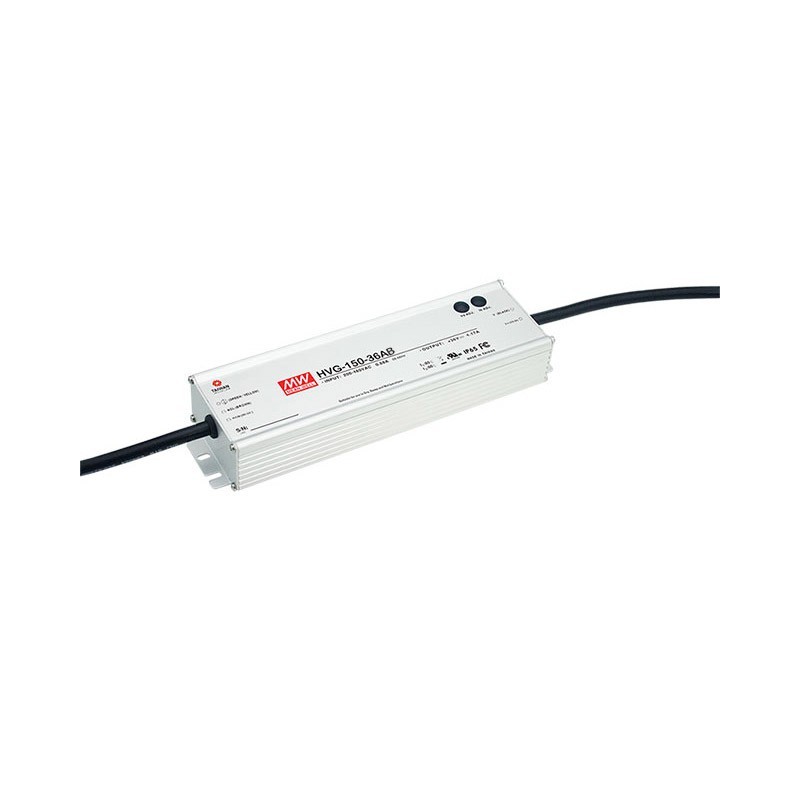

HVG-150-15AB
MEANWELL
1
AC-DC Single output LED driver Mix mode (CV+CC), Output 8.25-15V / 10A, 150W. IP65, adjustable Io and Vo & 3 in 1 dimming function
LED DRIVERS > HVG
* Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Name | HVG-150-15AB |
---|---|
Long Description | LED driver dimmable with phase input. Specially designed for powering LEDs directly in a steady stream. Format in metal boxIP65. Input range180-528Vca47-63Hz. Output in constant current10A.Adjustable by external potentiometer (5,5-10A). Range of output voltage with current mode constantApproximately 8.25 to 15vdcaccording to demand load. The output voltage in voltage mode constant15vdc. Adjustable by external potentiometer (13,5-17Vcc). Power:150W. Efficiency typical:89%. Potentiometers:This model incorporates 2 external potentiometers that allows us to regulate the output voltage and the maximum output current. Regulation0% to 100% of the output intensity with a slider0-10V / 1-10V,a PWM signal of 10V with a frequency of 100Hz to 3KHz or resistance of 0 to 100K Ohms. With the regulation we can turn off the output, but we need a regulator 0-10V. Regulators 1-10V not arrive to give 0V do not shut down the output. Input class I with grounding. Factor corrector, power>0,98to 230vac at full load. Operating temperature range of caseTcfrom-40ºCup+85ºC. Dimensions (Length x Width x Height):245 x 68 x 38,8 mm 5 years of warranty. Manufacturer: MEAN WELL. This source is designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream. This source works on a constant current when we connect the LEDs directly to have a voltage within the range of output voltage mode constant current and a working current equal to the output current.In this version AB, the output current and the output voltage can be adjusted byexternal potentiometerslocated in the housing of the source, in addition to having regulation 0-10V/1-10V, 10V PWM, or resistance. The series HVG are LED drivers, class I grounded. You can also work in voltage mode constant giving a fixed voltage of 15V if load is powered at constant voltage and does not overcome the maximum output power. With metal housing IP65. The series HVG has a high efficiency designed for applications of public lighting, exterior, interior, or any application of LED lighting. Approved HL Class I Division 2 for ex-zones in the US. Complies with the requirements of security at the global level for lighting. Can be adjusted by regulatory assets or liabilities0-10Vor1-10V, signal 10V PWM of 100Hz to 3KHz or by resistance of 0 to 100KOhmios. Does not work with dimmers Triac dimmer cutting phase.(Not to be confused with regulators TRIACs, cutting phase. This driver cannot be regular with a Triac).With potentiometers assets that you can give 0V to shut down the output without the need of a switch. Dimmers 1-10V we can only reach 10% of regulation without shutting down the output. If you want to regulate the LED strips we recommend the series PWM. Compatible with any regulator 0-10V or 1-10V-market both assets and liabilities. Some compatible models tested are: MEAN WELL DAP-04S01 (compatible with any push button normally open). SIMON: 75317 BJC: 5TC8 425 LEGRAND: 0784 04 ABB- "NIESSEN": N2260.9 SIEMENS: 5TC8424 EFAPEL: Model 21210 LED BOX: Model LD1160188 OSRAM: Model DIM MCU JUNG: Model 240-10 We can put about 20 sources for each regulator. The maximum distance is 100 meters between the regulator and the driver. |
Country of Origin | China |
Manufacturer | MEAN WELL |
Product type | LED Driver |
Format | Box |
Subformato | IP65 |
Applications | Lighting |
Series | HVG-150-AB |
State | New |
Warranty (Years) | 5,00 |
Height (mm) | 38.80 |
Width (mm) | 68.00 |
Long/Background | 245.00 |
Type of Entry CA | Three-phase |
AC input Min | 180,00 |
AC input Max | 528,00 |
Input frequency | 50 Hz, 60 Hz |
Input connector | Cable |
Intensity of Minimum Output (mA) | 5.500,00 |
Intensity of Output Maximum (mA) | 10.000,00 |
Output current mA | 5500, 6000, 7000, 8000, 9000, 10000 |
Power (W) | 150,00 |
Peak Power (W) | One hundred fifty |
Dimming | 0-10V, 1-10V, Resistance 0-100K, PWM Signal 10V |
Output connector | Cable |
Isolation (V) | 3.750,00 |
Approvals | EAC, UL |
Title: | Size: | Type: |
---|---|---|
PDF CATALOGUE LED MEANWELL EN.pdf | 5 Mbytes | |
PDF CATALOGUE POWER SUPPLY MEANWELL EN.pdf | 7 Mbytes |
