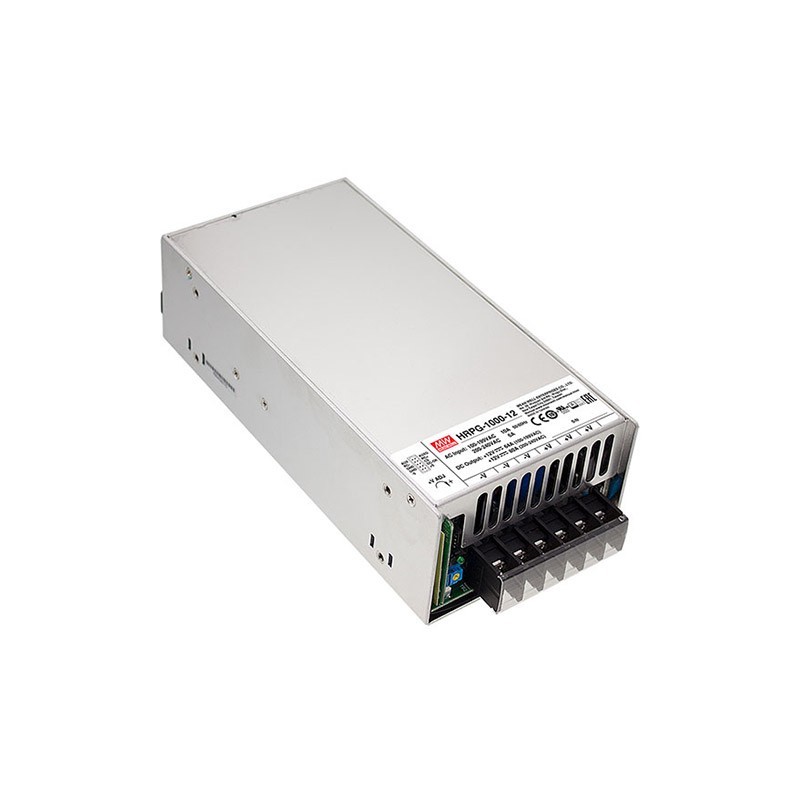

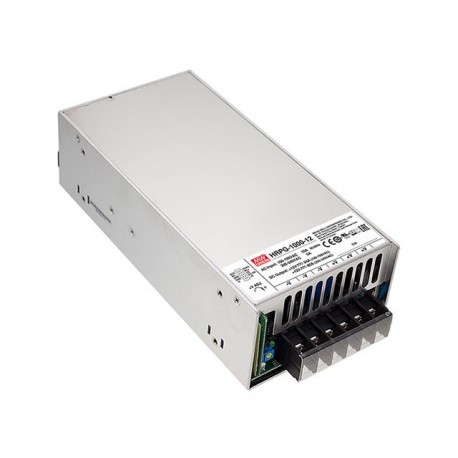

HRPG-1000-12 MEANWELL AC-DC Single output Enclosed power supply with PFC, Output 12VDC / 80A, 5VDC / 0.3A au..

Switch mode power supply.

Especially designed for automation applications and industrial.

Format in case of grid.

Range of universal input90-264vac47-63Hz.

Output voltage12vdc. Adjustable by potentiometer (11-14Vcc).

Output intensity80A. Range of output current 0-80A according to demand load.

Power:960W(1000W over 3s)

Efficiency typical:91,5%.

Supports peak input voltage of 300Vca for 5 seconds.

Factor corrector, power>0,95to 230vac and full load.

Input class I with grounding.

Alarm output voltage to the correct DC-Ok.

Remote on / off.

Auxiliary output Stand-by 5V 0.3 A.

Consumption at no load <0,75 W.

Function of sensing to compensate the voltage drop in the cables.

Protection against short circuit, over load, over voltage and temperature.

Working temperature: from-40up+70 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift.

Dimensions (Length x Width x Height) [mm]:218 x 105 x 63.5.

5 years of warranty.

Manufacturer: MEAN WELL.

The series HRPG are the sources of most high-end format box MEAN WELL. Are designed for demanding applications such as industrial, automation and control of factory, machines, laser, applications of radio frequency and instrumentation of measurement and test.

Support input voltages of 300Vca for 5 seconds and use components of the highest reliability as the electrolytic capacitors of 105ºC.

The sources HRPG-1000 carry integrated the function of sensing to compensate the voltage drop on the output cables (depending on the thickness of the cable and the amount of amps, as well as the distance causes it to lose tension, compensándolo this function). Is can compensate for up to 0.5 V.

The protection against over loads is for current limiting, constant current, and can reduce stress by up to 50% of its nominal value and keeping the output intensity, this serves to start heavy loads such as motors or other inductive loads or capacitive.Have a high efficiency and auxiliary output of 5V.

The series HRPG-1000 is certified, CE, UL, EAC, UL/EN62368-1, EN55032.
