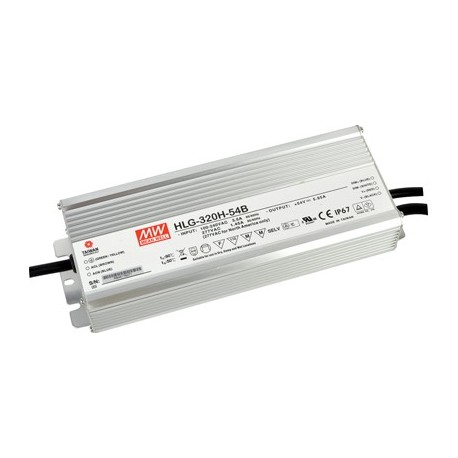

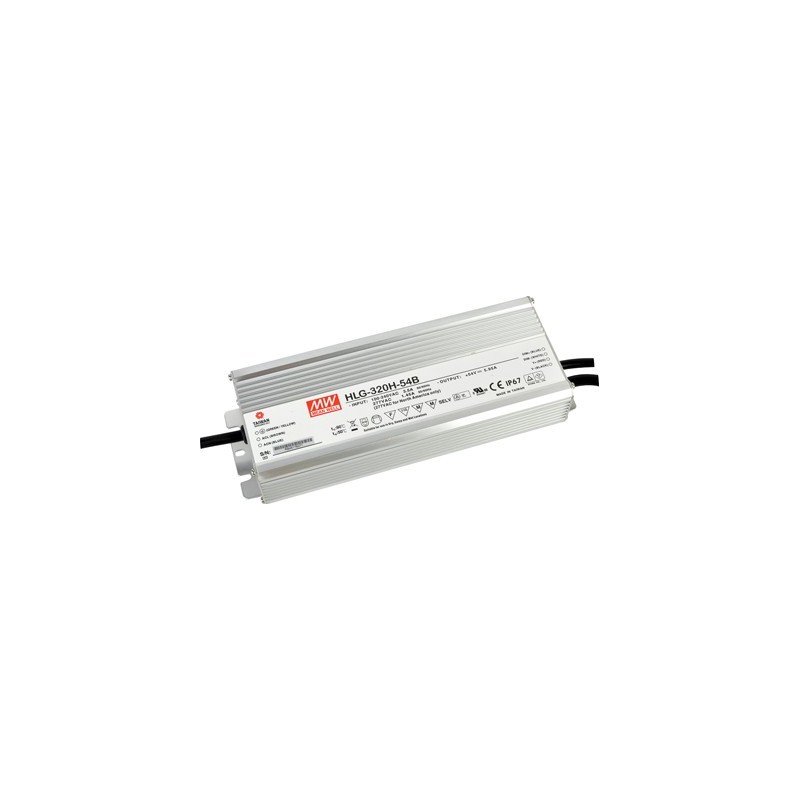

HLG-320H-C1050DA MEANWELL AC-DC Single output LED driver Constant Current (CC) with built-in PFC, Output 305..

LED driver dimmable.

Specially designed for powering LEDs directly in a steady stream.

Format in metal box sealedIP67.

Input range100-305Vca47-63Hz.

Output in constant current1050mA.

Range of output voltage with current mode constant152 305Vccaccording to demand load.

Power:320,2 W.

Efficiency typical:94%.

Regulation DALI0% to 100% of the output intensity. Certificate to DALI.

Input class I with grounding.

Factor corrector, power>0.95to 230vac at full load.

Operating temperature range of caseTcfrom-40ºCup+85ºC.

Dimensions (Length x Width x Height):252 x 90 x 43.8 mm

7 years of warranty.

Manufacturer: MEAN WELL.

This source is designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream.

This source works on a constant current when we connect the LEDs directly to have a voltage within the range of output voltage mode constant current and a working current equal to the output current.

The series HLG are LED drivers, class I grounded.

With metal housing, waterproof to IP67. The series HLG has a high efficiency designed for applications of public lighting, architectural, exterior, interior or any lighting application LED needs a driver of high quality. Approved HL Class I Division 2 for ex-zones in the US. Suitable for LED lighting or LED displays. Complies with the requirements of security at the global level for lighting.

Compatible with any system DALI.
