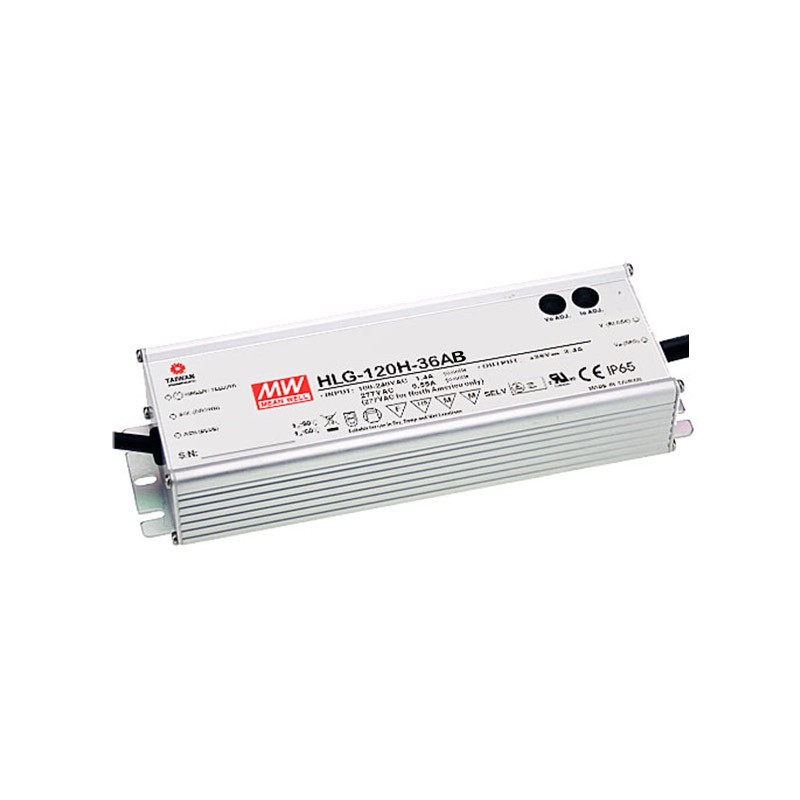

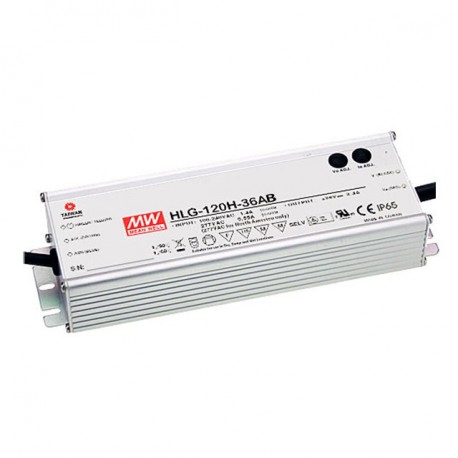

HLG-120H-15AB MEANWELL AC-DC Single output LED driver Mix mode (CV+CC) with built-in PFC, Output 15VDC / 8A,..

LED driver dimmable.

Specially designed for powering LEDs directly in a steady stream.

Format in metal boxIP65.

Input range90-305Vca47-63Hz.

Output in constant current8A.Adjustable by potentiometer external (4-8A).

Range of output voltage with current mode constant7.5 to 15vdcaccording to demand load.

The output voltage in voltage mode constant15vdc. Adjustable by external potentiometer (13,5-17Vcc).

Power:120W.

Efficiency typical:92%.

Potentiometers:This model incorporates 2 external potentiometers that allows us to regulate the output voltage and the maximum output current.

Regulationfrom 10% to 100% of the output intensity with a slider1-10V, a PWM signal of 10V with a frequency of 100Hz to 3KHz or resistance of 0 to 100K Ohms. With the regulation we can not turn off the output, we can only go down to 10%.

Input class I with grounding.

Factor corrector, power>0,95to 230vac at full load.

Operating temperature range of caseTcfrom-40ºCup+80ºC.

Dimensions (Length x Width x Height):220 x 68 x 38,8 mm

7 years of warranty.

Manufacturer: MEAN WELL

This source is designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream.

This source works on a constant current when we connect the LEDs directly to have a voltage within the range of output voltage mode constant current and a working current equal to the output current.In this version AB, the output current and the output voltage can be adjusted byexternal potentiometerslocated in the housing of the source, in addition to having regulation 1-10V, 10V PWM, or resistance.

The series HLG are LED drivers, class I grounded.

You can also work in voltage mode constant giving a fixed voltage of 15V if load is powered at constant voltage and does not overcome the maximum output power.

With metal housing IP65. The series HLG has a high efficiency designed for applications of public lighting, architectural, exterior, interior or any lighting application LED needs a driver of high quality. Approved HL Class I Division 2 for ex-zones in the US. Suitable for LED lighting or LED displays. Complies with the requirements of security at the global level for lighting.

Can be adjusted by regulatory assets or liabilities1-10V, signal 10V PWM of 100Hz to 3KHz or by resistance of 0 to 100KOhmios. Does not work with dimmers Triac dimmer cutting phase.(Not to be confused with regulators TRIACs, cutting phase. This driver cannot be regular with a Triac).

Dimmers 1-10V we can only reach 10% of regulation without shutting down the output. If you want to regulate the LED strips we recommend the series PWM.

Compatible with any dimmer 1-10V-market both assets and liabilities. Some compatible models tested are:

MEAN WELL DAP-04S01 (compatible with any push button normally open).

SIMON: 75317

BJC: 5TC8 425

LEGRAND: 0784 04

ABB- "NIESSEN": N2260.9

SIEMENS: 5TC8424

EFAPEL: Model 21210

LED BOX: Model LD1160188

OSRAM: Model DIM MCU

JUNG: Model 240-10

We can put about 20 sources for each regulator. The maximum distance is 100 meters between the regulator and the driver.
