Product:MTZ18-4VM DANFOSS REFRIGERATION Reciproc...

Images are for illustrative purposes only. Please refer to data sheet for details.
Reference: HEP-320-48A
Manufacturer: MEANWELL
Description:
Categories:
Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
LAST VIEWED
| Name | HEP-320-48A |
|---|---|

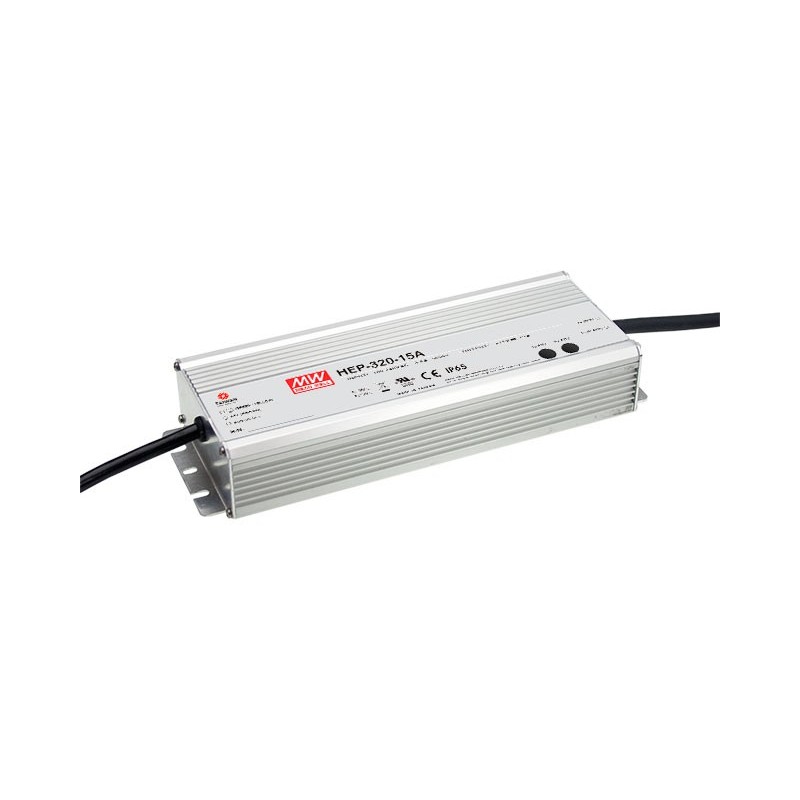

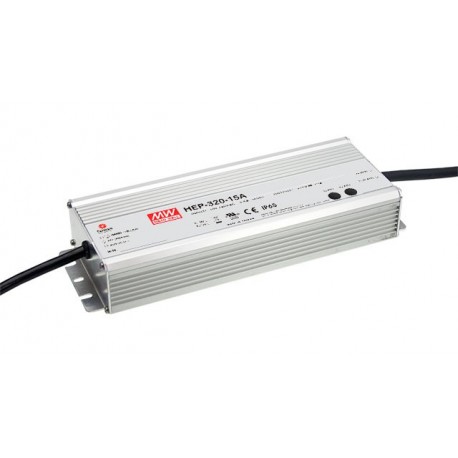

| Long Description | Switch-mode power supply for extreme environments. Format in metal boxIP65. Input range90-305Vca47-63Hz. Output voltage48vdc. Adjustable by potentiometer (43-52Vcc). Output intensity6.7. Range of output current 0-6,7 according To the demand load. Intensity of maximum output adjustable by potentiometer (3,35-6.7). Power:321,6 W. Factor Corrector of a Power >0,95. Efficiency typical:94.5 per cent. Working temperature from-55up+70 ° C(refer to the technical sheet to see the curves of drift). Protection against transients6KV. Resistant to vibrations10G. Operating altitude up to5000 metres. Dimensions (Length x Width x Height):252 x 90 x 43.8 mm 6 years of warranty. Manufacturer: MEAN WELL. The series HEP are sources of industrial power ready to work in extreme environments of dust, moisture, vibration, temperature and altitude. The whole series has a box of sturdy aluminum filled with a special silicone heat-conductive and electrically insulating, and moisture, this allows a better heat dissipation and greater resistance to water. With an innovative design feature with a high efficiency to reduce the power consumption and heat generation. They are ideal for applications where we don't want to use fans and we need a source robust. |
| Country of Origin | Taiwan |
| Manufacturer | MEAN WELL |
| Product type | Power supply AC/DC |
| Format | Box |
| Subformato | IP65 |
| Applications | Industrial, Telecommunications |
| Series | HEP-320 |
| Warranty (Years) | 6,00 |
| Height (mm) | 43.8 |
| Width (mm) | Ninety |
| Long/Background | Two hundred eighty two |
| Type of Entry CA | Single-phase |
| AC input Min | 90,00 |
| AC input Max | 305,00 |
| Input frequency | 50 Hz, 60 Hz |
| Input connector | Cable |
| Output voltage | 48,00 |
| Power (W) | 321,60 |
| Peak Power (W) | 321.6 |
| Output connector | Cable |
| Isolation (V) | 3.750,00 |
| Approvals | CE, UL |
