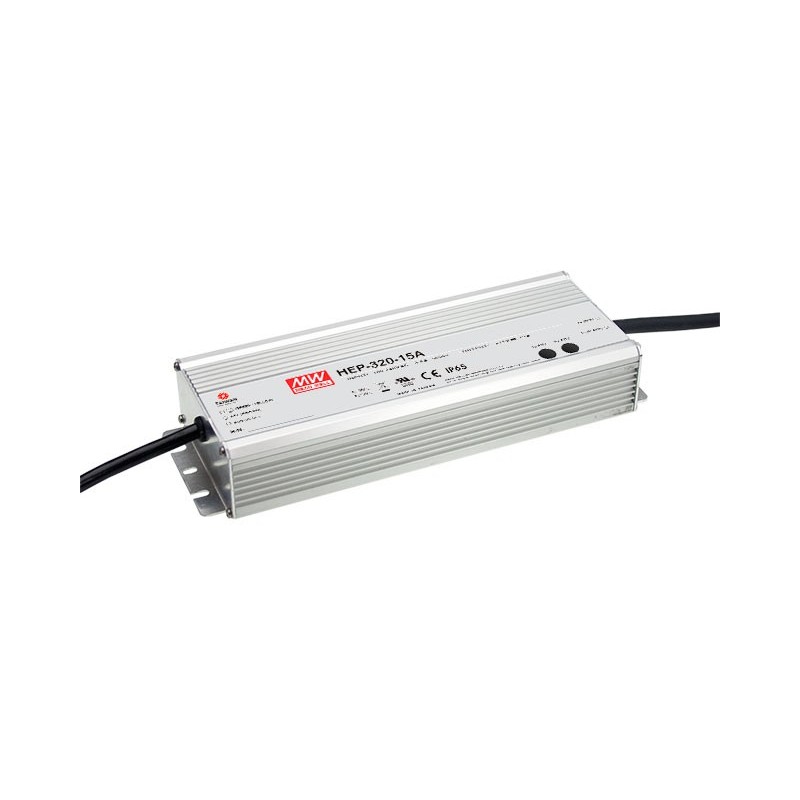

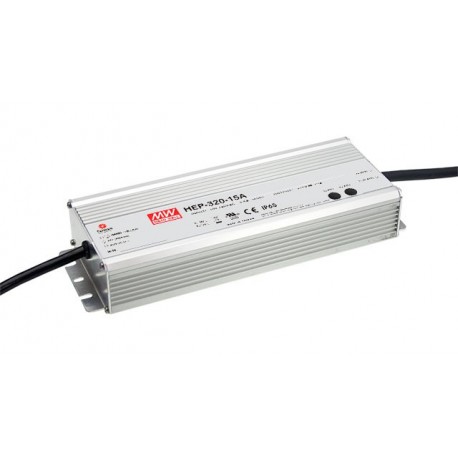

HEP-320-24A
MEANWELL
1
AC-DC Single output industrial power supply with PFC, Output 24VDC / 13.3A, Vo-Io adjust with Potentiometer, IP65
PFC > HEP
* Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Name | HEP-320-24A |
---|---|
Long Description | Switch-mode power supply for extreme environments. Format in metal boxIP65. Input range90-305Vca47-63Hz. Output voltage24vdc. Adjustable by potentiometer (21-26Vcc). Output intensity13,34 To. Range of output current 0-13,34 according To the demand load. Intensity of maximum output adjustable by potentiometer (6,67-13,34 A). Power:320,1 W. Factor Corrector of a Power >0,95. Efficiency typical:94%. Working temperature from-55up+70 ° C(refer to the technical sheet to see the curves of drift). Protection against transients6KV. Resistant to vibrations10G. Operating altitude up to5000 metres. Dimensions (Length x Width x Height):252 x 90 x 43.8 mm 6 years of warranty. Manufacturer: MEAN WELL. The series HEP are sources of industrial power ready to work in extreme environments of dust, moisture, vibration, temperature and altitude. The whole series has a box of sturdy aluminum filled with a special silicone heat-conductive and electrically insulating, and moisture, this allows a better heat dissipation and greater resistance to water. With an innovative design feature with a high efficiency to reduce the power consumption and heat generation. They are ideal for applications where we don't want to use fans and we need a source robust. |
Country of Origin | Taiwan |
Manufacturer | MEAN WELL |
Product type | Power supply AC/DC |
Format | Box |
Subformato | IP65 |
Applications | Industrial, Telecommunications |
Series | HEP-320 |
Warranty (Years) | 6,00 |
Height (mm) | 43.80 |
Width (mm) | 90.00 |
Long/Background | 252.00 |
Type of Entry CA | Single-phase |
AC input Min | 90,00 |
AC input Max | 305,00 |
Input frequency | 50 Hz, 60 Hz |
Input connector | Cable |
Output voltage | 24,00 |
Power (W) | 320,10 |
Peak Power (W) | 320.1 |
Output connector | Cable |
Isolation (V) | 3.750,00 |
Approvals | CE, UL |
Title: | Size: | Type: |
---|---|---|
PDF CATALOGUE LED MEANWELL EN.pdf | 5 Mbytes | |
PDF CATALOGUE POWER SUPPLY MEANWELL EN.pdf | 7 Mbytes |
