HDR-15-5
MEANWELL
1
Available Ship on today

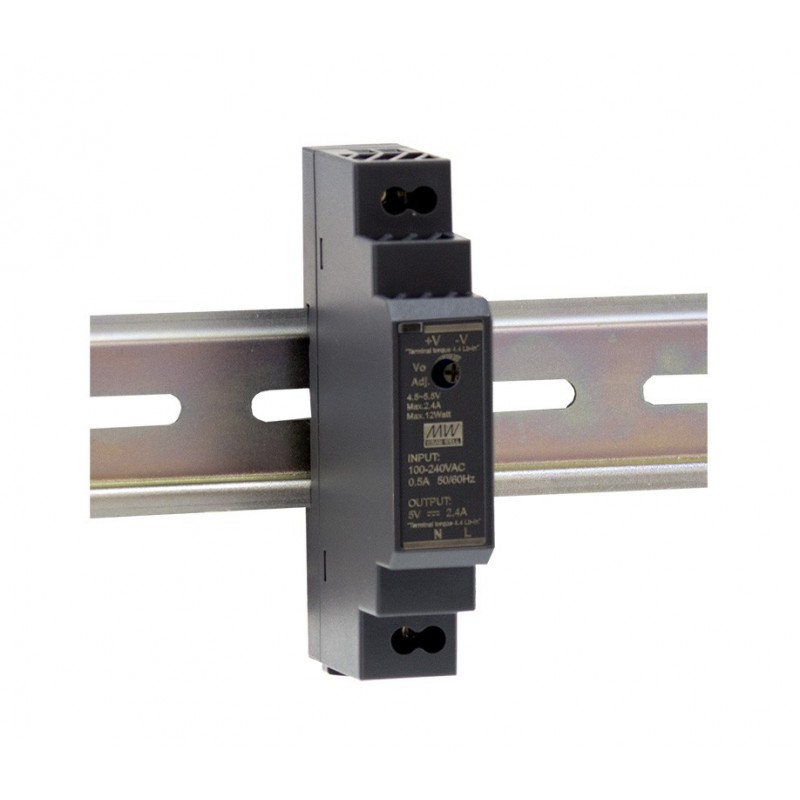

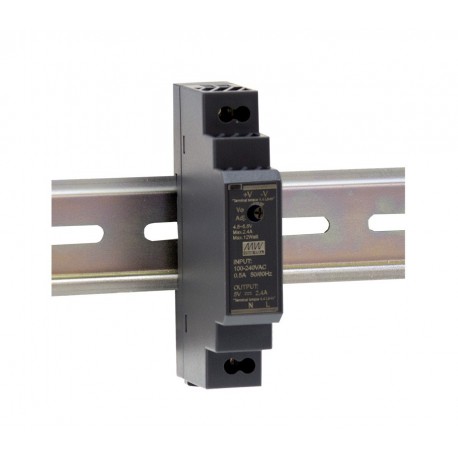

AC-DC Ultra slim DIN rail power supply, Input range 85-264VAC, Output 5VDC / 2.4A, Pass LPS
DIN RAIL
* Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Name | HDR-15-5 |
---|---|
Long Description | Switch mode Power supply. Format to mount on a Din Rail. Range of universal Input85-264vac47-63Hz. Output voltage5vdc.Adjustable by potentiometer (4,5-5,5 Vdc). Output intensity2,4 A. Power:12W. Efficiency:80%. Consumption without load<0,3 W. Working temperature: from-30up+70ºCof ambient temperature. Consult the technical data sheet to see the curves of drift. Dimensions (Width x Height x depth):17,5 (1SU) x 90 x 54,5 mm 3 years of warranty. Manufacturer: MEAN WELL. The series HDR-15 is the latest generation of power supplies for din rail format ladder MEAN WELL. Have a low consumption at no load and high efficiency which make it suitable for all types of applications and allow a greater saving of energy. Have protection against short circuits, overloads and over voltages in the output. |
Country of Origin | China |
Stock | Yes |
Manufacturer | MEAN WELL |
Product type | Power supply AC/DC |
Format | Din Rail |
Subformato | Ladder |
Applications | Automation of Buildings, home Appliances, Industrial, Telecommunication |
Series | HDR-15 |
State | New |
Warranty (Years) | 3,00 |
Height (mm) | 90.00 |
Width (mm) | 17.50 |
Long/Background | 54.50 |
Type of Entry CA | Single-phase |
AC input Min | 85,00 |
AC input Max | 264,00 |
Input frequency | 50 Hz, 60 Hz |
Input connector | Screw-Type |
Output voltage | 5,00 |
Power (W) | 12,00 |
Peak Power (W) | Twelve |
Output connector | Screw-Type |
Isolation (V) | 3.750,00 |
Approvals | CE, UL |
