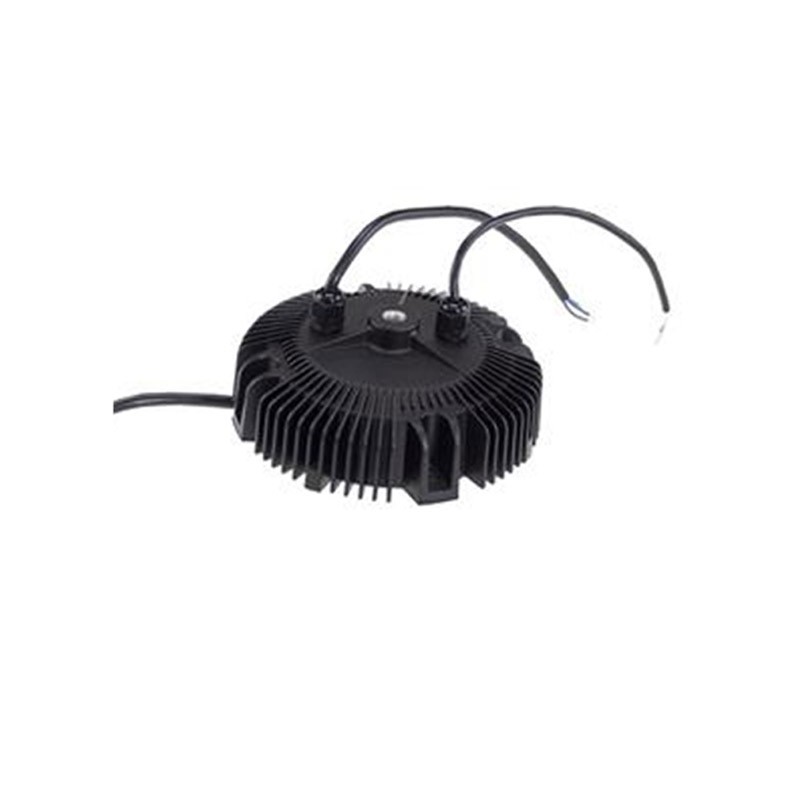

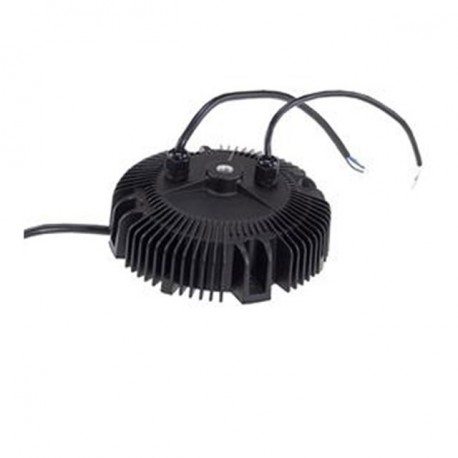

HBGC-300-M-AB
MEANWELL
1
AC-DC Single output LED driver Constant Power Mode with built-in PFC, Output 116VDC / 4.33A, IP67, Dimming with 0-10VDC 10V PWM resistance
LED DRIVERS > HBG
* Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Name | HBGC-300-M-AB |
---|---|
Long Description | LED driver dimmable with constant power. Specially designed for powering LEDs directly in a steady stream. Format circular metal patentedIP67. Input range90-305Vca47-63Hz. Output in constant current2,8 A.Adjustable by external potentiometer (1,3-4,33). Maximum output power rating of between2,6-4,33 To. Range of output voltage with current mode constant58 to 116Vccaccording to demand load and according to adjustment of the output current. Power:Eur 301.6 W. Efficiency typical:93,5%. Potentiometer:This model incorporates 1 internal potentiometer that allows us to adjust the power output between 650 and 2170mA. Regulation0% to 100% of the output intensity with a slider0-10V / 1-10V,a PWM signal of 10V with a frequency of 100Hz to 3KHz or resistance of 0 to 100K Ohms. With the regulation we can turn off the output, but we need a regulator 0-10V. Regulators 1-10V not arrive to give 0V do not shut down the output. Input class I with grounding. Factor corrector, power>0,95to 230vac at full load. Operating temperature range of caseTcfrom-40ºCup+80ºC. Dimensions (Diameter x Height):191,5 x 69mm. 5 years of warranty. Manufacturer: MEAN WELL. The series HBGC-300 are LED drivers with constant power. Give an output constant current which can be adjusted by the potentiometer and the range of output voltage varies according to the setting of the current. In this way we can get the maximum power output while to adjust to different current values. The sources of constant power offer a wide operating range (voltage + current), allowing to use one model for different applications with different requirements of voltage and current. This source is designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream. This source works on a constant current when we connect the LEDs directly to have a voltage within the range of output voltage mode constant current and a working current equal to the output current. In this version AB, the output current can be adjusted byknob that incorporates the source itself,,in addition to having regulation 0-10V/1-10V, 10V PWM, or resistance. The series HBGC are LED drivers, class I grounded. With housing circular metal patented IP67. The series HBGC-300 is specially designed for the bells and LED spotlights, scenarios, and bays. Intended for applications in dry, damp or wet, both in exterior and in interior. Can be adjusted by regulatory assets or liabilities0-10Vor1-10V, signal 10V PWM of 100Hz to 3KHz or by resistance of 0 to 100KOhmios. Does not work with dimmers Triac dimmer cutting phase.(Not to be confused with regulators TRIACs, cutting phase. This driver cannot be regular with a Triac).With potentiometers assets that you can give 0V to shut down the output without the need of a switch. Dimmers 1-10V we can only reach 10% of regulation without shutting down the output. If you want to regulate the LED strips we recommend the series PWM. Compatible with any regulator 0-10V or 1-10V-market both assets and liabilities. Some compatible models tested are: MEAN WELL DAP-04S01 (compatible with any push button normally open). SIMON: 75317 BJC: 5TC8 425 LEGRAND: 0784 04 ABB- "NIESSEN": N2260.9 SIEMENS: 5TC8424 EFAPEL: Model 21210 LED BOX: Model LD1160188 OSRAM: Model DIM MCU JUNG: Model 240-10 We can put about 20 sources for each regulator. The maximum distance is 100 meters between the regulator and the driver. |
Country of Origin | China |
Manufacturer | MEAN WELL |
Product type | LED Driver |
Format | Box |
Subformato | IP67 |
Applications | Lighting |
Series | HBGC-300-AB |
State | New |
Warranty (Years) | 5,00 |
Height (mm) | Sixty nine |
Width (mm) | 191.5 |
Long/Background | 191.5 |
Type of Entry CA | Single-phase |
AC input Min | 90,00 |
AC input Max | 305,00 |
Input frequency | 50 Hz, 60 Hz |
Input connector | Cable |
Intensity of Minimum Output (mA) | 1.300,00 |
Intensity of Output Maximum (mA) | 4.330,00 |
Output current mA | 1300, 1350, 1400, 1450, 1500, 1550, 1600, 1650, 1700, 1750, 1800, 1850, 1900, 1950, 2000, 2050, 2100, 2200, 2300, 2400, 2500, 2600, 2700, 2800, 2900, 3000, 3100, 3200, 3300, 3400, 3500, 4000, 4500 |
Power (W) | 301,60 |
Peak Power (W) | 301.6 |
Dimming | 0-10V, 1-10V, Resistance 0-100K, PWM Signal 10V |
Output connector | Cable |
Isolation (V) | 3.750,00 |
Approvals | CCC, CE, ENEC, UL |
