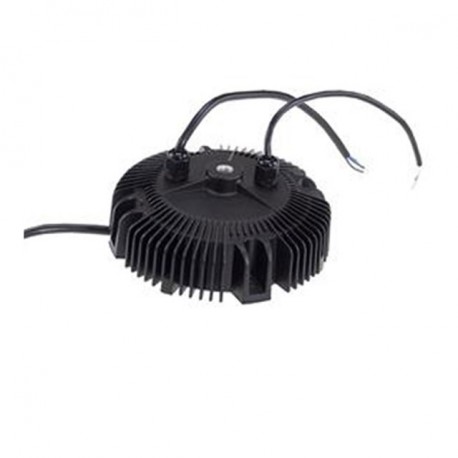

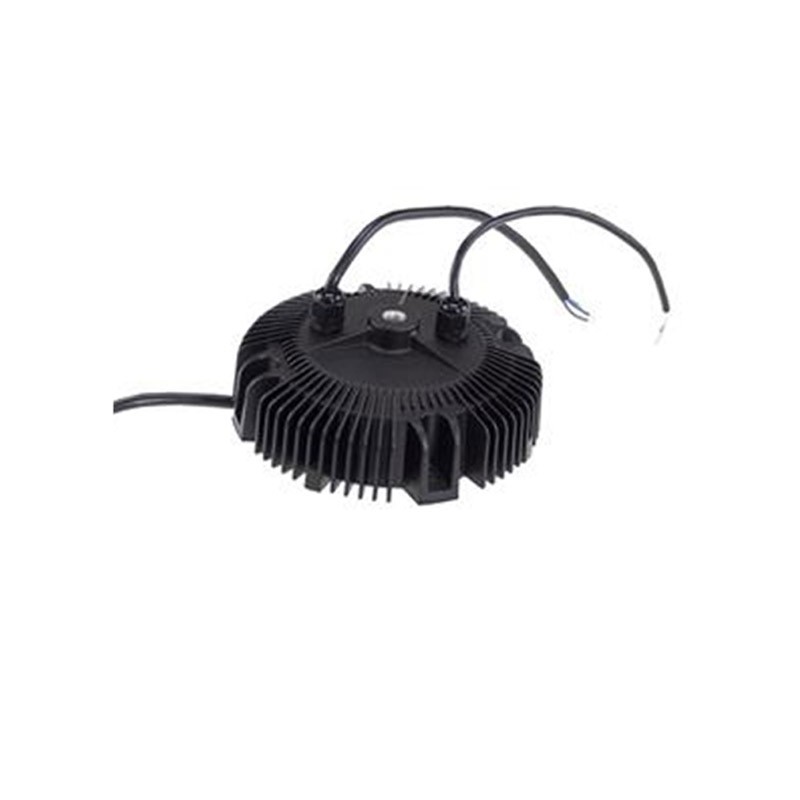

HBGC-300-L-A
MEANWELL
1
AC-DC Single output LED driver Constant Power Mode with built-in PFC, Output 232VDC / 2.17A, IP67, Built-in potentiometer
LED DRIVERS > HBG
* Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Name | HBGC-300- |
---|---|
Long Description | LED driver with constant power output. Specially designed for powering LEDs directly in a steady stream. Format circular metal patentedIP67. Input range90-305Vca47-63Hz. Output in constant current1400mA.Adjustable by external potentiometer (650-2170mA). Maximum output power rating of between1300-2170mA. Range of output voltage with current mode constant116 to 232Vccaccording to demand load and according to adjustment of the output current. Power:Eur 301.6 W. Efficiency typical:94.5 per cent. Potentiometer:This model incorporates 1 internal potentiometer that allows us to adjust the power output between 650 and 2170mA. Input class I with grounding. Factor corrector, power>0,95to 230vac at full load. Operating temperature range of caseTcfrom-40ºCup+80ºC. Dimensions (Diameter x Height):191,5 x 69mm. 5 years of warranty. Manufacturer: MEAN WELL. The series HBGC-300 are LED drivers with constant power. Give an output constant current which can be adjusted by the potentiometer and the range of output voltage varies according to the setting of the current. In this way we can get the maximum power output while to adjust to different current values. The sources of constant power offer a wide operating range (voltage + current), allowing to use one model for different applications with different requirements of voltage and current. This source is designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream. This source works on a constant current when we connect the LEDs directly to have a voltage within the range of output voltage mode constant current and a working current equal to the output current. In this version, the output current can be adjusted byknob that incorporates the source itself. The series HBGC are LED drivers, class I grounded. With housing circular metal patented IP67. The series HBGC-300 is specially designed for the bells and LED spotlights, scenarios, and bays. Intended for applications in dry, damp or wet, both in exterior and in interior. |
Country of Origin | China |
Manufacturer | MEAN WELL |
Product type | LED Driver |
Format | Box |
Subformato | IP67 |
Applications | Lighting |
Series | HBGC-300-A |
State | New |
Warranty (Years) | 5,00 |
Height (mm) | Sixty nine |
Width (mm) | 191.5 |
Long/Background | 191.5 |
Type of Entry CA | Single-phase |
AC input Min | 90,00 |
AC input Max | 305,00 |
Input frequency | 50 Hz, 60 Hz |
Input connector | Cable |
Intensity of Minimum Output (mA) | 650,00 |
Intensity of Output Maximum (mA) | 2.170,00 |
Output current mA | 650, 700, 750, 800, 850, 900, 950, 1000, 1050, 1100, 1150, 1200, 1250, 1300, 1350, 1400, 1450, 1500, 1550, 1600, 1650, 1700, 1750, 1800, 1850, 1900, 1950, 2000, 2050, 2100, 2200 |
Power (W) | 301,60 |
Peak Power (W) | 301.6 |
Output connector | Cable |
Isolation (V) | 3.750,00 |
Approvals | CCC, CE, ENEC, UL |
Title: | Size: | Type: |
---|---|---|
PDF CATALOGUE LED MEANWELL EN.pdf | 5 Mbytes | |
PDF CATALOGUE POWER SUPPLY MEANWELL EN.pdf | 7 Mbytes |
