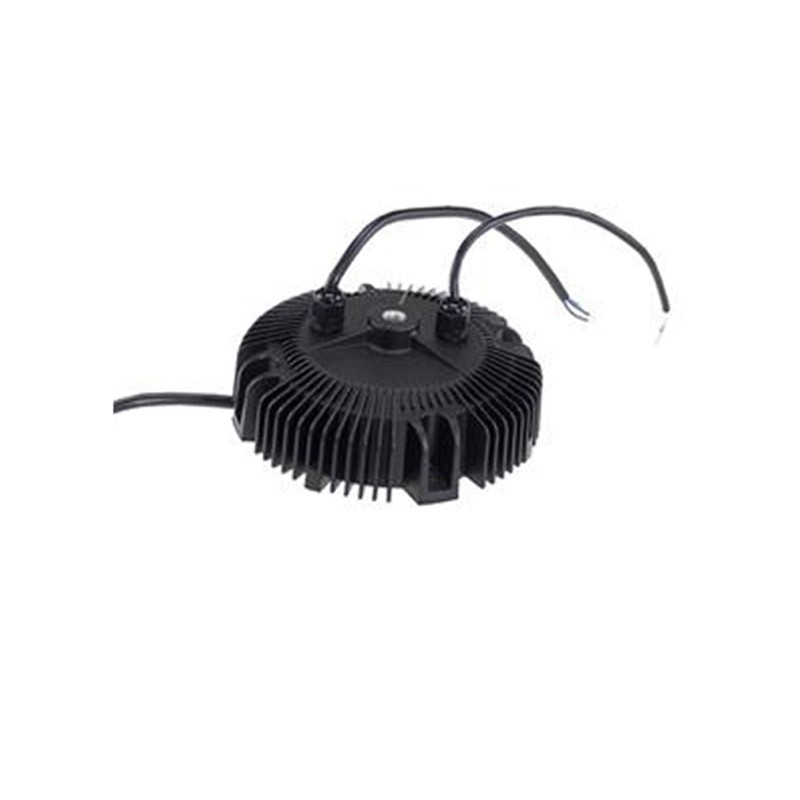

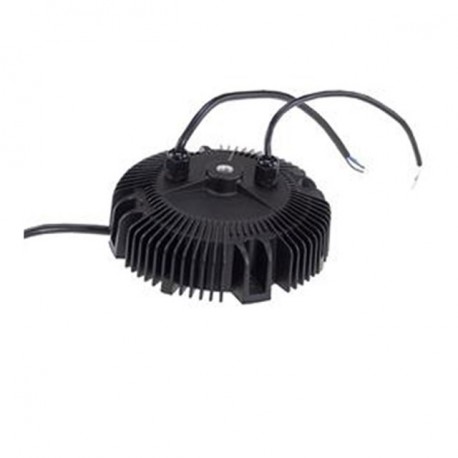

HBGC-300-H-A MEANWELL AC-DC Single output LED driver Constant Power Mode with built-in PFC, Output 58VDC / 8..

LED driver with constant power output.

Specially designed for powering LEDs directly in a steady stream.

Format circular metal patentedIP67.

Input range90-305Vca47-63Hz.

Output in constant current5,6 A.Adjustable by external potentiometer (2,6-8,67).

Maximum output power rating of between5,2-8,67 To.

Range of output voltage with current mode constant29 to 58Vccaccording to demand load and according to adjustment of the output current.

Power:Eur 301.6 W.

Efficiency typical:To 92.5%.

Potentiometer:This model incorporates 1 internal potentiometer that allows us to adjust the output current between 2.6 and 8,67 A.

Input class I with grounding.

Factor corrector, power>0,95to 230vac at full load.

Operating temperature range of caseTcfrom-40ºCup+80ºC.

Dimensions (Diameter x Height):191,5 x 69mm.

5 years of warranty.

Manufacturer: MEAN WELL.

The series HBGC-300 are LED drivers with constant power. Give an output constant current which can be adjusted by the potentiometer and the range of output voltage varies according to the setting of the current. In this way we can get the maximum power output while to adjust to different current values. The sources of constant power offer a wide operating range (voltage + current), allowing to use one model for different applications with different requirements of voltage and current.

This source is designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream.

This source works on a constant current when we connect the LEDs directly to have a voltage within the range of output voltage mode constant current and a working current equal to the output current. In this version, the output current can be adjusted byknob that incorporates the source itself.

The series HBGC are LED drivers, class I grounded.

With housing circular metal patented IP67. The series HBGC-300 is specially designed for the bells and LED spotlights, scenarios, and bays. Intended for applications in dry, damp or wet, both in exterior and in interior.
