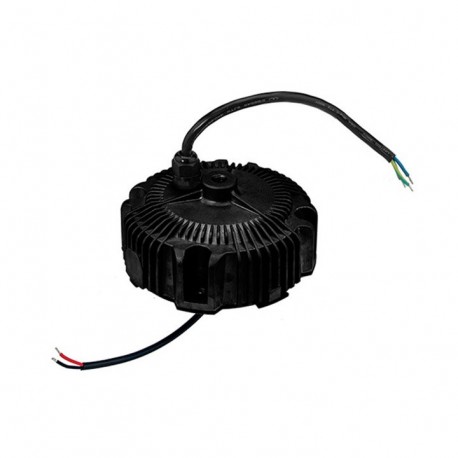

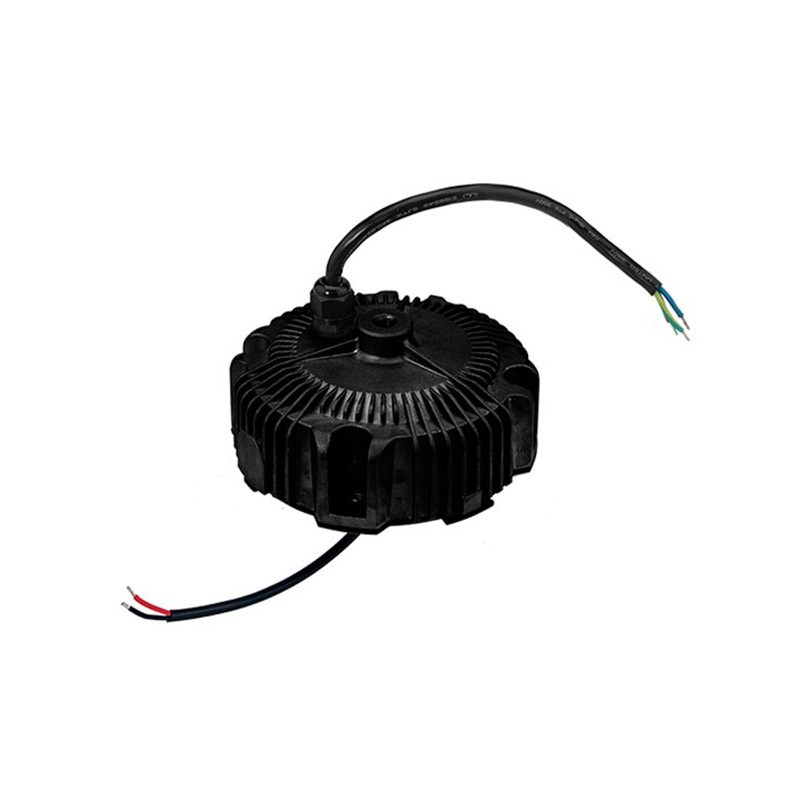

HBG-200-60AB MEANWELL AC-DC Single output LED Driver (CC+CV) with PFC, Output 60VDC / 3.3A, IP65, for in- an..

LED driver dimmable.

Specially designed for powering LEDs directly in a steady stream.

Format circular metal patentedIP65.

Input range90-305Vca47-63Hz.

Output in constant current3,3 A.Adjustable by external potentiometer (1.98 a-3.3 A).

Range of output voltage with current mode constant36 to 60Vccaccording to demand load.

Power:198W.

Efficiency typical:93,5%.

Potentiometer:This model incorporates external potentiometer that allows us to regulate the maximum output current.

Regulation0% to 100% of the output intensity with a slider0-10V / 1-10V,a PWM signal of 10V with a frequency of 100Hz to 3KHz or resistance of 0 to 100K Ohms. With the regulation we can turn off the output, but we need a regulator 0-10V. Regulators 1-10V not arrive to give 0V do not shut down the output.

Input class I with grounding.

Factor corrector, power>0.95to 230vac at full load.

Operating temperature range of caseTcfrom-40ºCup+85ºC.

Dimensions (Diameter x Height):151,68 x 66,5 mm

5 years of warranty.

Manufacturer: MEAN WELL.

This source is designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream.

This source works on a constant current when we connect the LEDs directly to have a voltage within the range of output voltage mode constant current and a working current equal to the output current. In this version AB, the output current can be adjusted byexternal potentiometerlocated in the housing of the source, in addition to having regulation 0-10V/1-10V, 10V PWM, or resistance.

You can also work in voltage mode constant giving a fixed voltage of 60V if the load is powered at constant voltage and does not overcome the maximum output power.

With housing circular metal IP65. The series HBG is specially designed for the bells and LED spotlights, stages, bays or pavilions. Intended for applications in dry, damp or wet, both in exterior and in interior. Input class I with grounding. Approved HL Class I Division 2 for ex-zones in the US.

Can be adjusted by regulatory assets or liabilities0-10Vor1-10V, signal 10V PWM of 100Hz to 3KHz or by resistance of 0 to 100KOhmios. Does not work with dimmers Triac dimmer cutting phase.(Not to be confused with regulators TRIACs, cutting phase. This driver cannot be regular with a Triac).With potentiometers assets that you can give 0V to shut down the output without the need of a switch. Dimmers 1-10V we can only reach 10% of regulation without shutting down the output. If you want to regulate the LED strips we recommend the series PWM.

Compatible with any regulator 0-10V or 1-10V-market both assets and liabilities. Some compatible models tested are:

MEAN WELL DAP-04S01 (compatible with any push button normally open).

SIMON: 75317

BJC: 5TC8 425

LEGRAND: 0784 04

ABB- "NIESSEN": N2260.9

SIEMENS: 5TC8424

EFAPEL: Model 21210

LED BOX: Model LD1160188

OSRAM: Model DIM MCU

JUNG: Model 240-10

We can put about 20 sources for each regulator. The maximum distance is 100 meters between the regulator and the driver.
