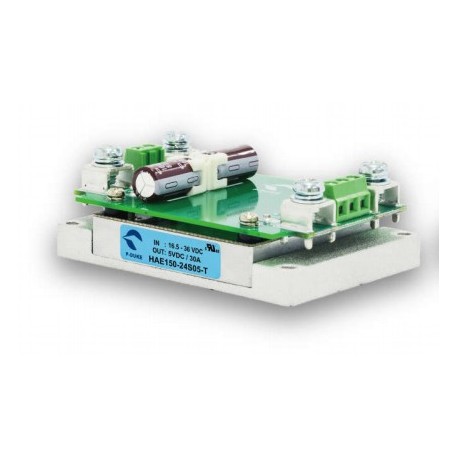

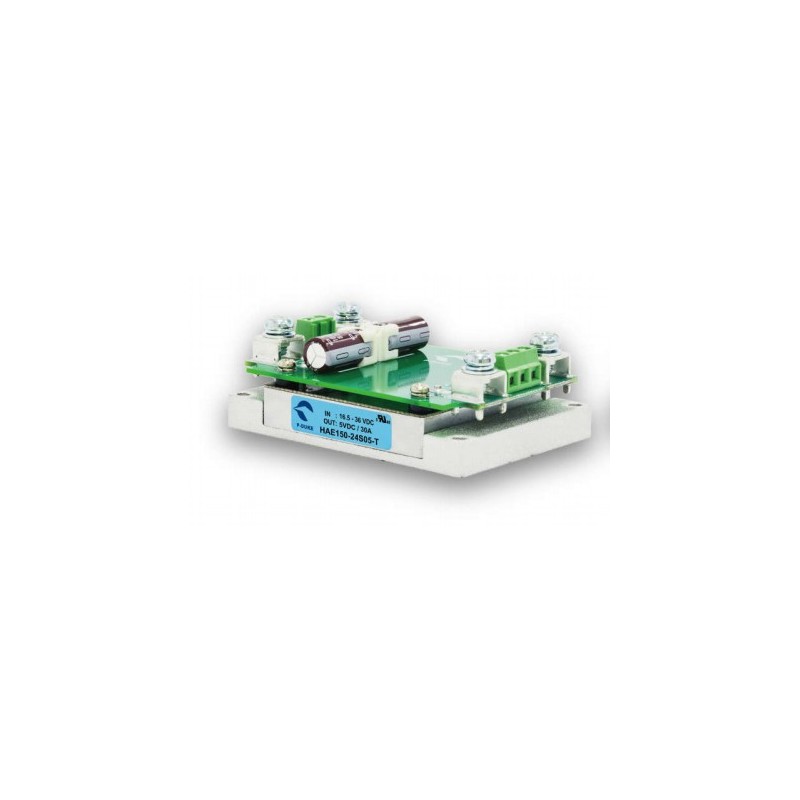

HAE150-12S12-T MEANWELL DC-DC converter in format box, and input range 2-to-1. Regulated output. Isolation 2..

Dc/DC converter in format box, and input range 2-to-1. Regulated output. Isolation 2250Vcc.

Converter for applications in telecommunications, industrial, distributed architecture and equipment for semiconductors.

Format box with connection by screw.

Input range:8,5-22Vcc.

Output voltage:12vdc.

Output intensity:12A.

Power:196W.

Isolation input-output 2250Vcc.

Efficiency of 91%.

Noise and ripple 100mVp-p.

Remote on / off.

Function of trrimming to adjust the output voltage from -20% and +10%.

Operating temperature from -40ºC to +115ºC (box temperature). See the curve of drift in the data sheet.

Dimensions (Length x Width x Height):61 x 57,9 x 32.5 mm. Format (Half-Brick, half-brick)

3 years of warranty.

Manufacturer: P-DUKE.

Certificate CE, EN60950-1, UL60950-1, IEC60950-1 and EN50155.

The converters of the series HAE150 are converters in industrial format of half-brick half-brick) high reliability.

They have a wide input range 2 to 1, and do not need a minimum load. The output voltage can be adjusted dynamically by using the terminals of trimming and also we can turn on and off the output of the converters by using the remote control terminals. They have all kinds of protections such as protection against over load, short circuit, over output voltage, low input voltage and over temperature. Have a high efficiency and a low noise and ripple.

This converter does not need a minimum load, has a low ripple of output and protection against excess temperature. Have a long expected life and meet mil standards thermal shock MIL-STD-810F vibration and MIL-STD-810F.

The series HAE150 is a reliable solution for almost any application.
