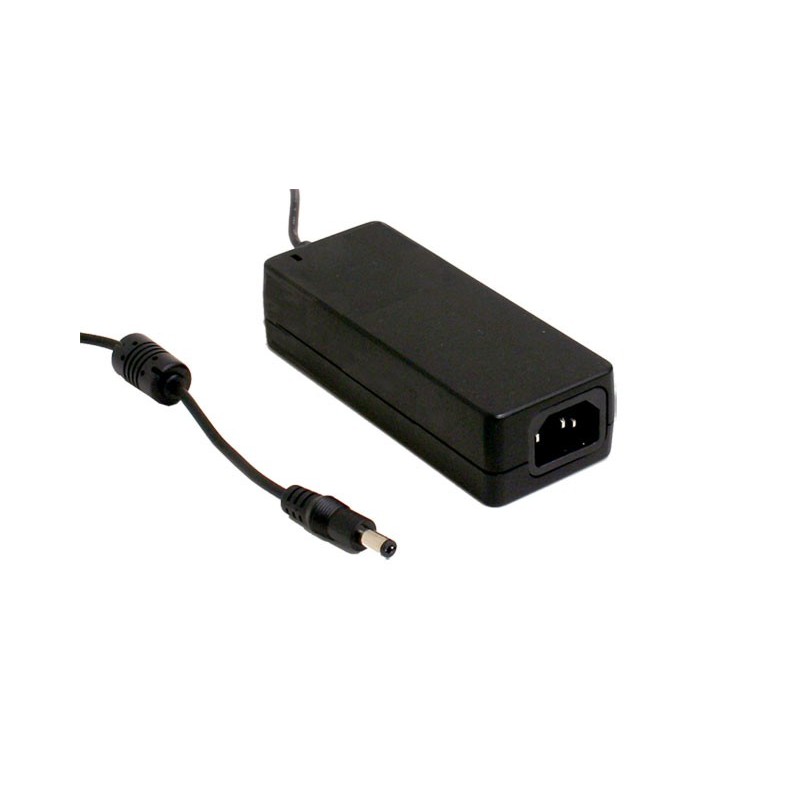

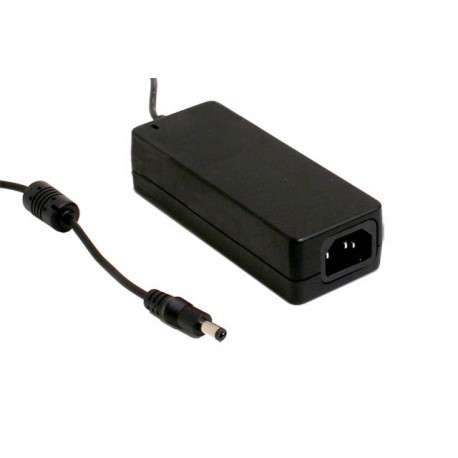

GST60A12-P1M MEANWELL AC-DC Industrial desktop adaptor, Output 12VDC / 5A, 3 pole AC inlet IEC320-C14, Outle..
GST60A12-P1M
MEANWELL
AC-DC Industrial desktop adaptor, Output 12VDC / 5A, 3 pole AC inlet IEC320-C14, Outlet P1M
ADAPTERS > GST
Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
Best sellers
▲More info
▲| Name | GST60A12-P1M |
|---|---|
| Long Description | Adapter type desktop. Format plastic box. Range of universal input90-264vac47-63Hz. Output voltage12vdc. Output intensity5A. Range of output current 0-5A according to demand load. Power:60W. Efficiency typical:89.5 per cent. Class l non-grounded. Consumption without load<0,075 W. Led indicator of operation. Working temperature: from-30up+70 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift. Dimensions (Length x Width x Height) [mm]:125 x 50 x 31.5. 3 years of warranty. Manufacturer: MEAN WELL. The GST series-these sources are switched in format desktop with input connector europeanIEC320-C14and output connector type Jack P1M. The series GST60 have a low consumption, no-load of only 0,075 W and comply with the latest energy efficiency requirements (Level Vl).
|
| Country of Origin | China |
| Manufacturer | MEAN WELL |
| Product type | Power supply AC/DC |
| Format | Desktop |
| Subformato | Encapsulated |
| Applications | Industrial, Telecommunications |
| Series | GST60 |
| Warranty (Years) | 3,00 |
| Height (mm) | 31.50 |
| Width (mm) | 50.00 |
| Long/Background | 125.00 |
| Type of Entry CA | Single-phase |
| AC input Min | 90,00 |
| AC input Max | 264,00 |
| Input frequency | 50 Hz, 60 Hz |
| Input connector | IEC 320-C14 |
| Output voltage | 12,00 |
| Power (W) | 60,00 |
| Peak Power (W) | Sixty |
| Output connector | P1M P1J Tunnig Fork 5.5 x 2.5 x 11. C+ |
| Isolation (V) | 3.000,00 |
| Approvals | BIS, BSMI, CCC, CE, EAC, KCC, PSE, RCM, SIRIM, TISI, TÜV, UL |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LED MEANWELL EN.pdf | 7 Mbytes |
|
| PDF CATALOGUE POWER SUPPLY MEANWELL EN.pdf | 9 Mbytes |
|
