GST40A24-P1J
MEANWELL
1
Available Ship on today

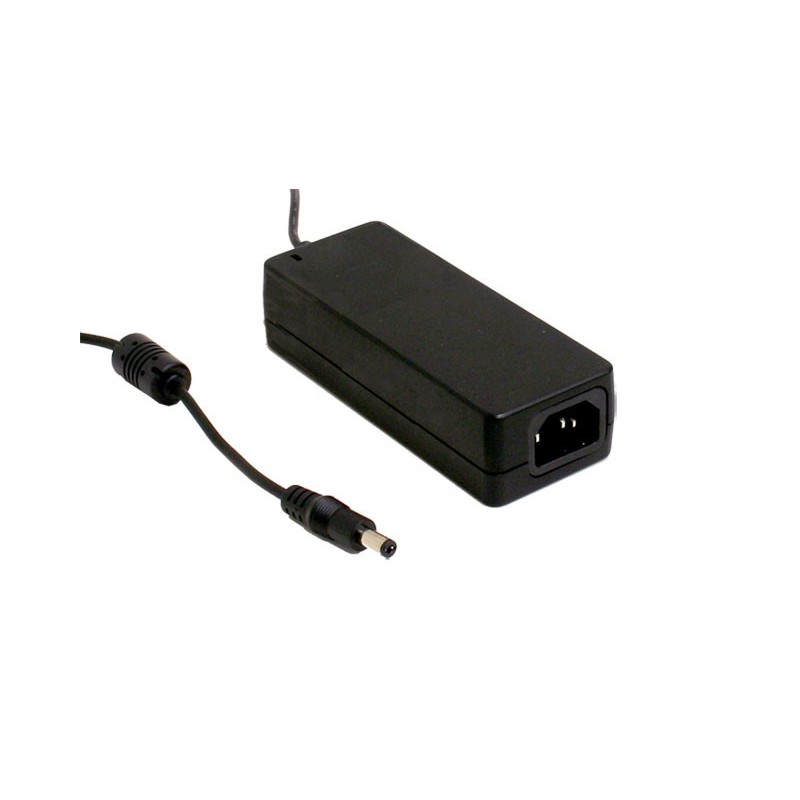

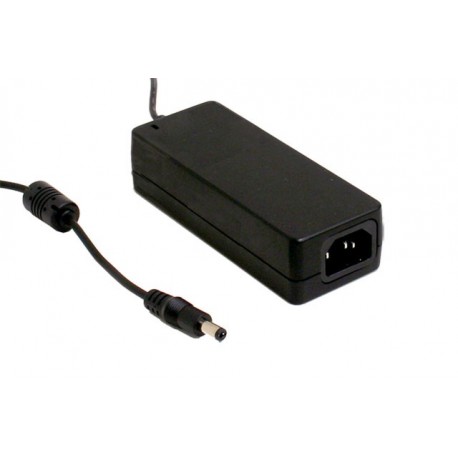

AC-DC Industrial desktop adaptor, Output 24VDC / 1.67A, 3 pole AC inlet IEC320-C14
ADAPTERS > GST
* Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Name | GST40A24-P1J |
---|---|
Long Description | Adapter type desktop. Format plastic box. Range of universal input90-264vac47-63Hz. Output voltage24vdc. Output intensity1,67 To. Range of current output 0-1,67 according To the demand load. Power:40W. Efficiency typical:91%. Class l non-grounded. Consumption without load<0,075 W. Led indicator of operation. Working temperature: from-30up+70 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift. Dimensions (Length x Width x Height) [mm]:125 x 50 x 31. 3 years of warranty. Manufacturer: MEAN WELL. The GST series-these sources are switched in format desktop with input connector europeanIEC320-C14and output connector Jack 5.5 x 2.1 x 11 mm (outer diameter, inner and length), and center positive. The series GST40 have a low consumption, no-load of only 0,075 W and comply with the latest energy efficiency requirements (Level Vl). Network Cable not included. |
Country of Origin | China |
Stock | Yes |
Manufacturer | MEAN WELL |
Product type | Power supply AC/DC |
Format | Desktop |
Subformato | Encapsulated |
Applications | Industrial, Telecommunications |
Series | GST40 |
State | Recommended Model |
Warranty (Years) | 3,00 |
Height (mm) | 31.50 |
Width (mm) | 50.00 |
Long/Background | 125.00 |
Type of Entry CA | Single-phase |
AC input Min | 90,00 |
AC input Max | 264,00 |
Input frequency | 50 Hz, 60 Hz |
Input connector | IEC 320-C14 |
Output voltage | 24,00 |
Power (W) | 40,00 |
Peak Power (W) | Forty |
Output connector | P1J Tunnig Fork 5.5 x 2.1 x 11. C+ |
Isolation (V) | 3.000,00 |
Approvals | BIS, BSMI, CCC, CE, EAC, KCC, PSE, RCM, SIRIM, TISI, UL |
Title: | Size: | Type: |
---|---|---|
PDF CATALOG MEANWELL EN.pdf | 10 Mbytes |
