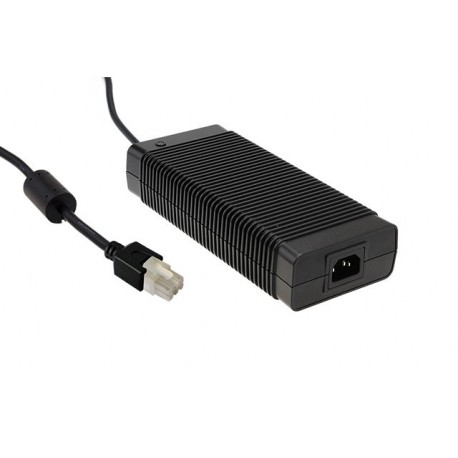

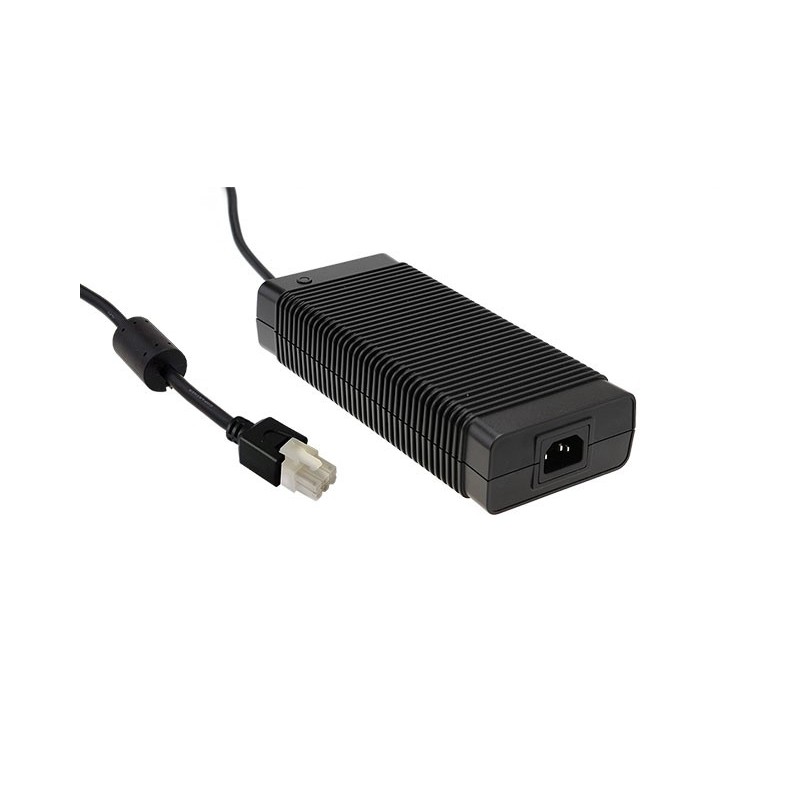

GST280A48-C6P MEANWELL AC-DC Industrial Desktop adaptor with PFC, Output 48VDC / 5.84A, 3 pole AC inlet IEC3..
GST280A48-C6P
MEANWELL
AC-DC Industrial Desktop adaptor with PFC, Output 48VDC / 5.84A, 3 pole AC inlet IEC320-C14
ADAPTERS > GST
Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
Best sellers
▲More info
▲| Name | GST280A48-C6P |
|---|---|
| Long Description | Adapter type desktop with PFC function. Format plastic box. Range of universal input85-264vac47-63Hz. Output voltage48vdc. Output intensity5,84 To. Range of output current of 0-5,84 according To the demand load. Power:280,3 W. Efficiency typical:94%. Factor corrector, power>0,95to 230vac at full load. Class l non-grounded. Consumption without load<0.5 W. Led indicator of operation. Working temperature: from-30up+70 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift. Dimensions (Length x Width x Height) [mm]:220 x 95 x 46. 3 years of warranty. Manufacturer: MEAN WELL. The GST series-these sources are switched in format desktop with input connector europeanIEC320-C14and output connector type C6P. The series GST280 have a low consumption at no load of just 0.5 W, and comply with the latest energy efficiency requirements (Level Vl). Network Cable not included.
|
| Country of Origin | China |
| Manufacturer | MEAN WELL |
| Product type | Power supply AC/DC |
| Format | Desktop |
| Subformato | Encapsulated |
| Applications | Industrial, Telecommunications |
| Series | GST280 |
| State | Recommended Model |
| Warranty (Years) | 3,00 |
| Height (mm) | 46.00 |
| Width (mm) | 95.00 |
| Long/Background | 220.00 |
| Type of Entry CA | Single-phase |
| AC input Min | 85,00 |
| AC input Max | 264,00 |
| Input frequency | 50 Hz, 60 Hz |
| Input connector | IEC 320-C14 |
| Output voltage | 48,00 |
| Power (W) | 280,30 |
| Peak Power (W) | 280.3 |
| Output connector | C6P |
| Isolation (V) | 3.000,00 |
| Approvals | BIS, BSMI, CCC, CE, EAC, KCC, PSE, RCM, SIRIM, TISI, TÜV, UL |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LED MEANWELL EN.pdf | 7 Mbytes |
|
| PDF CATALOGUE POWER SUPPLY MEANWELL EN.pdf | 9 Mbytes |
|
