MEANWELLADAPTERSGSTGST25B09-P1J MEANWELL AC-DC Industrial desktop adaptor, Output 9VDC / 2.55A, 2 pole AC inlet IEC320-C8

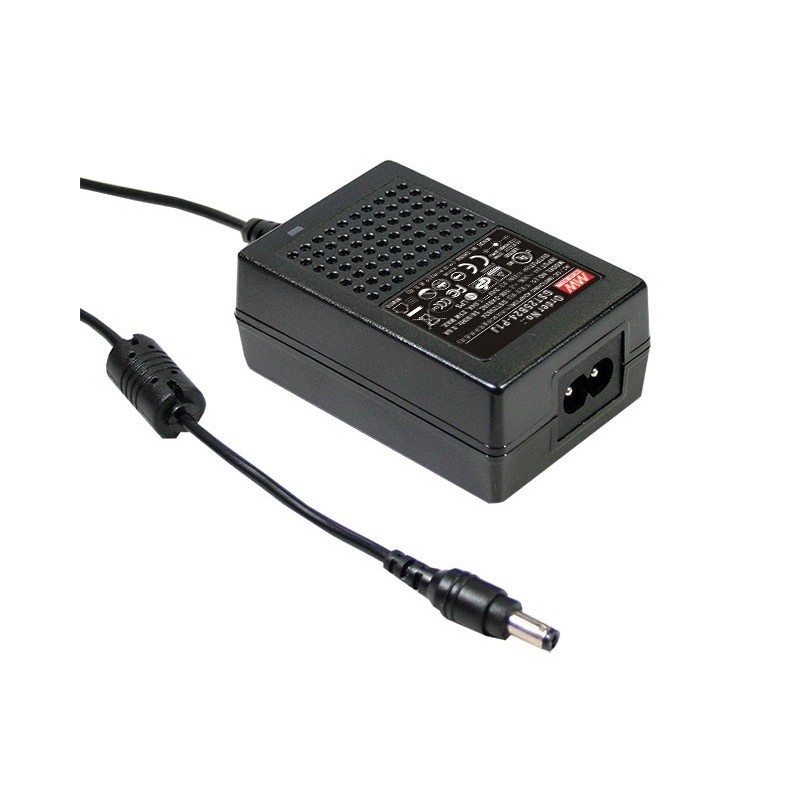

MEANWELL GST25B09-P1J GST25B09-P1J - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

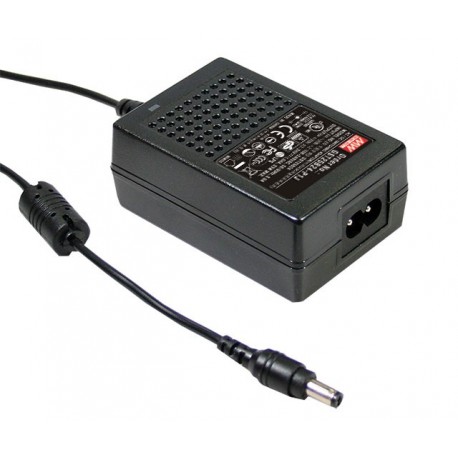

GST25B09-P1J MEANWELL AC-DC Industrial desktop adaptor, Output 9VDC / 2.55A, 2 pole AC inlet IEC320-C8

Reference: GST25B09-P1J

Manufacturer: MEANWELL

Description:

AC-DC Industrial desktop adaptor, Output 9VDC / 2.55A, 2 pole AC inlet IEC320-C8

Categories:

  • MEANWELL > ADAPTERS > GST

Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 16,14 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2-3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

NameGST25B09-P1J
Long Description

Adapter type desktop.

Format plastic box.

Range of universal input85-264vac47-63Hz.

Output voltage9Vcc.

Output intensity2,77 To. Range of output current 0-2,77 according To the demand load.

Power:25W.

Efficiency typical:82.5 per cent.

Class ll without the taking of land.

Consumption without load<0,075 W.

Led indicator of operation.

Working temperature: from-30up+70 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift.

Dimensions (Length x Width x Height) [mm]:79 x 54 x 33.

3 years of warranty.

Manufacturer: MEAN WELL.

The GST series-B are commuting sources in format desktop with input connector europeanIEC320-C8and output connector Jack 5.5 x 2.1 x 11 mm (outer diameter, inner and length), and center positive.

The series GST25 have a low consumption, no-load of only 0,075 W and comply with the latest energy efficiency requirements (Level Vl).

Network Cable not included.

YP21AYC13

Country of OriginChina
ManufacturerMEAN WELL
Product typePower supply AC/DC
FormatDesktop
SubformatoEncapsulated
ApplicationsIndustrial, Telecommunications
SeriesGST25
StateRecommended Model
Warranty (Years)3,00
Height (mm)33.00
Width (mm)54.00
Long/Background79.00
Type of Entry CASingle-phase
AC input Min85,00
AC input Max264,00
Input frequency50 Hz, 60 Hz
Input connectorIEC 320-C8
Output voltage9,00
Power (W)25,00
Peak Power (W)Twenty five
Output connectorP1J Tunnig Fork 5.5 x 2.1 x 11. C+
Isolation (V)4.242,00
ApprovalsBIS, BSMI, CCC, CE, EAC, KCC, PSE, RCM, SIRIM, TISI, UL
