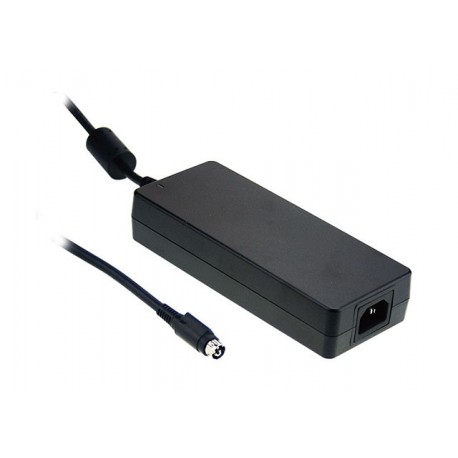

GST160A36-R7B
MEANWELL
1
AC-DC Industrial desktop adaptor with PFC, Output 36VDC / 4.44A, 3 pole AC inlet IEC320-C14
ADAPTERS > GST
* Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Name | GST160A36-R7B |
---|---|
Long Description | Source Switched type desktop adapter. Range of Universal Input85-264vac47-63Hz. Output voltage36Vcc. Output intensity4.4 A. Range of output current 0-4,4 To according to demand load. Power:160W. Power input connectorIEC320-C14. Output connector typeDIN 4-pin(other connectors available with minimum quantities). Active PFC >of 0.91 to 230vac >0.95 at 115vac. Temperature range: From-30to +70 ° C (refer to load levels according to the ambient temperature in the technical data sheet) Protections: short circuits, overloads, and overvoltage output and temperature. LED Indicator of correct operation. Class I Insulation with earth. Dimensions (Length x Width x Height) [mm]:175 x 72 x 35. 3 years of warranty. Manufacturer: MEAN WELL. The series GST160 these sources are switched in the format of a desktop of high reliability, high efficiency and low consumption without load (<0.15 W). Are certified CE (Europe), UL (for united States and Canada), BSMI (for Taiwan), CCC (China), PSE (for Japan), RCM (Australia and New Zealand), KCC (Korea), BIS (India), EAC (Russia, Belarus, Armenia andKazakhstan), SIRIM (Malaysia) and holds certification CB, and TUV. This, coupled with their high efficiency and minimum consumption, no-load make them perfect for all types of applications. Network Cable not included. |
Country of Origin | China |
Manufacturer | MEAN WELL |
Product type | Power supply AC/DC |
Format | Desktop |
Applications | Industrial, Telecommunications |
Series | GST160 |
State | Recommended Model |
Warranty (Years) | 3,00 |
Height (mm) | 35.00 |
Width (mm) | 72.00 |
Long/Background | 175.00 |
Type of Entry CA | Single-phase |
AC input Min | 85,00 |
AC input Max | 264,00 |
Input frequency | 50 Hz, 60 Hz |
Input connector | IEC 320-C14 |
Output voltage | 36,00 |
Power (W) | 160,00 |
Peak Power (W) | One hundred sixty |
Output connector | R7B DIN 4p |
Isolation (V) | 3.000,00 |
Approvals | BIS, BSMI, CCC, CE, EAC, KCC, PSE, RCM, SIRIM, TISI, TÜV, UL |
Title: | Size: | Type: |
---|---|---|
PDF CATALOGUE LED MEANWELL EN.pdf | 5 Mbytes | |
PDF CATALOGUE POWER SUPPLY MEANWELL EN.pdf | 7 Mbytes |
