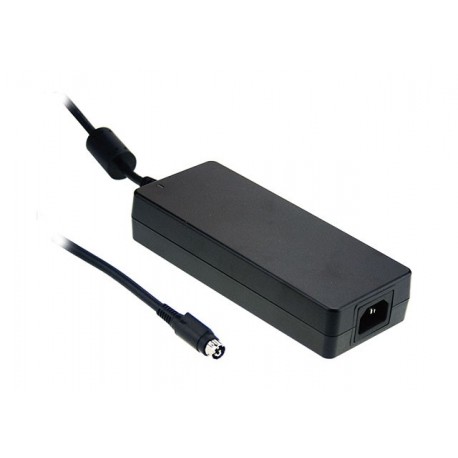

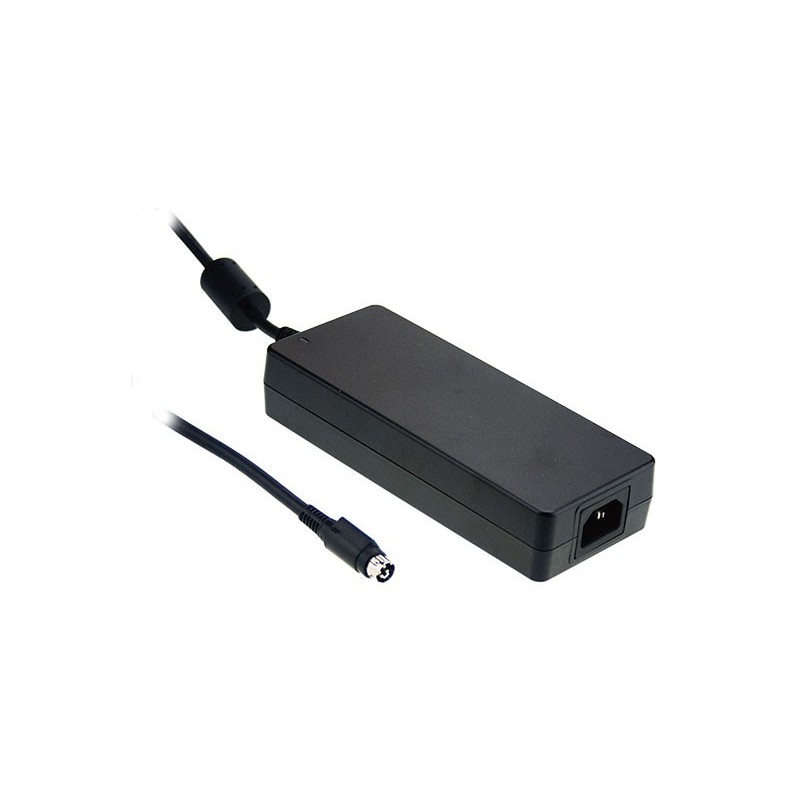

GST160A20-R7B MEANWELL AC-DC Industrial desktop adaptor with PFC, Output 20VDC / 8A, 3 pole AC inlet IEC320-..

Source Switched type desktop adapter.

Range of Universal Input85-264vac47-63Hz.

Output voltage20vdc.

Output intensity8A. Range of output current 0-8A according to demand load.

Power:160W.

Power input connectorIEC320-C14.

Output connector typeDIN 4-pin(other connectors available with minimum quantities).

Active PFC >of 0.91 to 230vac >0.95 at 115vac.

Temperature range: From-30up+70(refer to the load levels according to the ambient temperature in the technical data sheet)

Protections: short circuits, overloads, and overvoltage output and temperature.

LED Indicator of correct operation.

Class I Insulation with earth.

Dimensions (Length x Width x Height) [mm]:175 x 72 x 35.

3 years of warranty.

Manufacturer: MEAN WELL.

The series GST160 these sources are switched in the format of a desktop of high reliability, high efficiency and low consumption without load (<0.15 W).
These feeders desktop complies with the latest requirements of energy efficiency and ecological design as are EISA 2007/us DoE to the united States, NR CAN Canada, the MEPS for Australia and New Zealand and the code of conduct (CoC) Version 5 for Europe.

Are certified CE (Europe), UL (for united States and Canada), BSMI (for Taiwan), CCC (China), PSE (for Japan), RCM (Australia and New Zealand), KCC (Korea), BIS (India), EAC (Russia, Belarus, Armenia andKazakhstan), SIRIM (Malaysia) and holds certification CB, and TUV. This, coupled with their high efficiency and minimum consumption, no-load make them perfect for all types of applications.

Network Cable not included.
