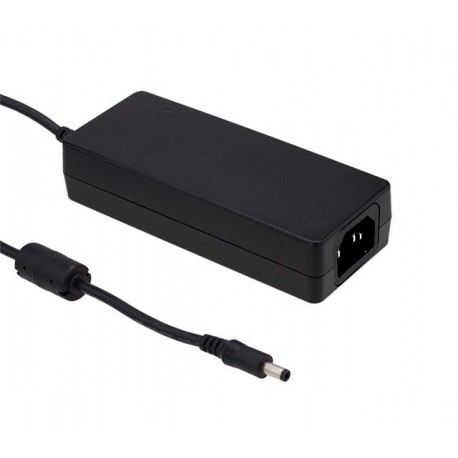

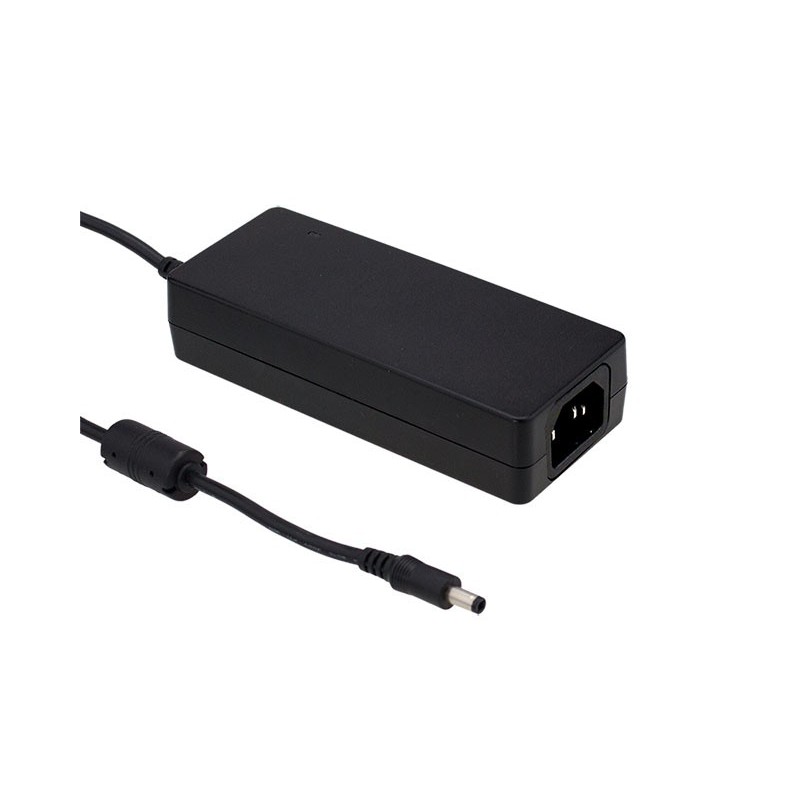

GSM90A12-P1M MEANWELL AC-DC Medical desktop adaptor, Output 12VDC / 6.67A, AC 3 pole IEC inlet, EN60601 2xMO..
GSM90A12-P1M
MEANWELL
AC-DC Medical desktop adaptor, Output 12VDC / 6.67A, AC 3 pole IEC inlet, EN60601 2xMOPP, Output connector DIN 4 pole
ADAPTERS > GSM
Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
Best sellers
▲More info
▲| Name | GSM90A12-P1M |
|---|---|
| Long Description | Source switched type desktop adapter with PFC function. Fuentrecertified for medical applications2x MOPP (patient protection). Feeder for connection to a wall outlet. Range of universal input80-264vac47-63Hz. Output voltage12vdc. Output intensity6,67 To. Range of output current 0-6,67 according To the demand load. Power:80W. Efficiency typical:88%. Factor corrector, power>0,91to 230vac at full load. Class l non-grounded. Consumption without load<0,15 W. Working temperature: from-30up+70 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift. Dimensions (Length x Width x Height) [mm]:145 x 60 x 32. 3 years of warranty. Manufacturer: MEAN WELL. Series, GSM-A, are the sources switched in format desktop with input connector europeanIEC320-C14and output connector Jack 5.5 x 2.5 x 11 mm (outer diameter, inner and length), and center positive. The series GSM90 have a low consumption, no-load of only 0.15 W and meet the latest requirements of energy efficiency.
|
| Country of Origin | China |
| Manufacturer | MEAN WELL |
| Product type | Power supply AC/DC |
| Format | Desktop |
| Subformato | Encapsulated |
| Applications | Industrial, Medical, Telecommunications |
| Series | GSM90A |
| Warranty (Years) | 3,00 |
| Height (mm) | 32.00 |
| Width (mm) | 60.00 |
| Long/Background | 145.00 |
| Type of Entry CA | Single-phase |
| AC input Min | 80,00 |
| AC input Max | 264,00 |
| Input frequency | 50 Hz, 60 Hz |
| Input connector | IEC 320-C14 |
| Output voltage | 12,00 |
| Power (W) | 80,00 |
| Peak Power (W) | Eighty |
| Output connector | P1M P1J Tunnig Fork 5.5 x 2.5 x 11. C+ |
| Isolation (V) | 4.000,00 |
| Approvals | CE, UL |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LED MEANWELL EN.pdf | 7 Mbytes |
|
| PDF CATALOGUE POWER SUPPLY MEANWELL EN.pdf | 9 Mbytes |
|
