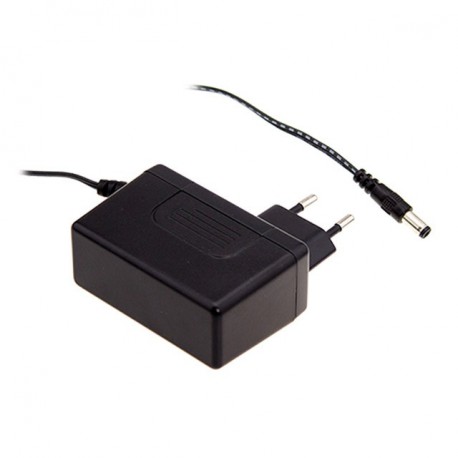

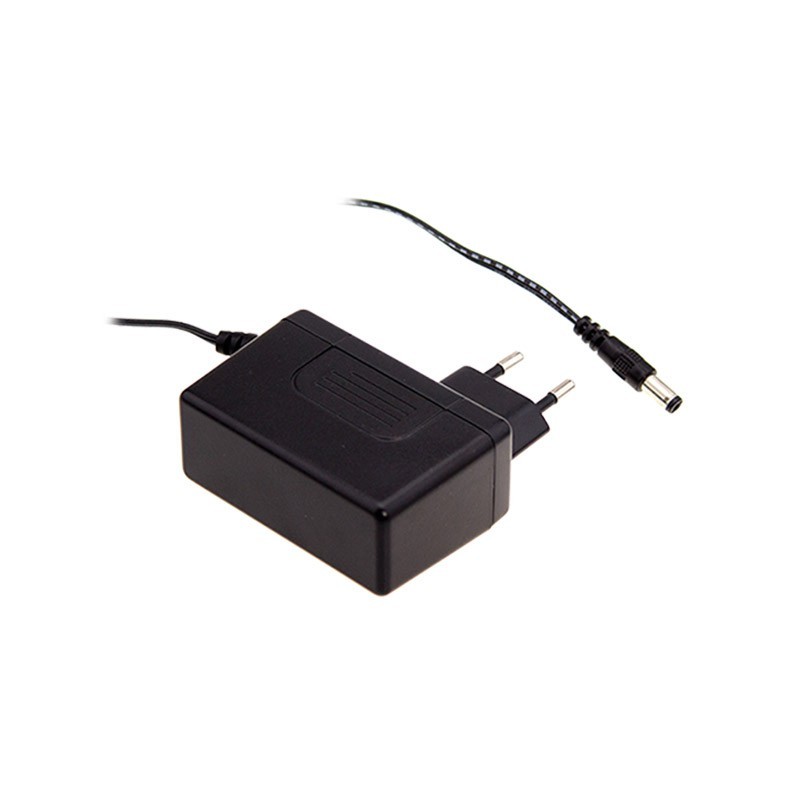

GSM60E24-P1J MEANWELL AC-DC Ultra slim Wall mount medical adaptor, Output 24VDC / 2.5A, Equipped with 2 pin ..
GSM60E24-P1J
MEANWELL
AC-DC Ultra slim Wall mount medical adaptor, Output 24VDC / 2.5A, Equipped with 2 pin European plug, 2xMOPP
ADAPTERS > GSM
* Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
Best sellers
▲More info
▲| Name | GSM60E24-P1J |
|---|---|
| Long Description | Compact wall adapter with input plug for Europe. Adaptercertified for medical applications2x MOPP (patient protection). Feeder for connection to a wall outlet. Range of universal input80-264vac47-63Hz. Output voltage24vdc. Output intensity2.5 To. Range of output current 0-2,5 a according To demand load. Power:60W. Efficiency typical:88%. Class Il without the taking of land. Consumption without load<0,15 W. Working temperature: from-30up+70 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift. Dimensions (Length x Width x Height) [mm]:75,5 x 32 x 47,5. 3 years of warranty. Manufacturer: MEAN WELL. The series GSM60-E are sources switched compact for connection to a wall socket, with input connector europeanIEC320-C14and output connector Jack 5.5 x 2.1 x 11 mm (outer diameter, inner and length), and center positive. (Level VI). The series GSM60 have a low consumption, no-load of only 0.15 W and meet the latest requirements of energy efficiency. |
| Country of Origin | Taiwan |
| Manufacturer | MEAN WELL |
| Product type | Power supply AC/DC |
| Format | Wall |
| Subformato | Narrow |
| Applications | Industrial, Medical, Telecommunications |
| Series | GSM60U/E |
| State | New |
| Warranty (Years) | 3,00 |
| Height (mm) | 47.5 |
| Width (mm) | Thirty two |
| Long/Background | 75.5 |
| Type of Entry CA | Single-phase |
| AC input Min | 80,00 |
| AC input Max | 264,00 |
| Input frequency | 50 Hz, 60 Hz |
| Input connector | European Plug |
| Output voltage | 24,00 |
| Power (W) | 60,00 |
| Peak Power (W) | Sixty |
| Output connector | P1J Tunnig Fork 5.5 x 2.1 x 11. C+ |
| Isolation (V) | 5.656,00 |
| Approvals | EC, EAC, EN60601 3rd Edition |
