GSM60E09-P1J
MEANWELL
1

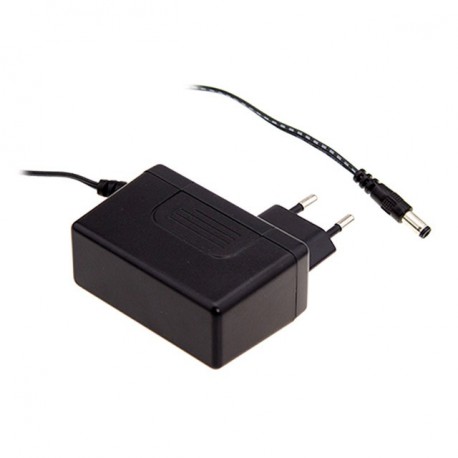

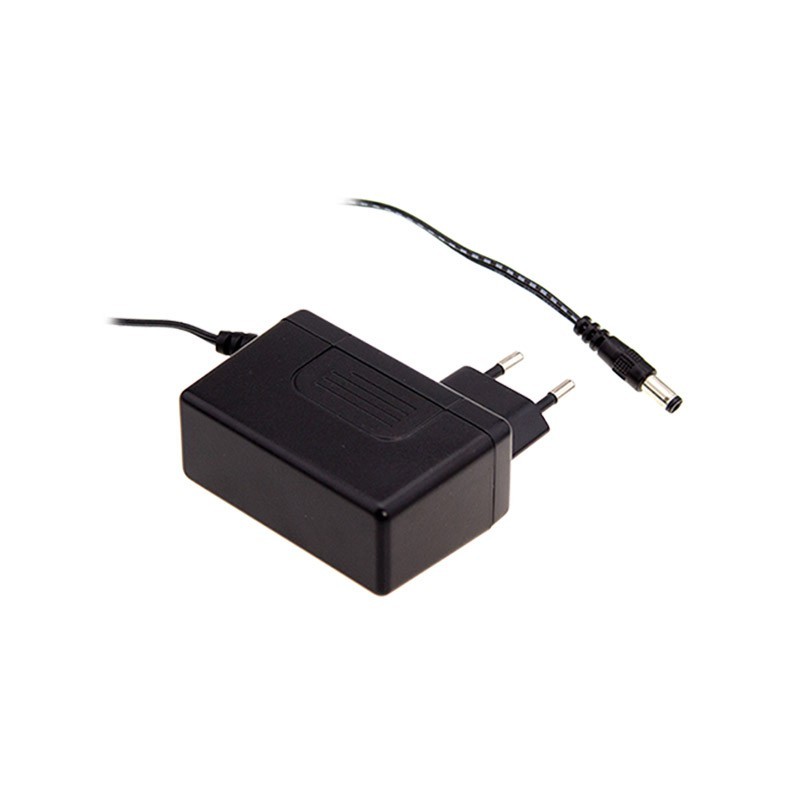

AC-DC Ultra slim Wall mount medical adaptor, Output 9VDC / 5.5A, Equipped with 2 pin European plug, 2xMOPP
ADAPTERS > GSM
* Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Name | GSM60E09-P1J |
---|---|
Long Description | Compact wall adapter with input plug for Europe. Adaptercertified for medical applications2x MOPP (patient protection). Feeder for connection to a wall outlet. Range of universal input80-264vac47-63Hz. Output voltage9Vcc. Output intensity5.5 To. Range of output current of 0-5,5 according To the demand load. Power:49,5 W. Efficiency typical:87%. Class lI without the taking of land. Consumption without load<0,15 W. Working temperature: from-30up+70 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift. Dimensions (Length x Width x Height) [mm]:75,5 x 32 x 47,5. 3 years of warranty. Manufacturer: MEAN WELL. The series GSM60-E are sources switched compact for connection to a wall socket, with input connector europeanIEC320-C14and output connector Jack 5.5 x 2.1 x 11 mm (outer diameter, inner and length), and center positive. (Level V). The series GSM60 have a low consumption, no-load of only 0.15 W and meet the latest requirements of energy efficiency. |
Country of Origin | Taiwan |
Manufacturer | MEAN WELL |
Product type | Power supply AC/DC |
Format | Wall |
Subformato | Narrow |
Applications | Industrial, Medical, Telecommunications |
Series | GSM60U/E |
State | New |
Warranty (Years) | 3,00 |
Height (mm) | 47.5 |
Width (mm) | Thirty two |
Long/Background | 75.5 |
Type of Entry CA | Single-phase |
AC input Min | 80,00 |
AC input Max | 264,00 |
Input frequency | 50 Hz, 60 Hz |
Input connector | European Plug |
Output voltage | 9,00 |
Power (W) | 49,50 |
Peak Power (W) | 49.5 |
Output connector | P1J Tunnig Fork 5.5 x 2.1 x 11. C+ |
Isolation (V) | 5.656,00 |
Approvals | EC, EAC, EN60601 3rd Edition |
Title: | Size: | Type: |
---|---|---|
PDF CATALOGUE LED MEANWELL EN.pdf | 5 Mbytes | |
PDF CATALOGUE POWER SUPPLY MEANWELL EN.pdf | 7 Mbytes |
