MEANWELLADAPTERSGSMGSM220B12-R7B MEANWELL AC-DC Medical desktop adaptor with Active PFC, Input 2 pin IEC320-C8 socket, Output 1..

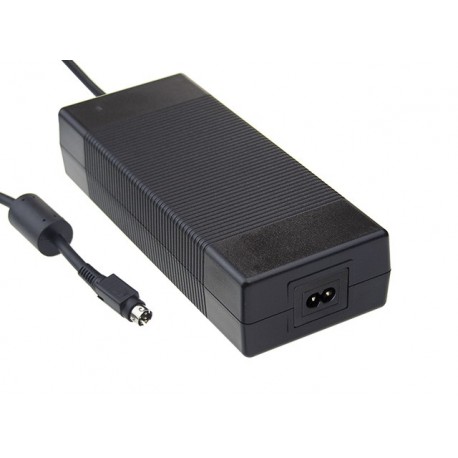

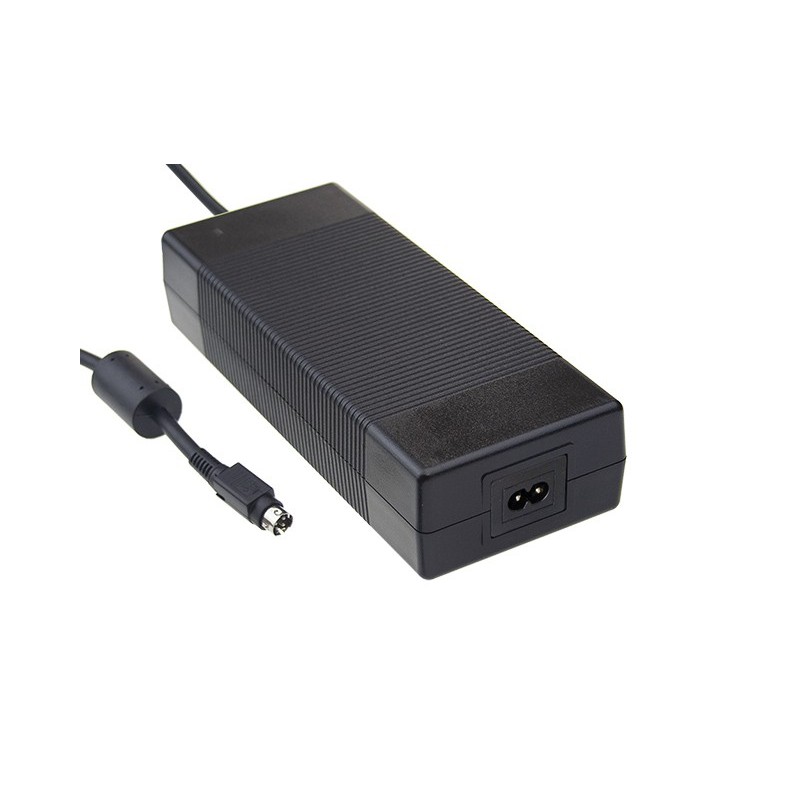

MEANWELL GSM220B12-R7B GSM220B12-R7B - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

GSM220B12-R7B MEANWELL AC-DC Medical desktop adaptor with Active PFC, Input 2 pin IEC320-C8 socket, Output 1..

Reference: GSM220B12-R7B

Manufacturer: MEANWELL

Description:

AC-DC Medical desktop adaptor with Active PFC, Input 2 pin IEC320-C8 socket, Output 12VDC / 15A with DIN 4 pin plug with lock, EN60601 2xMOPP, Class I

Categories:

  • MEANWELL > ADAPTERS > GSM

Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 81,38 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2-3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

NameGSM220B12-R7B
Long Description

Source switched type desktop adapter with PFC function.

Fuentrecertified for medical applications2x MOPP (patient protection).

Feeder for connection to a wall outlet.

Range of universal input80-264vac47-63Hz.

Output voltage12vdc.

Output intensity15A. Range of output current 0-15A according to demand load.

Power:180W.

Efficiency typical:90%.

Factor corrector, power>0,91to 230vac at full load.

LED Indicator of correct operation.

Class l non-grounded.

Consumption without load<0,15 W.

Working temperature: from-30up+70 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift.

Dimensions (Length x Width x Height) [mm]:210 x 85 x 46.

3 years of warranty.

Manufacturer: MEAN WELL.

Series GSM-B are commuting sources in format desktop with input connector europeanIEC320-C8and output connector R7B DIN 4p(Level Vl).

The series GSM220 have a low consumption, no-load of only 0.15 W and meet the latest requirements of energy efficiency.

Country of OriginChina
ManufacturerMEAN WELL
Product typePower supply AC/DC
FormatDesktop
SubformatoEncapsulated
ApplicationsIndustrial, Medical, Telecommunications
SeriesGSM220B
Warranty (Years)3,00
Height (mm)46.00
Width (mm)85.00
Long/Background210.00
Type of Entry CASingle-phase
AC input Min80,00
AC input Max264,00
Input frequency50 Hz, 60 Hz
Input connectorIEC 320-C8
Output voltage12,00
Power (W)180,00
Peak Power (W)One hundred eighty
Output connectorR7B DIN 4p
Isolation (V)4.000,00
ApprovalsCE, UL
