GSM220A12-R7B
MEANWELL
1
Available Ship on today

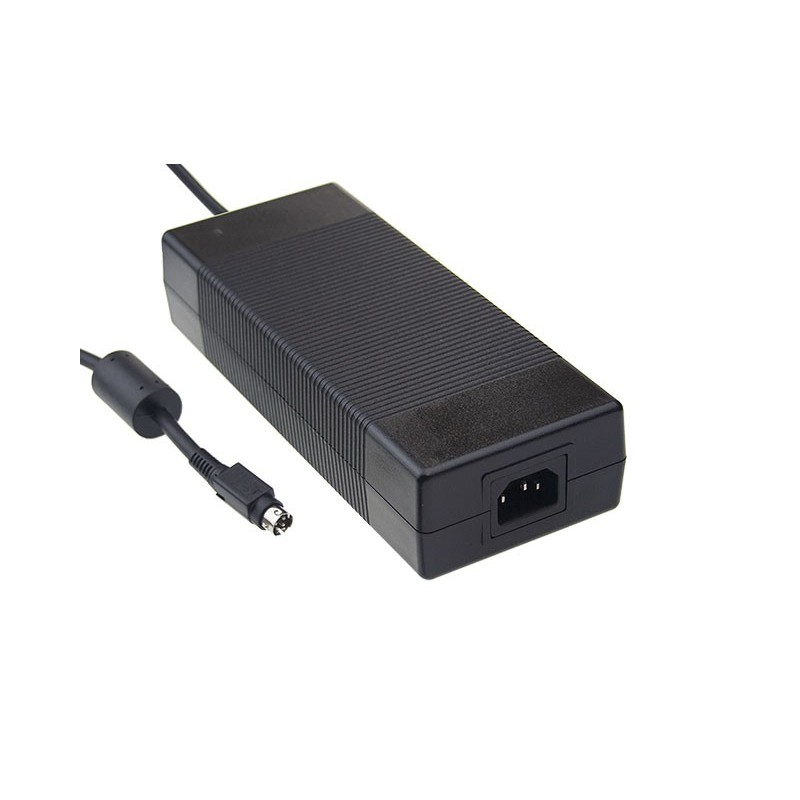

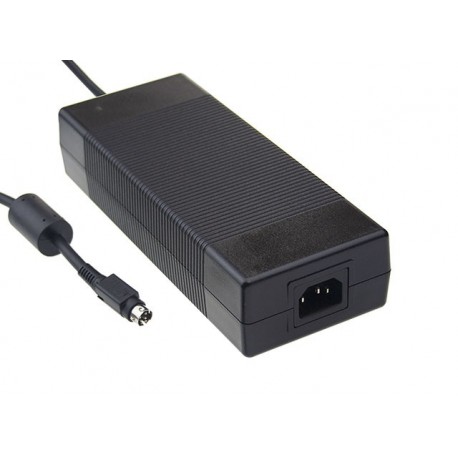

AC-DC Medical desktop adaptor with Active PFC, Input 3 pin IEC320-C14 socket, Output 12VDC / 15A with DIN 4 pin plug with lock, EN60601 2xMOPP, Class I
ADAPTERS > GSM
* Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Name | GSM220A12-R7B |
---|---|
Long Description | Source switched type desktop adapter with PFC function. Fuentrecertified for medical applications2x MOPP (patient protection). Feeder for connection to a wall outlet. Range of universal input80-264vac47-63Hz. Output voltage12vdc. Output intensity15A. Range of output current 0-15A according to demand load. Power:180W. Efficiency typical:90%. Factor corrector, power>0,91to 230vac at full load. LED Indicator of correct operation. Class l non-grounded. Consumption without load<0,15 W. Working temperature: from-30up+70 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift. Dimensions (Length x Width x Height) [mm]:210 x 85 x 46. 3 years of warranty. Manufacturer: MEAN WELL. Series, GSM-A, are the sources switched in format desktop with input connector europeanIEC320-C14and output connector R7B DIN 4p(Level Vl). The series GSM220 have a low consumption, no-load of only 0.15 W and meet the latest requirements of energy efficiency.
|
Country of Origin | China |
Manufacturer | MEAN WELL |
Product type | Power supply AC/DC |
Format | Desktop |
Subformato | Encapsulated |
Applications | Industrial, Medical, Telecommunications |
Series | GSM220A |
Warranty (Years) | 3,00 |
Height (mm) | Forty six |
Width (mm) | Eighty five |
Long/Background | Two hundred ten |
Type of Entry CA | Single-phase |
AC input Min | 80,00 |
AC input Max | 264,00 |
Input frequency | 50 Hz, 60 Hz |
Input connector | IEC 320-C14 |
Output voltage | 12,00 |
Power (W) | 180,00 |
Peak Power (W) | One hundred eighty |
Output connector | R7B DIN 4p |
Isolation (V) | 4.000,00 |
Approvals | CE, UL |
