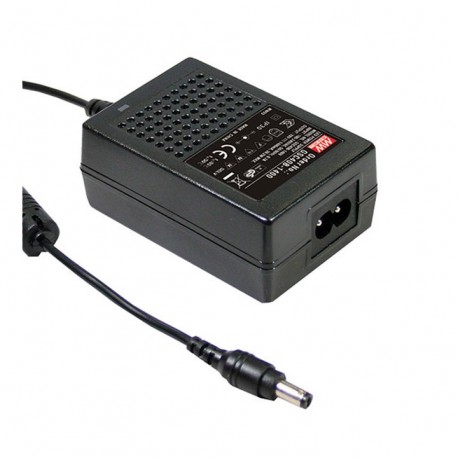

GSC40B-700 MEANWELL AC-DC Single output desktop LED power supply (CC) with PFC, Output 58VDC / 0.7A, 2 pole ..
GSC40B-700
MEANWELL
AC-DC Single output desktop LED power supply (CC) with PFC, Output 58VDC / 0.7A, 2 pole AC IEC320-C8 input connector
LED DRIVERS
Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
Best sellers
▲More info
▲| Name | GSC40B-700 |
|---|---|
| Long Description | Led driver type desktop. Specially designed for powering LEDs directly in a steady stream. Format plastic box.IP40. Range of universal input90-277Vca47-63Hz. Output in constant current700mA. Range of output voltage with current mode constant29 to 58Vccaccording to demand load. Power:40,4 W. Efficiency typical:88.5 per cent. Class ll without the taking of land. Factor corrector, power>0,92to 230vac at full load. Consumption without load<0,15 W. Operating temperature range of caseTcfrom-30ºCup+50ºC. Dimensions (Length x Width x Height):79 x 54 x 33mm. 3 years warranty. Manufacturer: MEAN WELL. The series GSC-B is a feeder table top LED 40W with PFC included. With input connector europeanIEC320-C8and output connector Jack 5.5 x 2.1 x 11 mm (outer diameter, inner and length), and center positive. Have low consumption and meet the requirements of lighting and power harmonics Class C. Network Cable not included. |
| Country of Origin | Taiwan |
| Manufacturer | MEAN WELL |
| Product type | LED Driver |
| Format | Desktop |
| Subformato | IP40 |
| Applications | Lighting |
| Series | GSC40 |
| Warranty (Years) | 3,00 |
| Height (mm) | 33.00 |
| Width (mm) | 54.00 |
| Long/Background | 79.00 |
| Type of Entry CA | Single-phase |
| AC input Min | 90,00 |
| AC input Max | 277,00 |
| Input frequency | 50 Hz, 60 Hz |
| Input connector | IEC 320-C8 |
| Intensity of Minimum Output (mA) | 700,00 |
| Intensity of Output Maximum (mA) | 700,00 |
| Output current mA | Seven hundred |
| Power (W) | 40,40 |
| Peak Power (W) | 40.4 |
| Output connector | P1J Tunnig Fork 5.5 x 2.1 x 11. C+ |
| Isolation (V) | 3.750,00 |
| Approvals | CCC, CE, ENEC |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LED MEANWELL EN.pdf | 7 Mbytes |
|
| PDF CATALOGUE POWER SUPPLY MEANWELL EN.pdf | 9 Mbytes |
|
