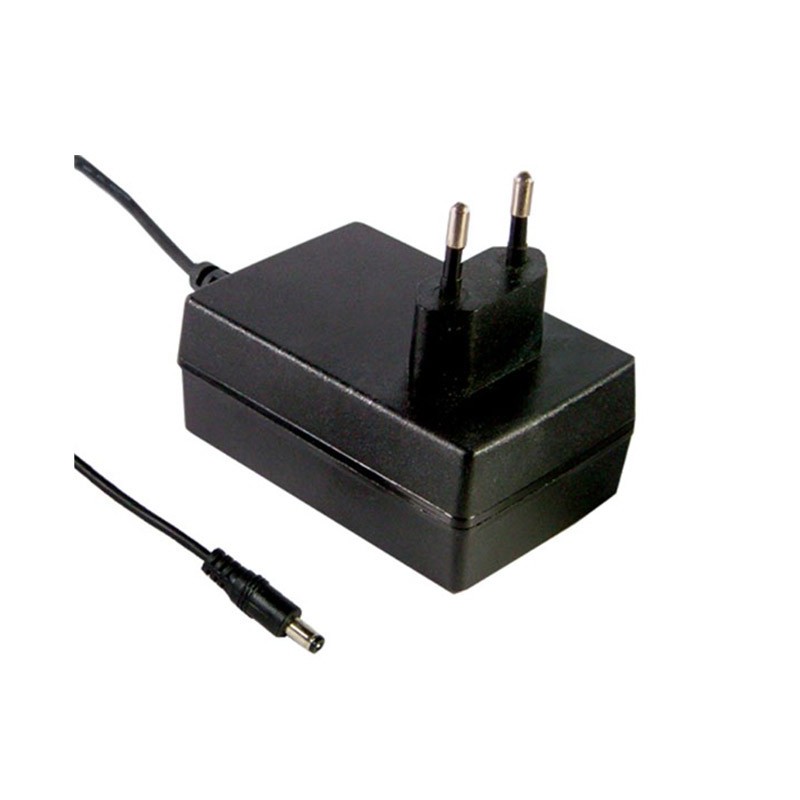

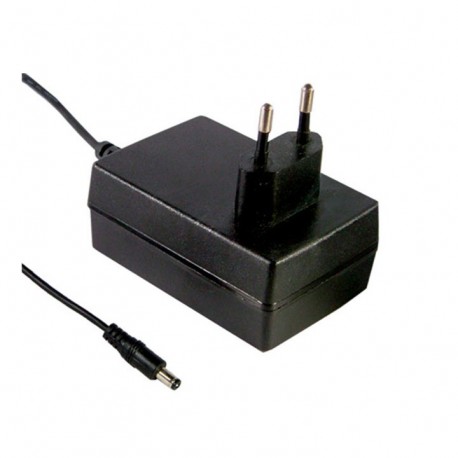

GSC18E-1050 MEANWELL AC-DC Single output wall mount LED power supply (CC) with PFC, Output 26VDC / 0.7A, 2 p..
Reference: GSC18E-1050
Manufacturer: MEANWELL
Description:
AC-DC Single output wall mount LED power supply (CC) with PFC, Output 26VDC / 0.7A, 2 pole AC Euro plug
Categories:
- MEANWELL > LED DRIVERS
Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
- More Info
- Reviews
* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
MORE INFO
| Name | GSC18E-1050 |
|---|---|
| Long Description | LED driver wall. Specially designed for powering LEDs directly in a steady stream. Format plastic box.IP40. Feeder for connection to a wall outlet. Range of universal input90-277Vca47-63Hz. Output in constant current1050mA. Range of output voltage in mdo constant current of8 to 17Vccaccording to demand load. Power:To 17.9 W. Efficiency typical:87%. Class ll without the taking of land. Factor corrector, power>0,92to 230vac at full load. Consumption without load<0,15 W. Operating temperature range of caseTcfrom-30ºCup+50ºC. Dimensions (Length x Width x Height):79 x 54 x 33mm. 3 years warranty. Manufacturer: MEAN WELL. The series GSC-E are feeders in the format of a wallLED 18W with PFC included. With input plug european jack type output Jack 5.5 x 2.1 x 11 mm (outer diameter, inner and length), and center positive. Have low consumption and meet the requirements of lighting and power harmonics Class C. |
| Country of Origin | Taiwan |
| Manufacturer | MEAN WELL |
| Product type | LED Driver |
| Format | Wall |
| Subformato | IP40 |
| Applications | Lighting |
| Series | GSC18 |
| Warranty (Years) | 3,00 |
| Height (mm) | 33.00 |
| Width (mm) | 54.00 |
| Long/Background | 79.00 |
| Type of Entry CA | Single-phase |
| AC input Min | 90,00 |
| AC input Max | 277,00 |
| Input frequency | 50 Hz, 60 Hz |
| Input connector | European Plug |
| Intensity of Minimum Output (mA) | 1.050,00 |
| Intensity of Output Maximum (mA) | 1.050,00 |
| Output current mA | One thousand fifty |
| Power (W) | 17,90 |
| Peak Power (W) | 17.9 |
| Output connector | P1J Tunnig Fork 5.5 x 2.1 x 11. C+ |
| Isolation (V) | 3.750,00 |
| Approvals | CE, ENEC |
