MEANWELLADAPTERSGP25A13D-R1B MEANWELL AC-DC Triple Output Industrial adaptor, Input with 3 pole IEC320-C14 socket Output 5VD..

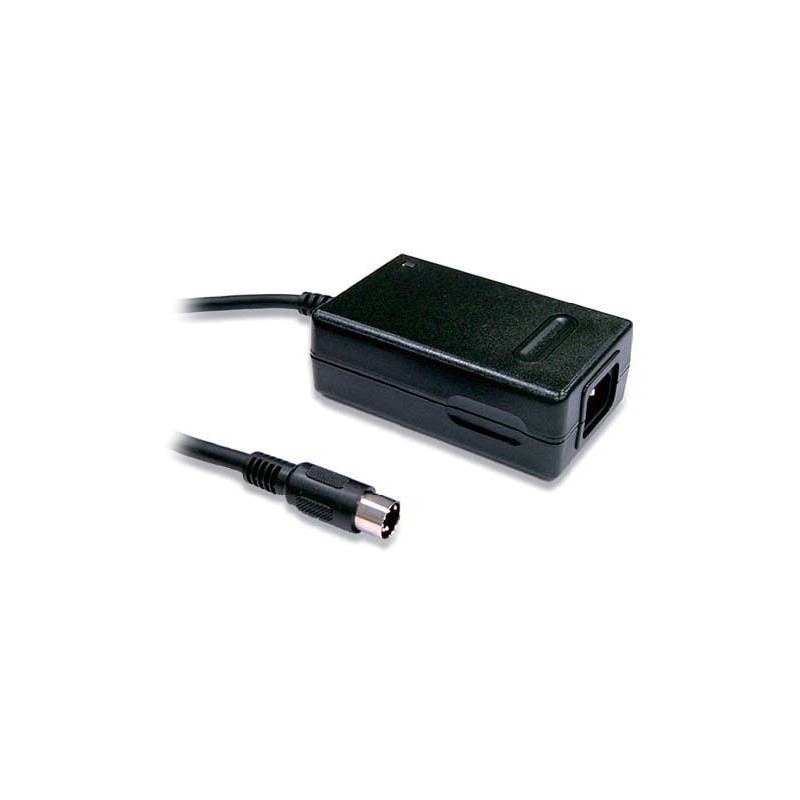

MEANWELL GP25A13D-R1B GP25A13D-R1B - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

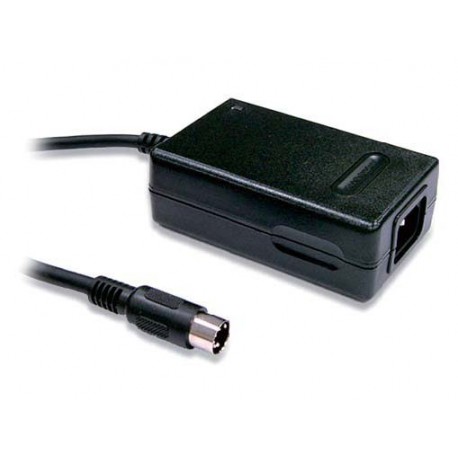

GP25A13D-R1B MEANWELL AC-DC Triple Output Industrial adaptor, Input with 3 pole IEC320-C14 socket Output 5VD..

Reference: GP25A13D-R1B

Manufacturer: MEANWELL

Description:

AC-DC Triple Output Industrial adaptor, Input with 3 pole IEC320-C14 socket Output 5VDC / 2.5A, 12VDC / 1A, -12VDC / 0.3A with DIN 5 pin plug: Class I

Categories:

  • MEANWELL > ADAPTERS

Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 40,90 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2-3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

NameGP25A13D-R1B
Long Description

Source Switched type desktop adapter.

Range of Universal Input90-264vac47-63Hz.

Output:

-12vdc:

      • Minimum intensity of output0.1 To.
      • Maximum output current0,3Amps.

+5vdc:

      • Minimum intensity of output0.5 To.
      • Maximum output current2,5Amps.

+12vdc:

      • Minimum intensity of output0.2 To.
      • Maximum output currentOneAmps.

Power:28W.

Efficiency typical:Eighty%.

Class I Insulation with earth.

Consumption without load<0,3 W.

Working temperature: from-20up+70 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift.

Dimensions (Length x Width x Height) [mm]:107,5 x 67 x 36.

3 years of warranty.

Manufacturer: MEAN WELL.

The GP series are some of the sources switched in format desktop with input connector europeanIEC320-C14and output connector type Jack R1B: DIN5P standard.

The series GP25 have a low consumption, no-load of only 0.3 W, and comply with the latest energy efficiency requirements (Level Vl).

Country of OriginChina
ManufacturerMEAN WELL
Product typePower supply AC/DC
FormatDesktop
SubformatoEncapsulated
ApplicationsIndustrial, Telecommunications
SeriesGP25A/B
StateNew
Warranty (Years)3,00
Height (mm)36.00
Width (mm)67.00
Long/Background107.50
Type of Entry CASingle-phase
AC input Min90,00
AC input Max264,00
Input frequency50 Hz, 60 Hz
Input connectorIEC 320-C14
You Need To Load MinimumYes
Output 1-12
Output 2+5
Output 3+12
Power (W)28,00
Peak Power (W)Twenty eight
Output connectorR1B
Isolation (V)4.242,00
ApprovalsCE, TÜV, UL
