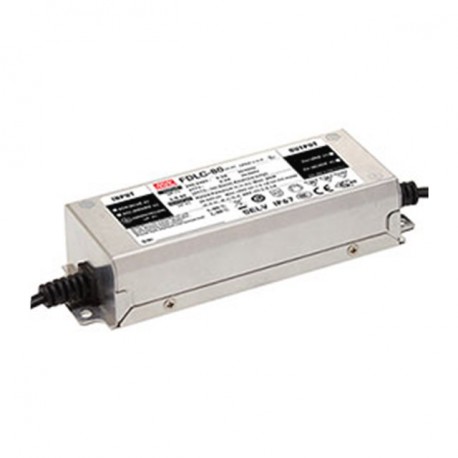

FDLC-80 MEANWELL AC-DC Single output LED driver Constant Current (CC), Input180-295VAC, Output 2.1A / 54VDC

LED driver with constant power output.

Specially designed for powering LEDs directly in a steady stream.

Format in metal box sealedIP67.

Input range180-295Vca47-63Hz.

Output in constant current1000mA.Adjustable by external potentiometer (1000-2100mA).

Maximum output power rating of between1480-2100mA.

Range of output voltage with current mode constant30 to 54Vccaccording to demand load and according to adjustment of the output current.

Power:80W.

Efficiency typical:90%.

Potentiometer:This model incorporates 1 internal potentiometer that allows us to adjust the output current between 1000 and 2100mA.

Input class I with grounding.

Factor corrector, power>0,95to 230vac at full load.

Operating temperature range of caseTcfrom-30ºCup+90ºC.

Dimensions (Length x Width x Height):151 x 53 x 31.5 mm

5 years of warranty.

Manufacturer: MEAN WELL.

The series FDLC-80 are LED drivers with constant power. Give an output constant current which can be adjusted by the potentiometer and the range of output voltage varies according to the setting of the current. In this way we can get the maximum power output while to adjust to different current values. The sources of constant power offer a wide operating range (voltage + current), allowing to use one model for different applications with different requirements of voltage and current.

This source is designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream.

This source works on a constant current when we connect the LEDs directly to have a voltage within the range of output voltage mode constant current and a working current equal to the output current. The output current can be adjusted byknob that incorporates the source itself.

The series FDLC are LED drivers, class I grounded.

With metal housing, waterproof to IP67. The series FDLC has a high efficiency designed for applications in the lighting of tunnels, decorative, aquitectónica, lighting of aquarium, etc to Comply with safety requirements at the global level for lighting.
