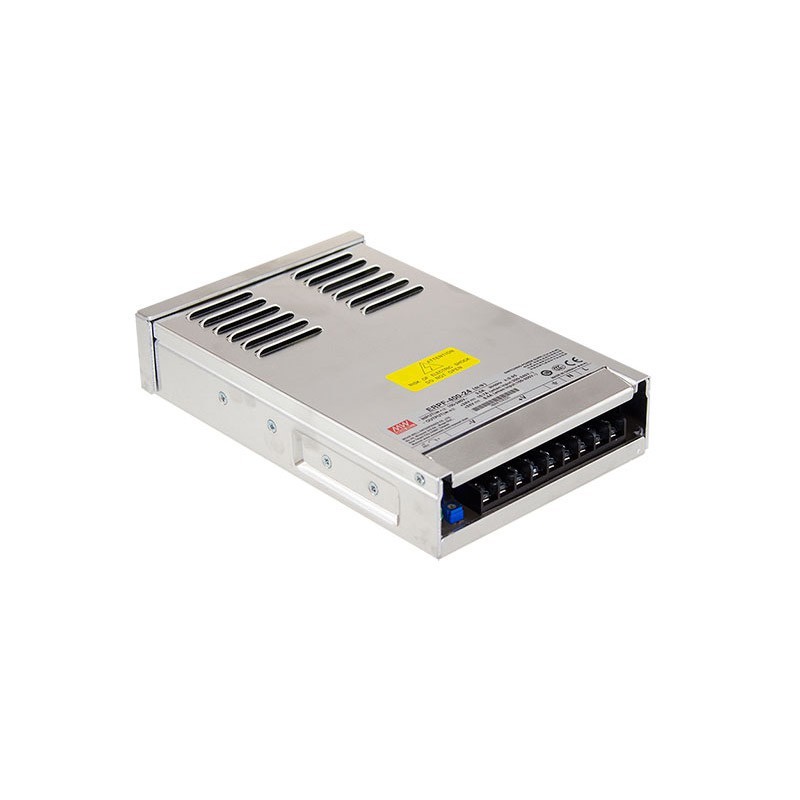

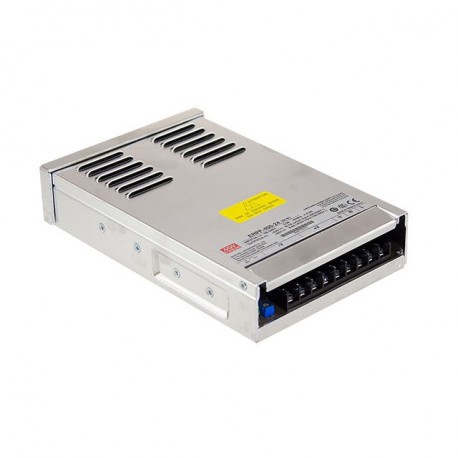

ERPF-400-24 MEANWELL AC-DC Single output power supply with PFC, Output 24VDC / 16.7A, Input range 90-264VAC

Switching power supply for LED panels.

Splash proof water in vertical installation.

Format in metal box semi-encapsulated.

Input range90-264vac47-63Hz.

Output voltage24vdc. Adjustable by potentiometer (21,6-26,4 Vdc).

Output intensityTo 16.7 To. Range of output current 0-16,7 according To the demand load.

Power:400,8 W.

Efficiency typical:90%.

Input class I with grounding.

Factor corrector, power>0,95to 230vac at full load.

Low leakage current<0.1 mA.

LED power indicator.

Protection against short circuit, over load, over voltage and temperature.

Design splash proof from water and dust.

Operating temperature range of caseTcfrom-30up+60ºC.

Dimensions (Length x Width x Height):220,4 x 130 x 48mm.

3 years of warranty.

Manufacturer: MEAN WELL.

The series ERPF are sources with a metal case of aluminum especially designed for panels of LED signage. With design semi-encapsulated splash proof from water and dust. Prepared for installation in vertical. It has a high efficiency and energy saving.Support input voltages of 300Vca for 5 seconds and use components of the highest reliability. Have a power LED.Have multiple protections (short circuit, overload, over voltage and temperature).

The series ERPF these sources are robust and reliable, with high efficiency and economic. Designed for all types of LED panels.
