EPS-120-27
MEANWELL
1
Available Ship on today

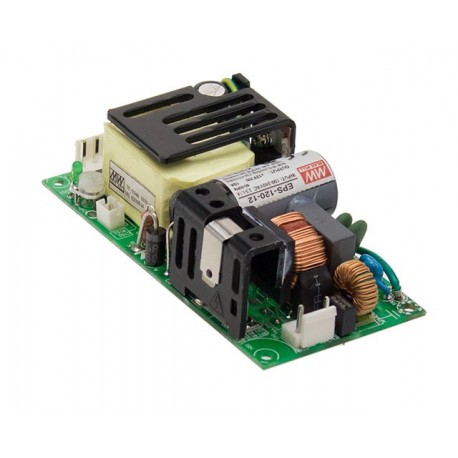

AC-DC Single output Open frame power supply, Output 27VDC / 3.15A, 12VDC 5A auxiliary output, 1U low profile
OPEN FRAME > EPS
* Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Name | EPS-120-27 |
---|---|
Long Description | Power supply in an open format(Open-Frame). Range of universal Input80-264vac47-63Hz. Output voltage27Vcc.Adjustable by potentiometer (25,6-28,4 Vdc). Output intensity3,15 without fanand4,5 A with fanexternal of 10 CFM. Range of output current 0-3,5 or 5A according to demand load. Power:85Wwithout fanand121,5 W with fanexternal. Consumption without load <0,3 W. Efficiency typical:90%. Temperature range operating case Tc from-30up+70ºC. Meets class B EMI, Electromagnetic Immunity, both systems of class I (with ground) class II (without grounding). Output extra 12V 0.5 A to power an external fan. Dimensions (Length x Width x Height) [mm]:101.6 x 50.8 x 29. 3 years of warranty. Manufacturer: MEAN WELL. Series EPS-120, are the sources of power in compact size of 4" x 2", high efficiency, low consumption without load, and low noise and ripple. Designed for industrial applications, automation, control systems, mechanical equipment, and electro-mechanical, instrumentation, and telecommunications equipment. |
Country of Origin | China |
Manufacturer | MEAN WELL |
Product type | Power supply AC/DC |
Format | Open Format |
Subformato | 4"x2" |
Applications | Industrial, Telecommunications |
Series | EPS-120 |
State | Recommended Model |
Warranty (Years) | 3,00 |
Height (mm) | Twenty nine |
Width (mm) | 50.8 |
Long/Background | 101.6 |
Type of Entry CA | Single-phase |
AC input Min | 80,00 |
AC input Max | 264,00 |
Input frequency | 50 Hz, 60 Hz |
Input connector | Plug-in |
Output voltage | 27,00 |
Power (W) | 85,00 |
Peak Power (W) | 121.5 |
Output connector | Plug-in |
Isolation (V) | 3.000,00 |
Approvals | CE, UL |
Title: | Size: | Type: |
---|---|---|
PDF CATALOG MEANWELL EN.pdf | 10 Mbytes |
