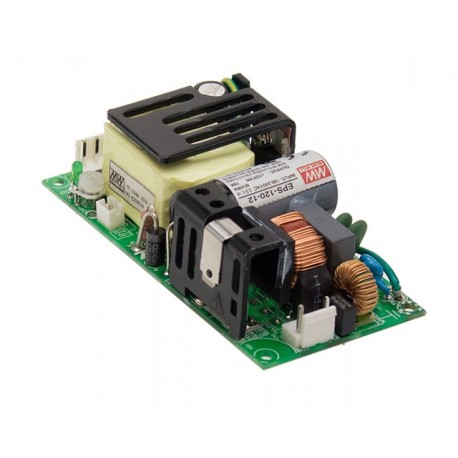

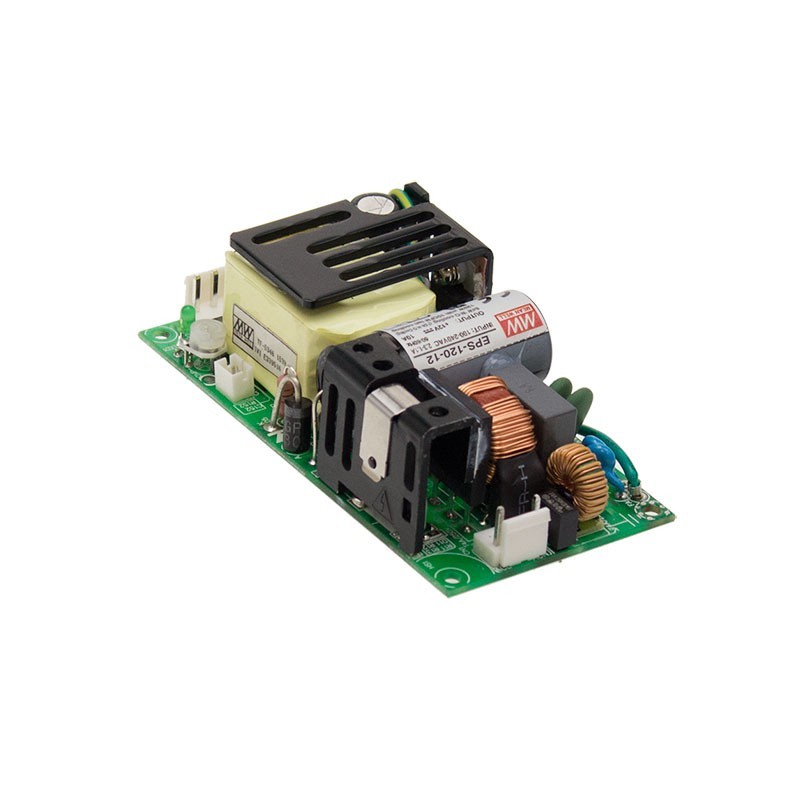

EPS-120-12 MEANWELL AC-DC Single output Open frame power supply, Output 12VDC / 7A, 12VDC 5A auxiliary outpu..
EPS-120-12
MEANWELL
AC-DC Single output Open frame power supply, Output 12VDC / 7A, 12VDC 5A auxiliary output, 1U low profile
OPEN FRAME > EPS
* Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
More info
▲| Name | EPS-120-12 |
|---|---|
| Long Description | Power supply in an open format(Open-Frame). Range of universal Input80-264vac47-63Hz. Output voltage12vdc.Adjustable by potentiometer (11,4-12,6 Vdc). Output intensity7A without fanand10A with fanexternal of 10 CFM. Range of output current 0-3,5 or 5A according to demand load. Power:84Wwithout fanand120W with fanexternal. Consumption without load <0,3 W. Efficiency typical:88%. Temperature range operating case Tc from-30up+70ºC. Meets class B EMI, Electromagnetic Immunity, both systems of class I (with ground) class II (without grounding). Output extra 12V 0.5 A to power an external fan. Dimensions (Length x Width x Height) [mm]:101.6 x 50.8 x 29. 3 years of warranty. Manufacturer: MEAN WELL. Series EPS-120, are the sources of power in compact size of 4" x 2", high efficiency, low consumption without load, and low noise and ripple. Designed for industrial applications, automation, control systems, mechanical equipment, and electro-mechanical, instrumentation, and telecommunications equipment. |
| Country of Origin | China |
| Manufacturer | MEAN WELL |
| Product type | Power supply AC/DC |
| Format | Open Format |
| Subformato | 4"x2" |
| Applications | Industrial, Telecommunications |
| Series | EPS-120 |
| State | Recommended Model |
| Warranty (Years) | 3,00 |
| Height (mm) | 29.00 |
| Width (mm) | 50.80 |
| Long/Background | 101.60 |
| Type of Entry CA | Single-phase |
| AC input Min | 80,00 |
| AC input Max | 264,00 |
| Input frequency | 50 Hz, 60 Hz |
| Input connector | Plug-in |
| Output voltage | 12,00 |
| Power (W) | 84,00 |
| Peak Power (W) | One hundred twenty |
| Output connector | Plug-in |
| Isolation (V) | 3.000,00 |
| Approvals | CE, UL |
