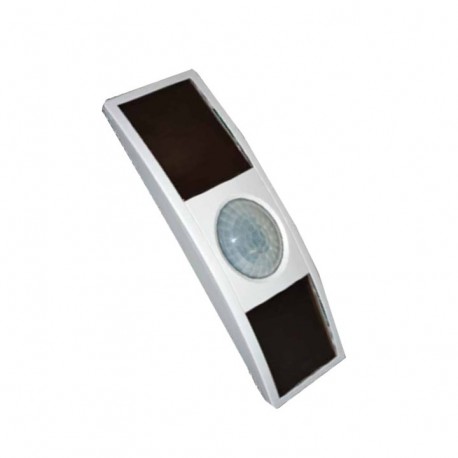

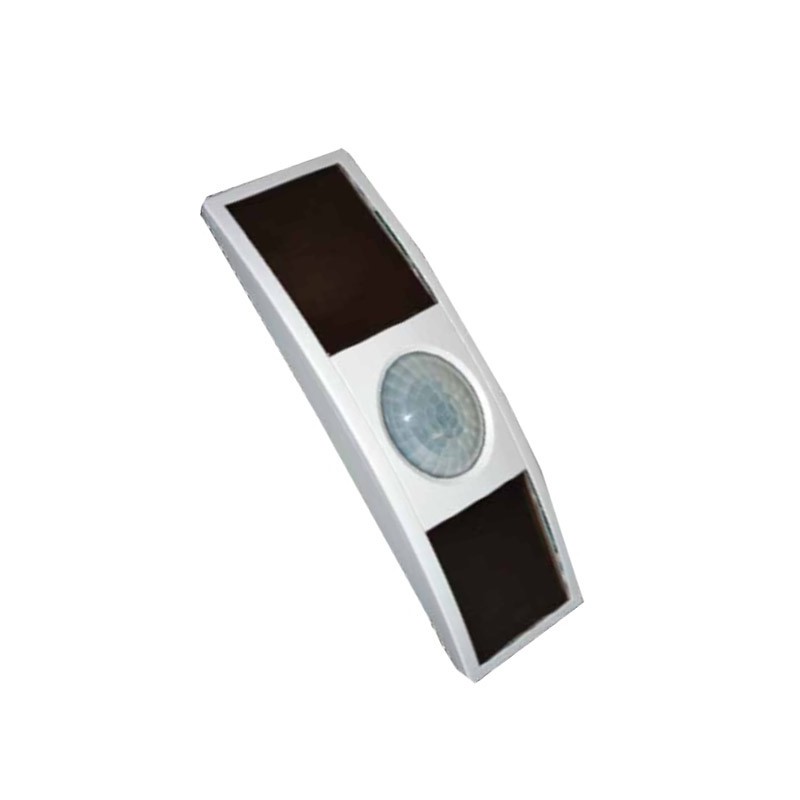

EOSCA-W-EO MEANWELL Ceiling-mount motion sensor EnOcean View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

EOSCA-W-EO MEANWELL Ceiling-mount motion sensor EnOcean

EOSCA-W-EO

MEANWELL

Ceiling-mount motion sensor EnOcean

More details


LED DRIVERS

Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

More info



NameEOSCA-W-EO
Long Description

Sensor of presence wireless.

Accessory ceiling for presence control protocols EnOcean.

The fonts LCM-EO can integrate various sensors in the system EnOcean: presence sensors, lighting, remote controls, etc, This occupancy sensor or presence is mounted on the roof, it is wireless and self-powered, which makes it one of the devices more cost-effective. Two solar cells integrated allow the accumulation of energy from indoor light to power the device and uses radio frequency technology to communicate wirelessly with other-enabled devices on the EnOcean protocol. Set-off and electrical loads when it detects that a space has been unoccupied for a period of time.

RF communications: 868.

Transmission range: 80ft. (25m).

Interval of transmission of motion: 2 minutes.

Dimensions (Length x Width x Height):160 x 60 x 37mm.

3 years of warranty.

Manufacturer: MEAN WELL.

With this sensor in combination with the LED drivers series LCM-EO we can turn on when it detects the presence of any person. Has a gan sensitivity so that even though we move a little we will continue to discover, although you can also adjust level of sensitivity more low. We can set the power off time after the detection of a person as well as the level of power or even a level dim instead of off when not detect anyone. This sensor is ideal for corridors or jobs. We can save the power consumption, and only illuminate when necessary. You can synchronize multiple sensors with the drivers LCM-EO for detection at multiple points of the stairs or corridors.

Its solar panel allows it to work without the need of battery whenever you are near a light source like a window. You can also add a button type battery additional for areas that are not lit or in low light.

Country of OriginChina
StockYes
ManufacturerMEAN WELL
Product typeSensor of Presence
SeriesEOSCA-W
Warranty (Years)3,00
FormatInstallation in Ceiling
SubformatoIP20
Height (mm)37.00
Width (mm)60.00
Long/Background160.00

Datasheet - PDF
