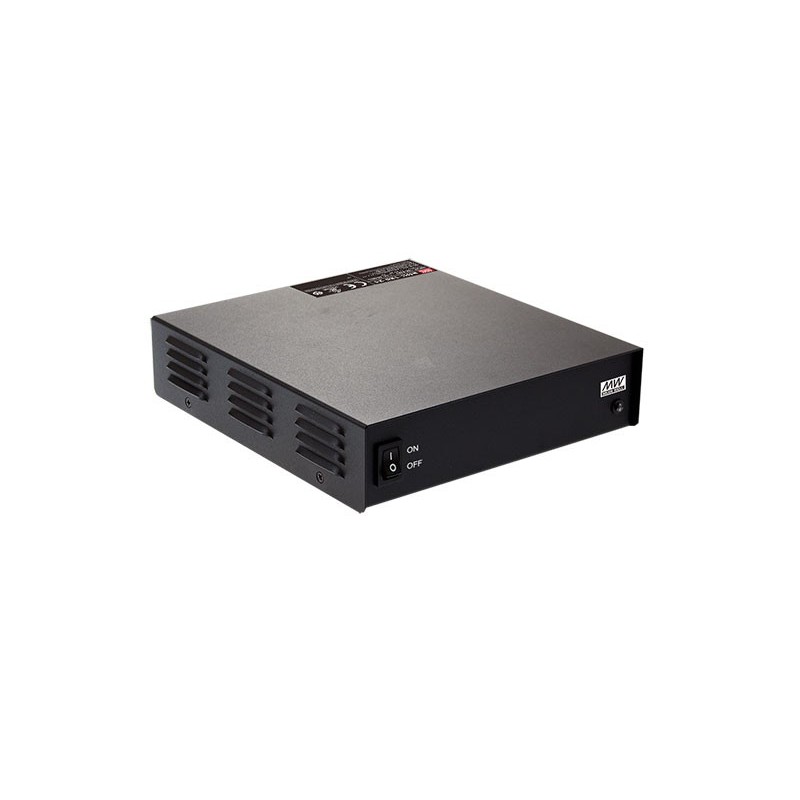

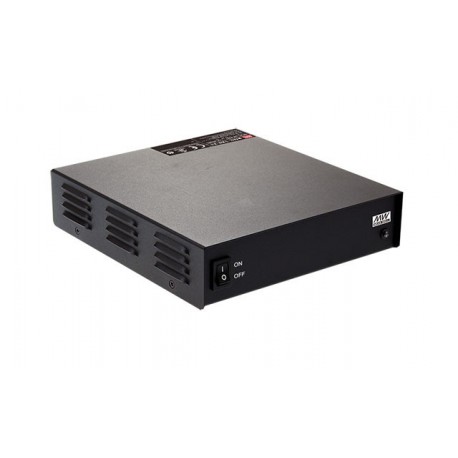

ENP-120-48 MEANWELL AC-DC Single output power supply with PFC, 3 stage charging, Universal AC input, Output ..
ENP-120-48
MEANWELL
AC-DC Single output power supply with PFC, 3 stage charging, Universal AC input, Output 55.2VDC / 2.7A
CHARGERS
Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
Best sellers
▲More info
▲| Name | ENP-120-48 |
|---|---|
| Long Description | Power supply format desktop with PFC function. Format plastic box. Range of universal input90-264vac47-63Hz. Output voltage55,2 Vdc.Range of voltage output from 47.5-58,8 V according to demand load. Output intensity2.2 To. Range of output current 0-2,2 according To the demand load. Power:121W. Efficiency typical:To 81.5%.(Level Vl). Factor corrector of a power >0,98 at 230vac full load. Working temperature: from-30up+70 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift. Dimensions (Length x Width x Height) [mm]:192 x 178 x 45.5. 3 years of warranty. Manufacturer: MEAN WELL. The series ENP are sources switched in format desktop with input connector europeanIEC320-C14and output connector AC universal.
|
| Country of Origin | China |
| Manufacturer | MEAN WELL |
| Product type | Power supply AC/DC |
| Format | Desktop |
| Applications | Industrial, Telecommunications |
| Series | ENP-120 |
| Warranty (Years) | 3,00 |
| Height (mm) | 45.50 |
| Width (mm) | 178.00 |
| Long/Background | 192.00 |
| Type of Entry CA | Single-phase |
| AC input Min | 90,00 |
| AC input Max | 264,00 |
| Input frequency | 50 Hz, 60 Hz |
| Input connector | IEC 320-C14 |
| Output voltage | 55,20 |
| Power (W) | 121,00 |
| Peak Power (W) | 151.8 |
| Output connector | Screw-Type |
| Fan | Yes |
| Isolation (V) | 3.000,00 |
| Approvals | CE, UL |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LED MEANWELL EN.pdf | 7 Mbytes |
|
| PDF CATALOGUE POWER SUPPLY MEANWELL EN.pdf | 9 Mbytes |
|
