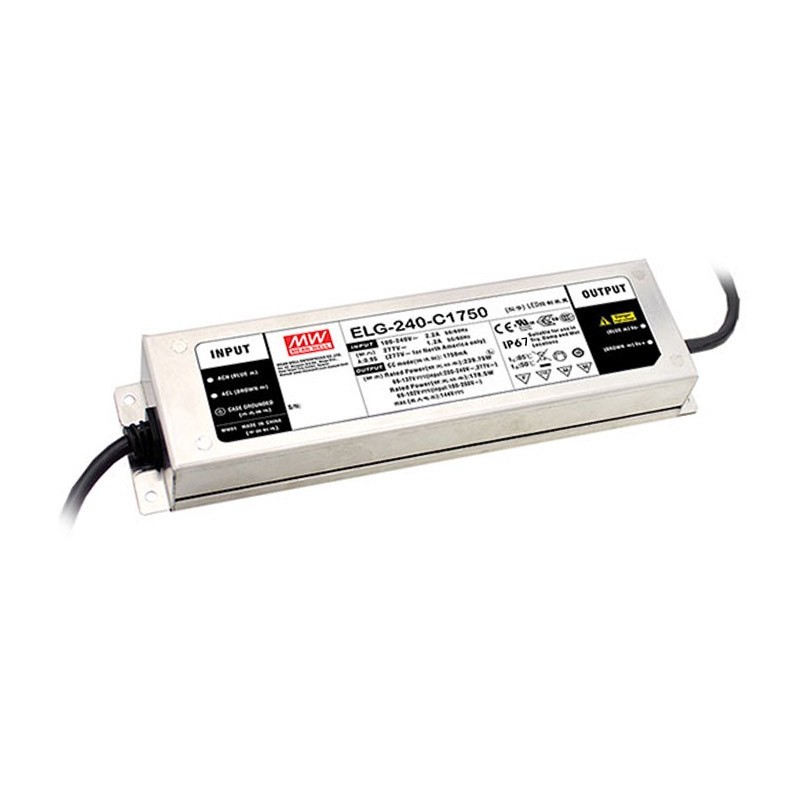

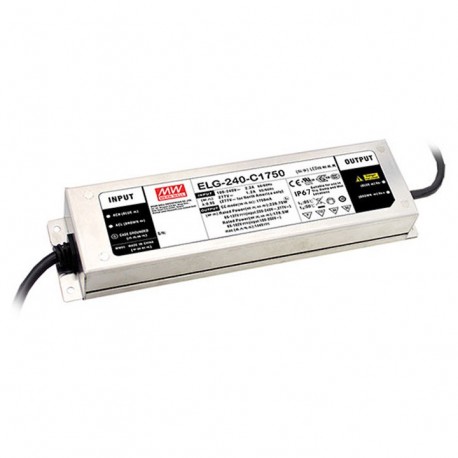

ELG-240-C2100 MEANWELL AC-DC Single output LED driver Constant current (CC) with built-in PFC, Output 115VDC..

LED driver.

Specially designed for powering LEDs directly in a steady stream.

Format in metal box sealedIP67.

Input range100-305Vca47-63Hz.

Output in constant current2,1 A.

Range of output voltage with current mode constant57 to 115Vccaccording to demand load.

Power:241,5 W.

Efficiency typical:93%.

Input class I with grounding.

Factor corrector, power>0.95to 230vac at full load.

Consumption without load <0.5 W.

Operating temperature range of caseTcfrom-40ºCup+85ºC.

Dimensions (Length x Width x Height):244 x 71 x 37.5 mm

5 years of warranty.

Manufacturer: MEAN WELL.

This source is designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream.

This source works on a constant current when we connect the LEDs directly to have a voltage within the range of output voltage mode constant current and a working current equal to the output current.

The series ELG are LED drivers, class I grounded. The own metal box serves to connect the ground of security. You can ask for a version with ground cable from the input (3 wires) by adding-3Y at the end of the model. For example ELG-240-C2100-3Y.

With metal housing, waterproof to IP67. The series ELG has a high efficiency designed for applications of public lighting, architectural, outdoor or any application of LED lighting need a driver of high quality. Approved HL Class I Division 2 for ex-zones in the US.
