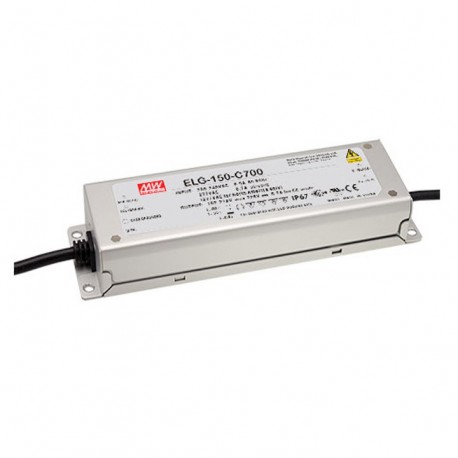

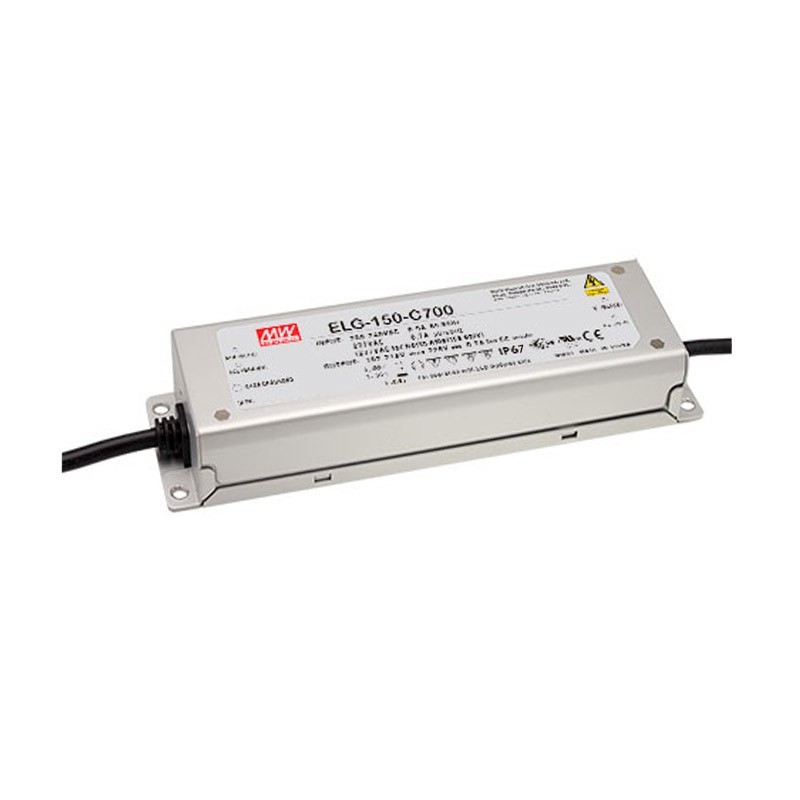

ELG-150-C500DA-3Y MEANWELL AC-DC Single output LED driver Constant current (CC) with built-in PFC, 3 wire in..

LED driver dimmable.

Specially designed for powering LEDs directly in a steady stream.

Format in metal box sealedIP67.

Input range100-305Vca47-63Hz.

Output in constant current500mA.

Range of output voltage with current mode constant150 to 300Vccaccording to demand load.

Power:150W.

Efficiency typical:92%.

Regulation DALI0% to 100% of the output intensity. Certificate to DALI.

Input class I with grounding. Input with 3 wires for ground.

Factor corrector, power>0.95to 230vac at full load.

Consumption without load <0.5 W.

Operating temperature range of caseTcfrom-40ºCup+90ºC.

Dimensions (Length x Width x Height):219 x 63 x 35.5 mm

5 years of warranty.

Manufacturer: MEAN WELL.

This source is designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream.

This source works on a constant current when we connect the LEDs directly to have a voltage within the range of output voltage mode constant current and a working current equal to the output current.

The series ELG are LED drivers, class I grounded. This version 3 has a ground wire on the input (3 wire). You can order versions in that it uses the chassis of the source as a connection to the earth, removing from the end of the model -3Y. For example ELG-150-C500DA.

With metal housing, waterproof to IP67. The series ELG has a high efficiency designed for applications of public lighting, architectural, outdoor or any application of LED lighting need a driver of high quality. Approved HL Class I Division 2 for ex-zones in the US.

Compatible with any system DALI.
